1978 Kawasaki KZ400-C1 Fuel Tank Diagram

← All diagrams

Find the part on the Fuel Tank diagram for your 1978 Kawasaki KZ400-C1, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

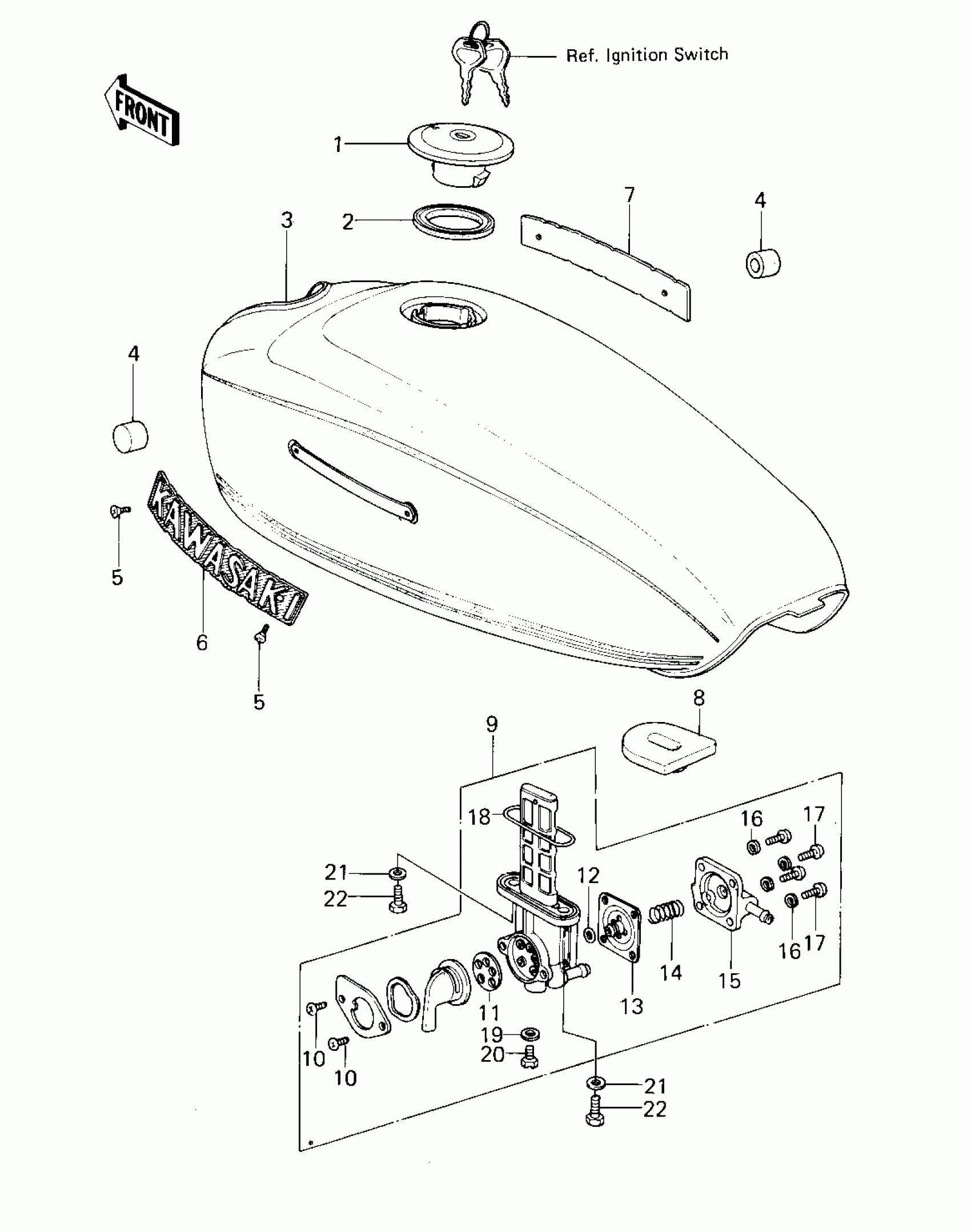

1978 Kawasaki KZ400-C1 Fuel Tank Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

CAP ASSY,TANK

51048-1001

1
Out of stock

2

GASKET,TANKCAP

11009-1053

1
Out of stock

3

TANK-FUEL,L.COPPER

51001-1004-A2

1
Out of stock

4

DAMPER,FUEL TANK

92075-101

1
Out of stock

5

SCREW-CSK-CROS

221C0306

1
Out of stock

6

EMBLEM,FUEL TANK,L.H

56014-1013

1
Out of stock

7

EMBLEM,FUEL TANK,R.H

56014-1014

1
Out of stock

8

DAMPER,FUEL TANK

92075-295

1
Out of stock

9

TAP ASSY,FUEL

51023-1030

1
Out of stock

10

SCREW PAN HEAD 4X8

220B0408

1
Out of stock

11

GASKET,TAP VALVE

11009-1068

1
Out of stock

12

"0" RING,DIAPHRAGM

92055-1068

1
Out of stock

13

DIAPHRAGM ASSY,TAP

43028-1009

1
Out of stock

14

SPRING,DIAPHRAGM

92081-1054

1
Out of stock

15

COVER ASSY,TAP DIAPRM

16146-1006

1
Out of stock

16

WASHER SPRING 4MM

461F0400

1
Out of stock

17

SCREW PAN HEAD 4X10

220B0410

1
Out of stock

18

"O" RING,TAP FLANGED

43058-1006

1
Out of stock

19

GASKET,DRAIN BOLT

11009-1045

1
Out of stock

20

BOLT,DRAIN

92001-1089

1
Out of stock

21

WASHER-PLAIN

92022-183

1
Out of stock

22

BOLT,6X20

92001-1091

1
Out of stock
