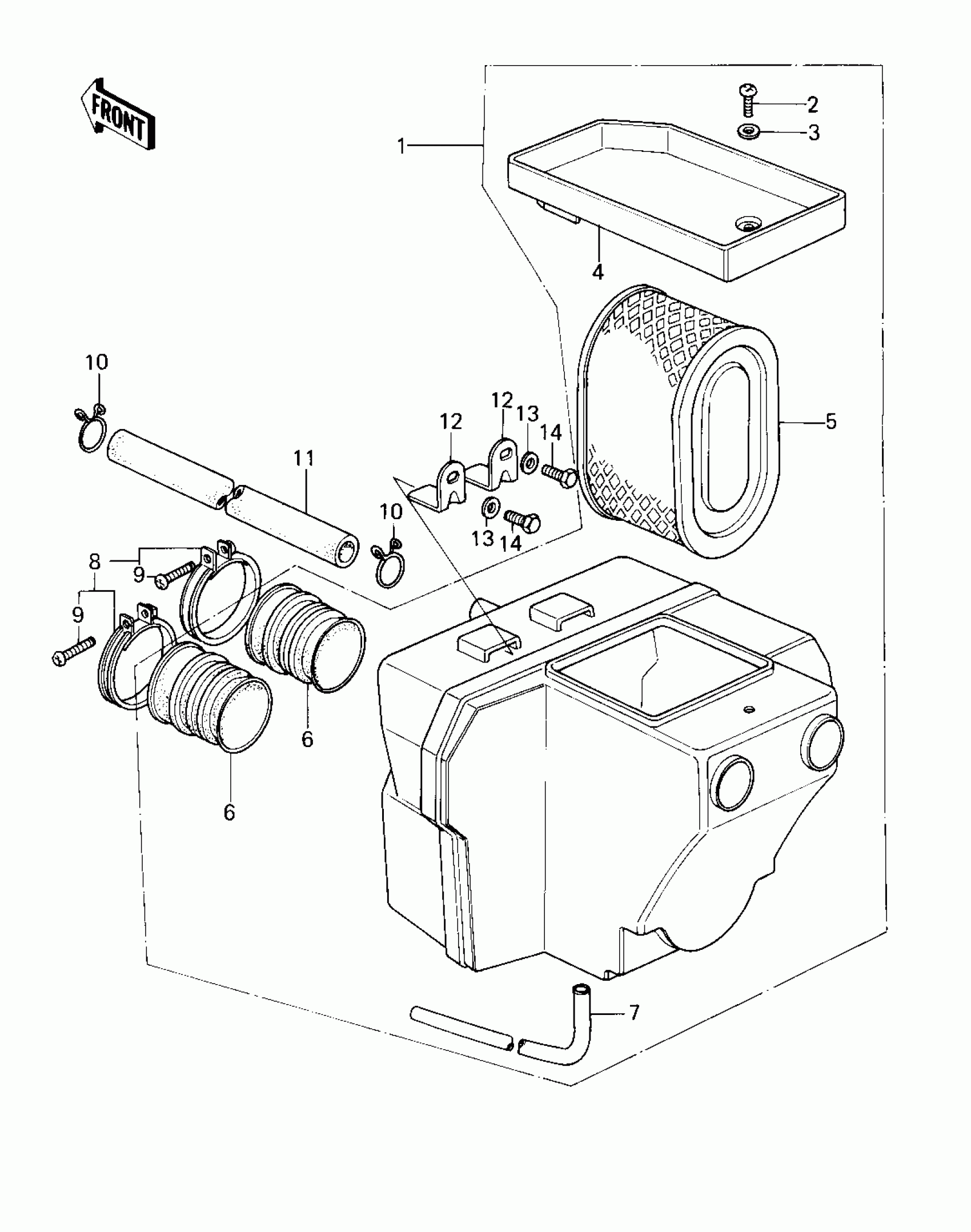

Kawasaki KZ400-C1 AIR CLEANER Diagram

#

Description

Price

1

AIR CLEANER ASSY

11010-1066

Unavailable

2

SCREW-PAN-CROS,6X16

220B0616

Unavailable

3

WASHER-PLAIN-SMALL,6MM

410B0600

$1.03

4

CAP,AIR CLEANER

11012-1004

Unavailable

6

DUCT,AIR FILTER

14073-5001

Unavailable

7

TUBE-VINYL 6X300

700Q06300

Unavailable

8

CLAMP

92037-1006

$16.61

9

SCREW PAN HEAD 5X30

220B0530

Unavailable

10

CLAMP,TUBE

92037-213

$3.29

11

TUBE,BREATHER,270M/M

92059-1003

Unavailable

12

BRACKET,AIR CLEANER

11034-1058

Unavailable

13

WASHER PLAIN 8MM

410B0800

Unavailable

14

BOLT SMALL

114G0812

Unavailable
