1978 Kawasaki KZ400-C1 Carburetor Assy Diagram

← All diagrams

Find the part on the Carburetor Assy diagram for your 1978 Kawasaki KZ400-C1, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

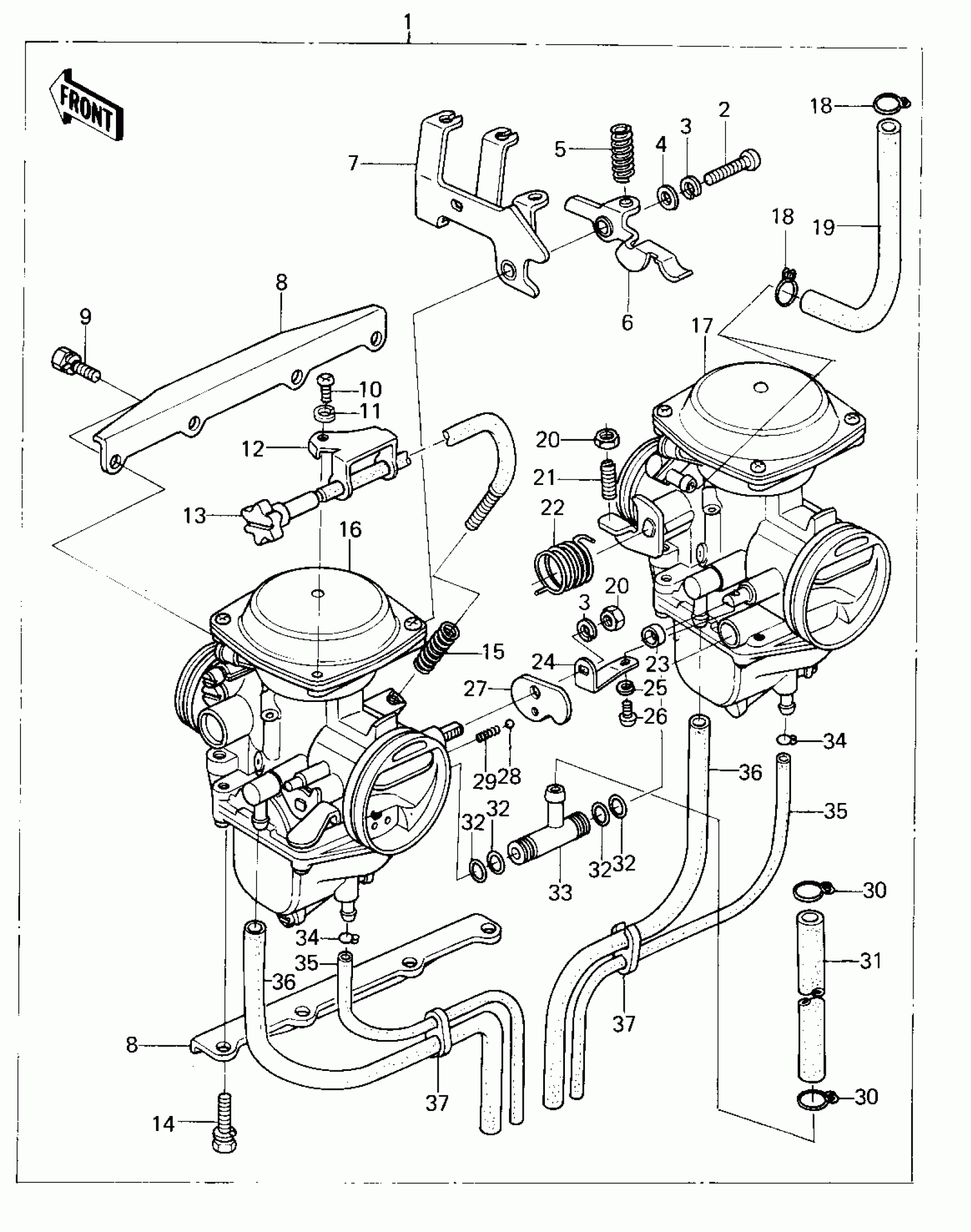

1978 Kawasaki KZ400-C1 Carburetor Assy Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

CARBURETOR ASSY

16001-1334

1
Out of stock

2

SCREW-PAN-CROS,5X25

220B0525

1
Out of stock

3

WASHER SPRING 5MM

461F0500

1
Out of stock

4

WASHER,PLAIN

16039-027

1
Out of stock

5

SPRING

92081-1003

1
Out of stock

6

ROCKER ARM

11034-1009

1
Out of stock

7

BRACKET,THR.CBL

11034-1008

1
Out of stock

8

PLATE,STAY

16065-1012

1
Out of stock

9

SCREW,6X16

92009-1129

1
Out of stock

10

SCREW PAN HEAD 4X10

220B0410

1
Out of stock

11

WASHER SPRING 4MM

461F0400

1
Out of stock

12

BRACKET,STOP SCREW

11034-1202

1
Out of stock

13

SCREW-THROTTLE STOP

16021-1007

1
Out of stock

14

BOLT,6X22

92009-1006

1
Out of stock

15

SPRING,STOP SCREW

92081-1062

1
Out of stock

16

CARBURETOR,L.H.

16001-1064

1
Out of stock

17

CARBURETOR,R.H.

16001-1065

1
Out of stock

18

CLAMP,FUEL HOSE

92037-1040

1
Out of stock

19

TUBE,5.3X10.5X200

92059-1001

1
Out of stock

20

NUT-HEX

311B0500

1
Out of stock

21

SCREW,SLOTTED

16021-1002

1
Out of stock

22

SPRING

92081-1063

1
Out of stock

23

COLLAR,CHOKE LEVER

16073-1001

1
Out of stock

24

BRACKET,CHOKE LEVER

11034-1203

1
Out of stock

25

WASHER SPRING 3MM

461F0300

1
Out of stock

26

SCREW-PAN-CROS,3X6

220B0306

1
Out of stock

27

CAM,CHOKE LINK

13169-1015

1
Out of stock

28

BALL,STEEL,1/8"

600A0400

1
Out of stock

29

SPRING

92081-1004

1
Out of stock

30

CLAMP,FUEL TUBE

92037-1075

1
Out of stock

31

TUBE,FUEL,7.3X12.5X200

92059-1029

1
Out of stock

32

RING-O

92055-1004

1
Out of stock

33

FITTING,FUEL TUBE

92005-1033

1
Out of stock

34

CLAMP,TUBE

92037-1142

1
Out of stock

35

TUBE,3.5X6.5X330

92059-111

1
Out of stock

36

TUBE,4.5X8X380

92059-110

1
Out of stock

37

CLAMP,OVERFLOW

92037-1067

1
Out of stock
