1980 Kawasaki KZ250 Clutch Diagram

← All diagrams

Find the part on the Clutch diagram for your 1980 Kawasaki KZ250, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

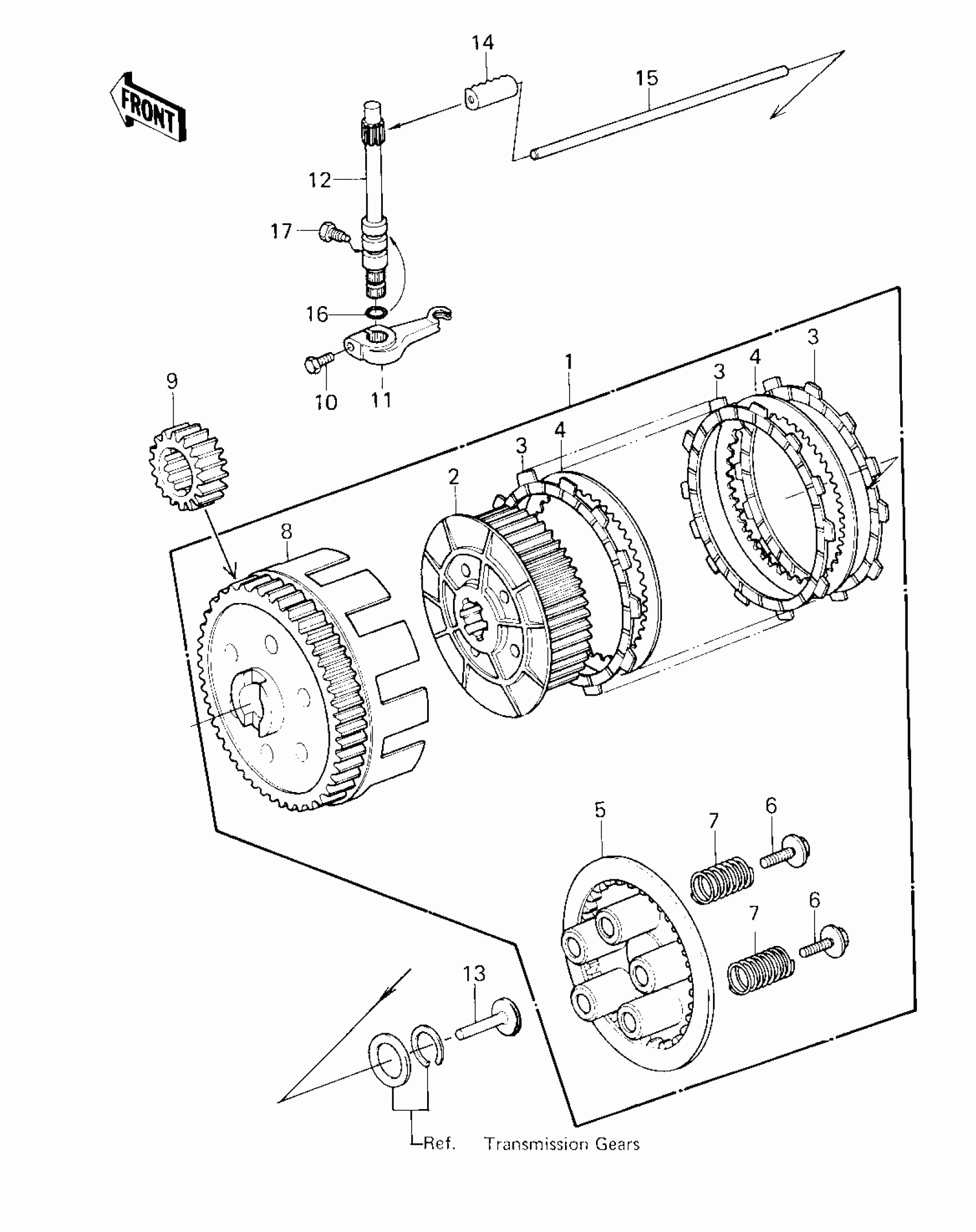

1980 Kawasaki KZ250 Clutch Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

CLUTCH-ASSY

13081-1046

1
Out of stock

2

HUB,CLUTCH

13087-1001

1
Out of stock

3

PLATE,CLUTCH FRICTION

13088-1008

1
Out of stock

4

PLATE-CLUTCH,T=1.6

13089-013

1
Out of stock

5

PLATE,CLUTCH OPERATNG

13187-1005

1
Out of stock

6

BOLT,FLANGED,6X18

92001-1066

1
Out of stock

7

SPRING,CLUTCH

92081-083

1
Out of stock

8

HOUSING,CLUTCH

13095-1015

1
Out of stock

9

GEAR,PRIMARY

13121-035

1
Out of stock

10

BOLT-UPSET

112G0618

1
Out of stock

11

PUSHER-CLTCH SPRG PLT

13116-016

1
Out of stock

12

SHAFT,CLUTCH RELEASE

13106-006

1
Out of stock

13

PUSHER-CLTCH SPRG PLT

13116-016

1
Out of stock

14

ROD-PUSH,CLUTCH,6T

13116-1040

1
Out of stock

15

ROD,CLUTCH PUSH,LONG

13116-1002

1
Out of stock

16

O RING,10MM

670B2010

1
Out of stock

17

BOLT,CLUTCH RELEASE

92003-130

1
Out of stock
