1980 Kawasaki KZ250 Transmission Diagram

← All diagrams

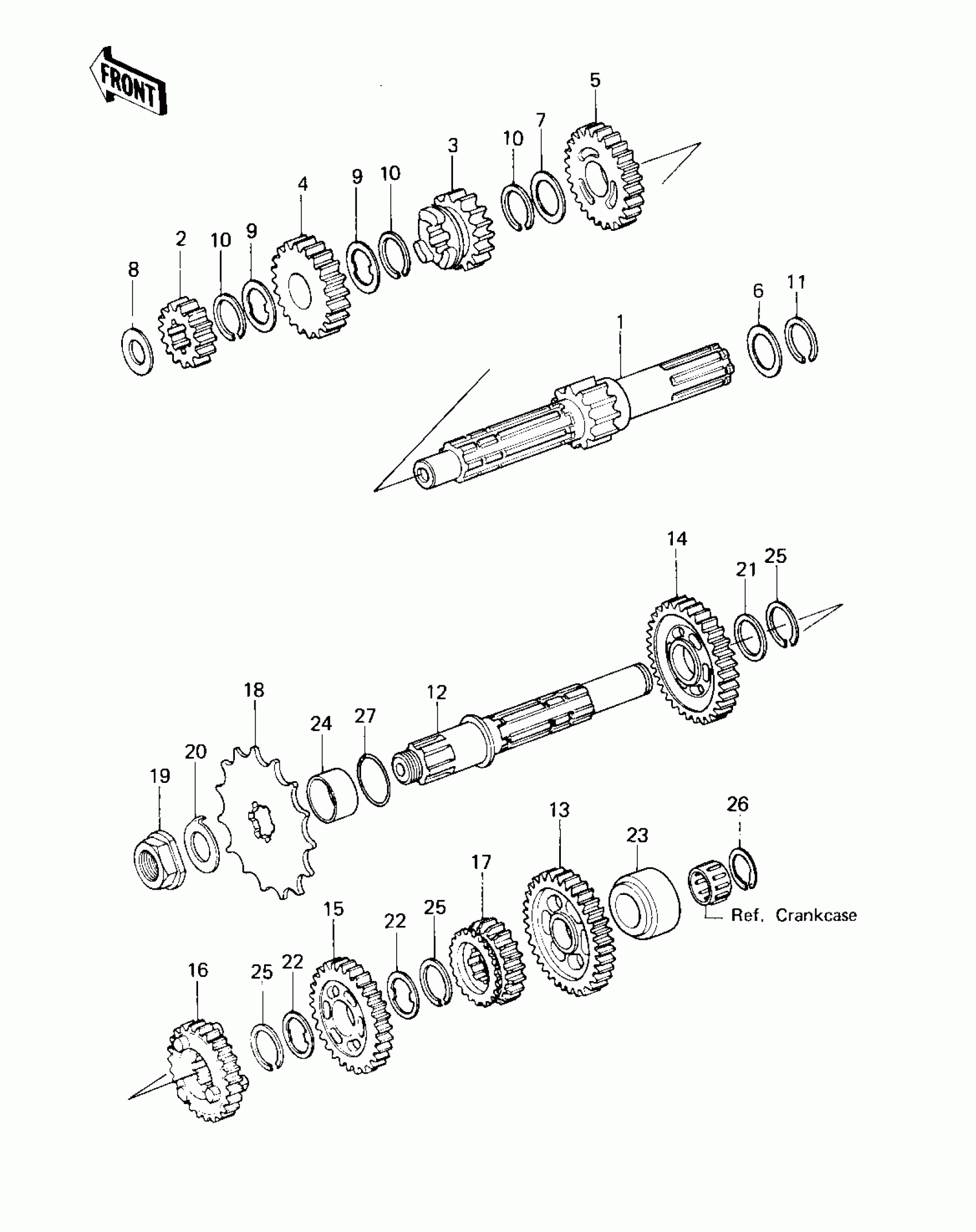

Find the part on the Transmission diagram for your 1980 Kawasaki KZ250, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1980 Kawasaki KZ250 Transmission Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

SHAFT,DRIVE

13127-1029

1
Out of stock

2

2ND GEAR,DRIVE SHAFT

13129-1022

1
Out of stock

3

GEAR,INPUT,3RD,20T

13129-1284

1
Out of stock

4

4TH GEAR,DRIVE SHAFT

13134-026

1
Out of stock

5

TOP GEAR,DRIVE SHAFT

13136-057

1
Out of stock

6

WASHER,20.5X30X1,STEEL

92022-112

1
Out of stock

7

WASHER,22.3X27X0.5

92022-198

1
Out of stock

8

WASHER,THRUST,15MM

92022-279

1
Out of stock

9

WASHER,TOOTHED,22.5X27X0.5

92024-039

1
Out of stock

10

RING-SNAP,20X25.5X1.2

92033-025

1
Out of stock

11

RING-SNAP,18MM

92033-029

1
Out of stock

12

SHAFT,OUTPUT

13128-1007

1
Out of stock

13

LOW GEAR,OUTPUT SHAFT

13129-058

1
Out of stock

14

2ND GEAR,OUTPUT 26T

13131-044

1
Out of stock

15

3RD GEAR,OUTPUT SHAFT

13133-044

1
Out of stock

16

GEAR,OUTPUT 4TH,21T

13129-1285

1
Out of stock

17

TOP GEAR,OUTPUT SHAFT

13137-037

1
Out of stock

18

SPROCKET-OUTPUT,15T

13144-069

1
Out of stock

19

NUT,LOCK,16M/M

92015-1013

1
Out of stock

20

WASHER,LOCK

92022-1017

1
Out of stock

21

WASHER,22.3X27X0.5

92022-198

1
Out of stock

22

WASHER,TOOTHED,22.5X27X0.5

92024-039

1
Out of stock

23

SPACER,DRIVE SHAFT

92026-1061

1
Out of stock

24

COLLAR,ENGINE SPROCKT

92027-287

1
Out of stock

25

RING-SNAP,20X25.5X1.2

92033-025

1
Out of stock

26

RING-SNAP

92033-032

1
Out of stock

27

RING-O,17.5X1.5

92055-022

1
Out of stock
