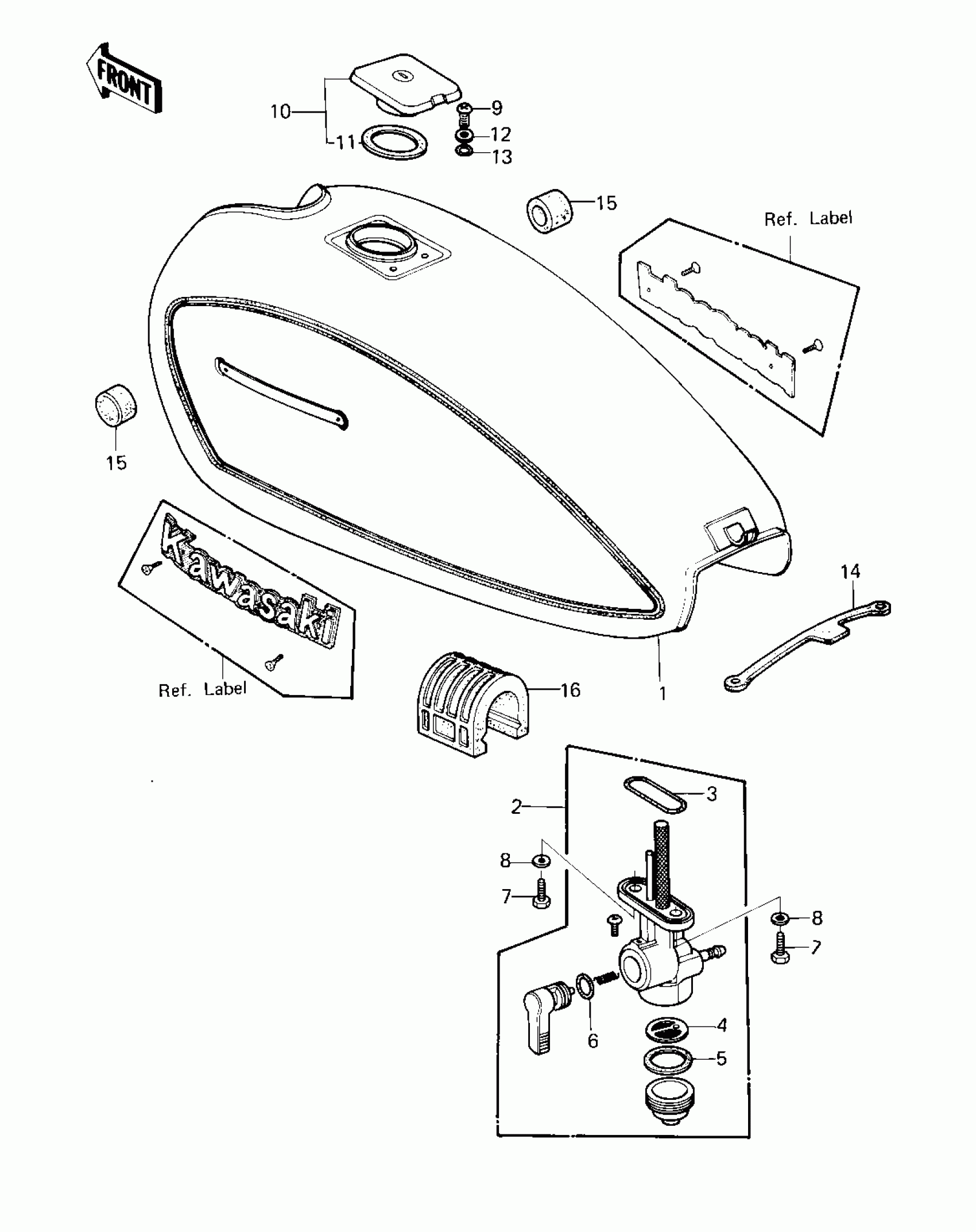

Kawasaki KZ250 FUEL TANK ('80 D1) Diagram

#

Description
Price

1

TANK-FUEL,C.P.RED

51001-1039-A5

$741.22

1

TANK-FUEL,L.D.BLUE

51001-1039-7Z

Unavailable

2

TAP ASSY FUEL

51023-1051

$78.34

3

RING,TAP FLANGED

51039-003

$4.71

4

FILTER,FUEL TAP

14043-1002

$4.03

5

GASKET,FUEL TAP CUP

11009-1013

$3.71

6

O RING,10MM

670B2010

$1.13

7

BOLT,6X20

92001-1091

$3.04

8

WASHER-PLAIN

92022-183

$2.99

9

SCREW PAN HEAD 5X10

220B0510

Unavailable

10

CAP ASSY TANK

51048-1018

Unavailable

11

GASKET,FUEL TANK CAP

11009-1051

$9.09

12

WASHER,5.3X10X0.8

92022-1038

$2.76

13

RING-O

92055-1023

$3.04

14

BAND,FUEL TANK

92072-042

$11.53

15

DAMPER,FUEL TANK

92075-101

$4.67

16

DAMPER RUBBER,FL TNK

92075-215

Unavailable
