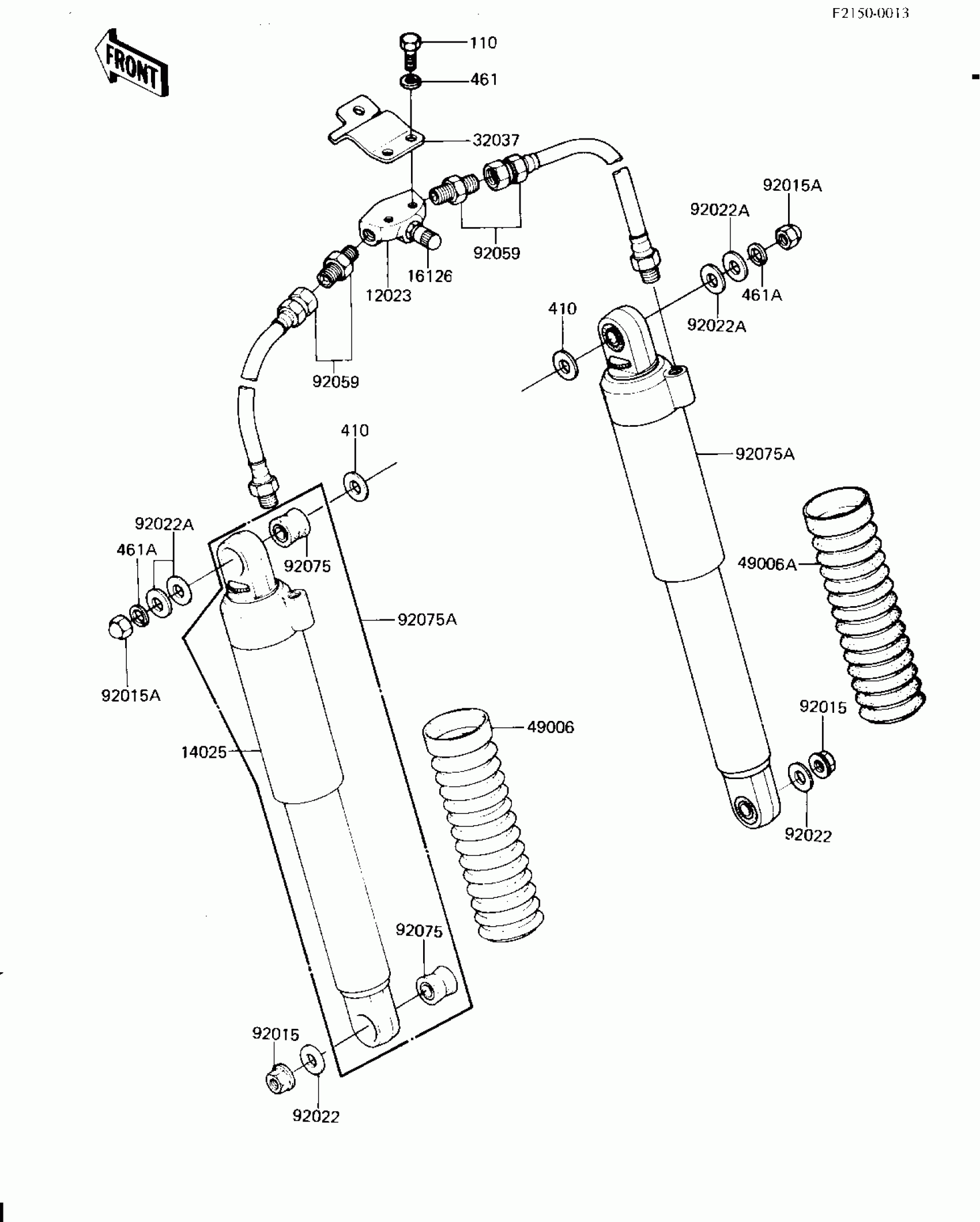

Kawasaki KZ1300-A4 SHOCK ABSORBERS Diagram

Description

Price

12023

HOLDER-VALVE,AIR

12023-1012

Unavailable

14025

COVER,DAMPER,RR

14025-1298

Unavailable

16126

VALVE,AIR

16126-1052

$31.36

32037

BRACKET-SHCKBSRBR,RR

32037-1138

Unavailable

49006

BOOT,DAMPER

49006-1155

$43.81

49006A

BOOT,DAMPER

49006-1155

$43.81

92015

NUT,FLANGED,10MM

92015-1415

$3.60

92015A

NUT,CAP,12MM

92020-014

$7.52

92022

WASHER,10.5X30X2.3

92022-1193

$7.42

92022A

WASHER,12.4X28X2.3

92022-1239

$3.34

92059

TUBE

92059-1168

$55.22

92075

DAMPER,SHOCKABSORBER

92075-1141

$14.14

92075A

SHOCK ABSORBER,REAR

92075-1294

$417.80

110

BOLT-UPSET 6X14

112B0614

Unavailable

410

WASHER-PLAIN-SMALL,14MM

410B1400

Unavailable

461

WASHER SPRING 6MM

461F0600

Unavailable

461A

WASHER-SPRING,12MM

461F1200

Unavailable
