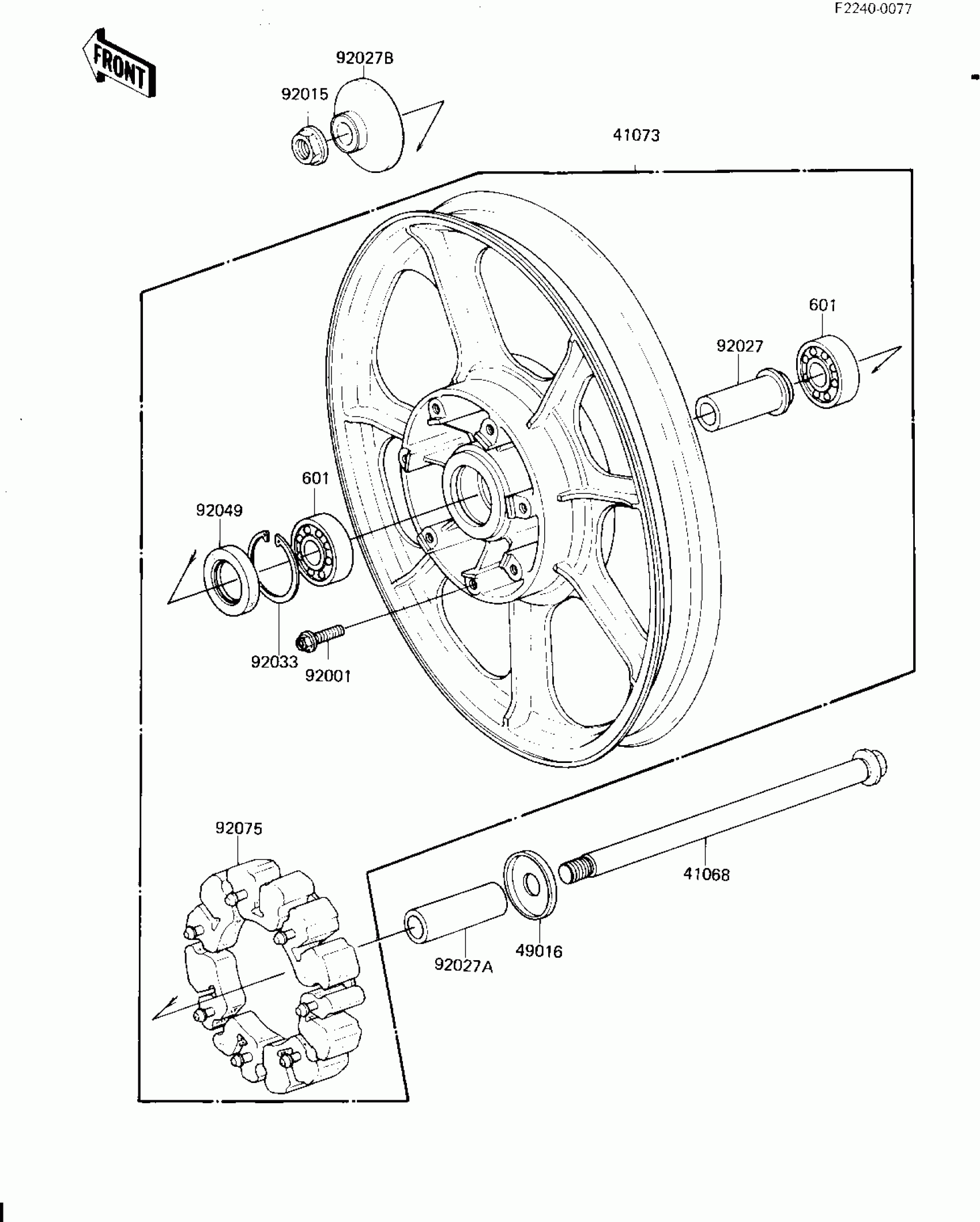

Kawasaki KZ1300-A4 REAR WHEEL/HUB Diagram

Description

Price

41068

AXLE,REAR

41068-1017

$100.98

41073

SOLID WHEEL ASSY,REAR

41073-1024

$507.68

49016

COVER-SEAL

49016-1019

$8.53

92001

BOLT,FLANGED,8X28

92001-1095

$5.71

92015

NUT,FLANGED,18MM

92015-2186

$17.39

92027

COLLAR

92027-1124

Unavailable

92027A

COLLAR

92027-1126

$32.40

92027B

COLLAR,FRONT AXLE

92027-1127

Unavailable

92033

RING-SNAP,52MM

92033-1043

$6.15

92049

OIL SEAL

92049-1021

Unavailable

92075

SHOCK DAMPER,REAR HUB

92075-1098

Unavailable

601

BALL BEARING,#6304Z

601B6304Z

Unavailable
