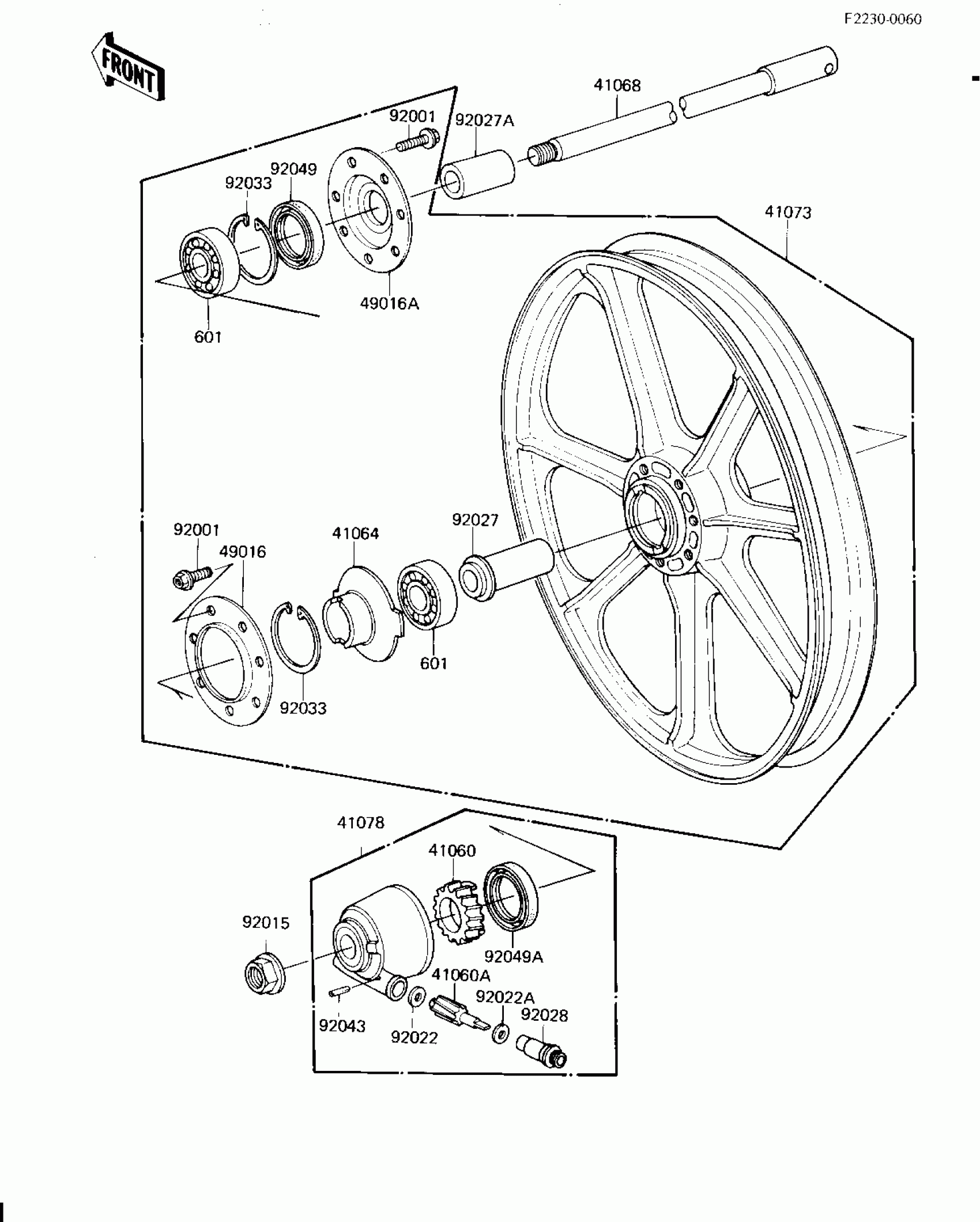

Kawasaki KZ1300-A4 FRONT WHEEL/HUB Diagram

#

Description
Price

41060

GEAR-METER SCREW,26T

41059-026

$43.35

41060A

PINION,SPEEDOMETER

41060-1021

Unavailable

41064

RECEIVER,SPEEDOMETER

41064-1003

Unavailable

41068

AXLE,FRONT

41068-1016

$80.46

41073

SOLID WHEEL ASSY,FRON

41073-1023

$776.04

41078

GEAR BOX ASSY

41078-1008

$132.43

49016

DUST COVER,R.H

49016-1018

Unavailable

49016A

DUST COVER,R.H

49016-1018

Unavailable

92001

BOLT,FLANGED,8X28

92001-1095

$5.71

92015

NUT,16MM

92015-1041

$12.17

92022

WASHER,5.1X9X0.4

41063-001

$4.17

92022A

WASHER,5.1X9X0.4

41063-001

$4.17

92027

COLLAR,FRONT HUB BEAR

92027-1123

$16.29

92027A

COLLAR,FRONT AXLE

92027-1125

$19.78

92028

BUSHING,SPEEDOMETER

92028-1045

Unavailable

92033

RING-SNAP,47MM

92033-1042

$3.22

92043

PIN,SPRING

41082-001

$3.53

92049

OIL SEAL,N0K AE1351EO

92049-1008

$16.47

92049A

SEAL-OIL,BJN30427-C3

92049-1057

$7.08

601

BEARING BALL #6303Z

601B6303Z

$23.03
