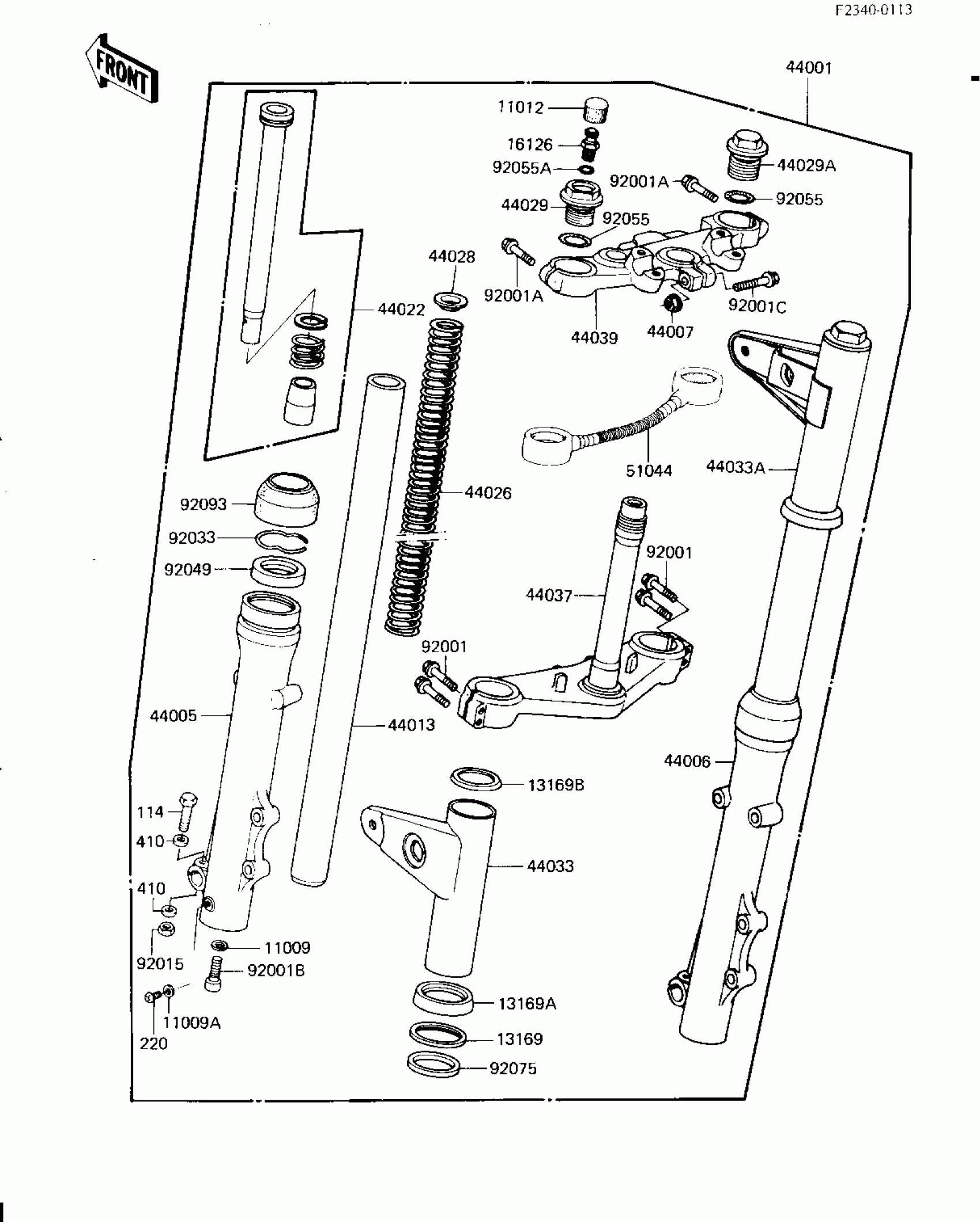

Kawasaki KZ1300-A4 FRONT FORK Diagram

#

Description
Price

11009

GASKET,FORK CYLINDER BOLT

11009-1127

$3.95

11009A

GASKET,FORK DRAIN PLUG

44045-002

$3.95

11012

CAP,AIR VALVE

11012-1241

Unavailable

13169

GUIDE,FORK COVER DMPE

13169-1154

Unavailable

13169A

GUIDE,FORK COVER,LOWE

13169-1163

Unavailable

13169B

GUIDE,FORK COVER,UPER

13169-1164

Unavailable

16126

VALVE,AIR

16126-1052

$31.36

44001

FORK-FRONT

44001-1267

$1,156.08

44005

TUBE,LH,FORK OUTER

44005-1043

$553.77

44006

TUBE,RH,FORK OUTER

44006-1043

$362.06

44007

NUT,8M/M

44007-1002

Unavailable

44013

TUBE FORK INNER

44013-1057

$418.96

44022

CYLINDER-FORK

44022-1029

$118.54

44026

SPRING,FORK

44026-1028

$78.03

44028

GUIDE-FORK SPRING

44028-1003

Unavailable

44029

CAP FORK TOP RH

44029-1023

$47.24

44029A

CAP FORK TOP LH

44029-1024

$55.47

44033

COVER FORK LH

44033-1063

$124.02

44033A

COVER FORK RH

44033-1064

$126.78

44037

STEM,STEERING

44037-1016

$506.31

44039

HEAD,STEERING STEM

44039-1013

$357.90

51044

HOSE ASSY FRONT FORK

51044-1005

$162.62

92001

BOLT,FLANGED,8X40

92001-1188

Unavailable

92001A

BOLT,FLANGED,10X45

92001-1189

Unavailable

92001B

BOLT,FORK CYLINDER

92001-1309

$5.81

92001C

BOLT,FLANGED,8X55

92001-1639

$8.20

92015

NUT,LOCK,8MM

92015-1124

$4.10

92033

RING-SNAP

92033-1036

$4.88

92049

OIL SEAL

92049-1043

$14.59

92055

RING-O,FORK TOP CAP

92055-1050

$4.71

92055A

"0" RING,AIR VALVE

92055-1094

$0.98

92075

DAMPER,FORK COVER

92075-1155

Unavailable

92093

DUST SHIELD,FORK

92093-1023

Unavailable

114

BOLT,HEX HEAD,8X55

114G0855

Unavailable

220

SCREW PAN HEAD 4X8

220B0408

Unavailable

410

WASHER PLAIN 8MM

410B0800

Unavailable
