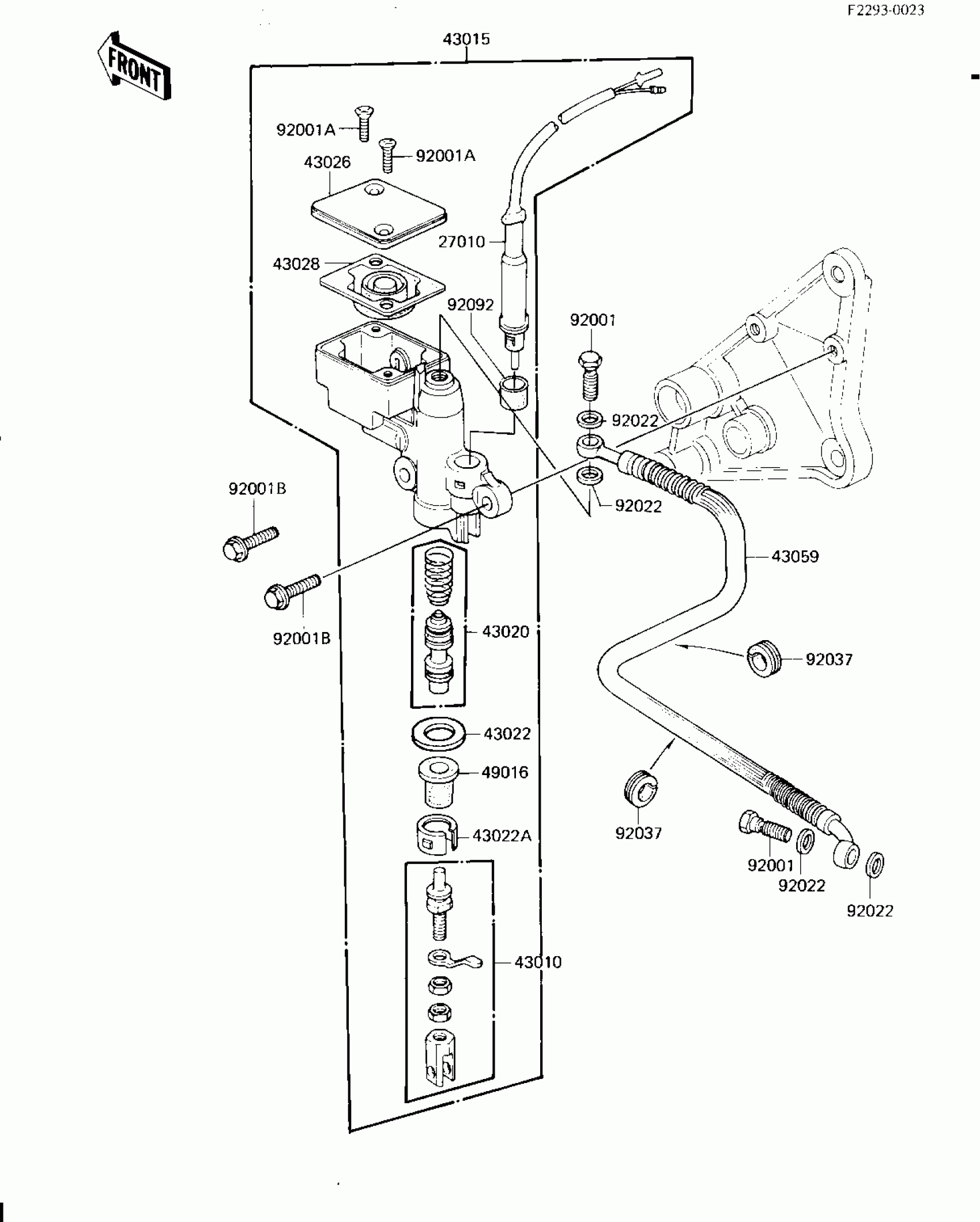

Kawasaki KZ1300-A4 REAR MASTER CYLINDER Diagram

Description

Price

27010

SWITCH,REAR BRAKE

27010-1027

$114.49

43010

ROD ASSY,BRAKE

43010-1001

$70.49

43015

CYLINDER ASSY,REAR

43015-1062

Unavailable

43020

PISTON-COMP-BRAKE

43020-1024

Unavailable

43022

STOPPER,PISTON

43022-1002

$4.56

43022A

STOPPER,DUST COVER

43022-1003

$4.56

43026

CAP,OIL CUP

43026-1013

$47.74

43028

DIAPHRAGM

43028-1007

Unavailable

43059

HOSE-BRAKE,L=620

43059-1177

$61.54

49016

DUST COVER

49016-1026

Unavailable

92001

BOLT,OIL,L=23

92002-1888

$4.15

92001A

SCREW-CSK-CROS,5X12,BLACK

92001-1055

$4.59

92001B

BOLT,FLANGED,8X28

92001-1095

$5.71

92022

WASHER,10.5X15X1.5

43067-001

$1.57

92037

GROMMET,HOSE CLAMP

43064-007

$4.18

92092

BUSHING

92092-1007

$13.56
