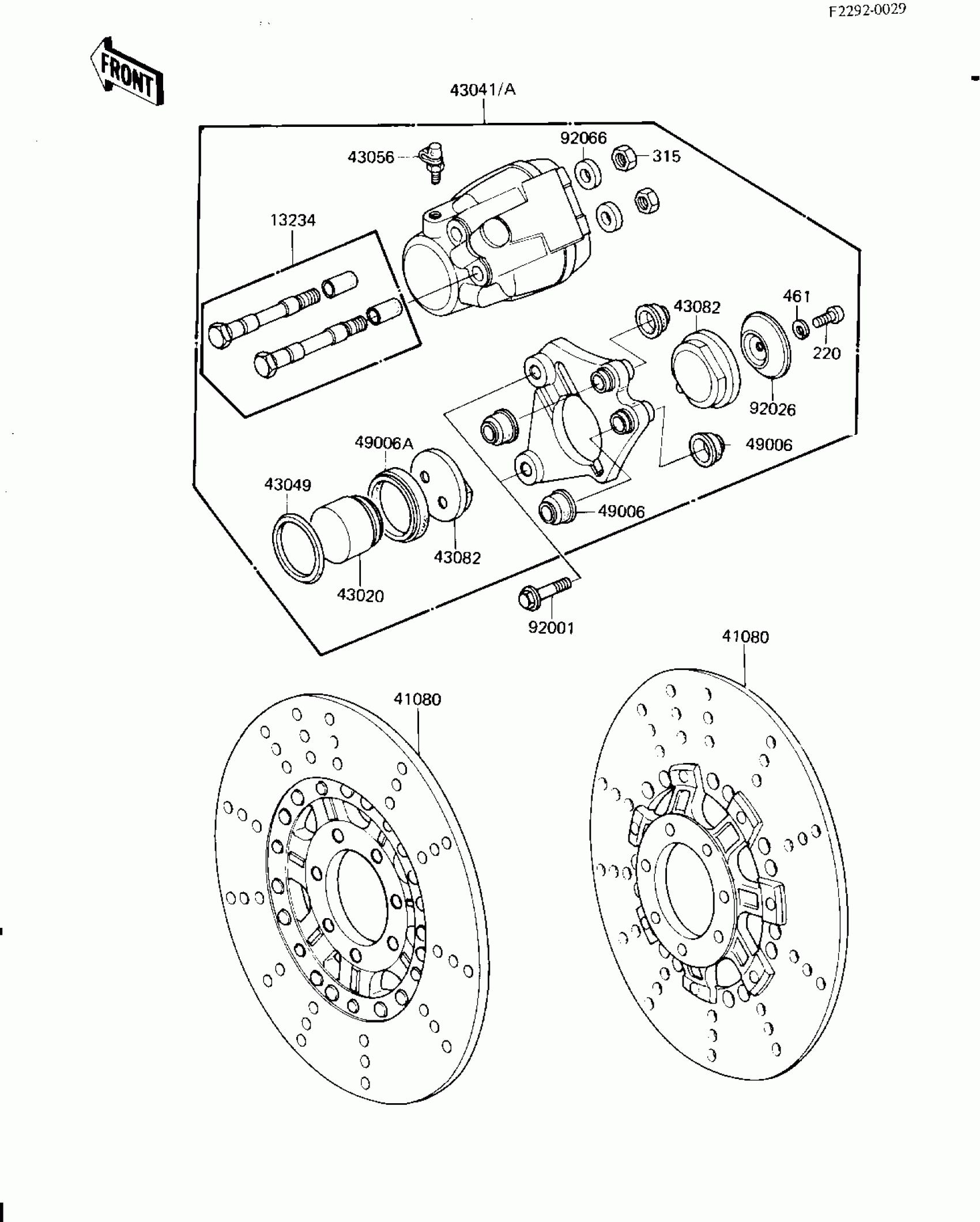

Kawasaki KZ1300-A4 FRONT BRAKE Diagram

Description

Price

13234

SHAFT ASSY,CALIPER

13234-1002

Unavailable

41080

DISC,FR,SILVER

41080-1123

$628.98

43020

PISTON,BRAKE,42M/M

43020-1012

Unavailable

43041

CALIPER ASSY,FRONT,LH

43041-1016

$443.25

43041A

CALIPER ASSY,FRONT,RH

43041-1017

$443.25

43049

PACKING,PISTON SEAL

43049-002

$10.56

43056

BLEEDER SET

43085-001

$19.94

43082

PAD SET

43082-1004

Unavailable

49006

DUST SHILD,SHAFT

43052-005

Unavailable

49006A

DUST SEALD,RUBBER

43054-003

Unavailable

92001

BOLT,FLANGED,10X44

92001-1299

Unavailable

92026

SPACER

43040-004

Unavailable

92066

PLUG

43088-002

Unavailable

220

SCREW PAN HEAD 6X12

220B0612

Unavailable

315

NUT-HEX-FINE,10MM

315B1000

Unavailable

461

WASHER SPRING 6MM

461F0600

Unavailable
