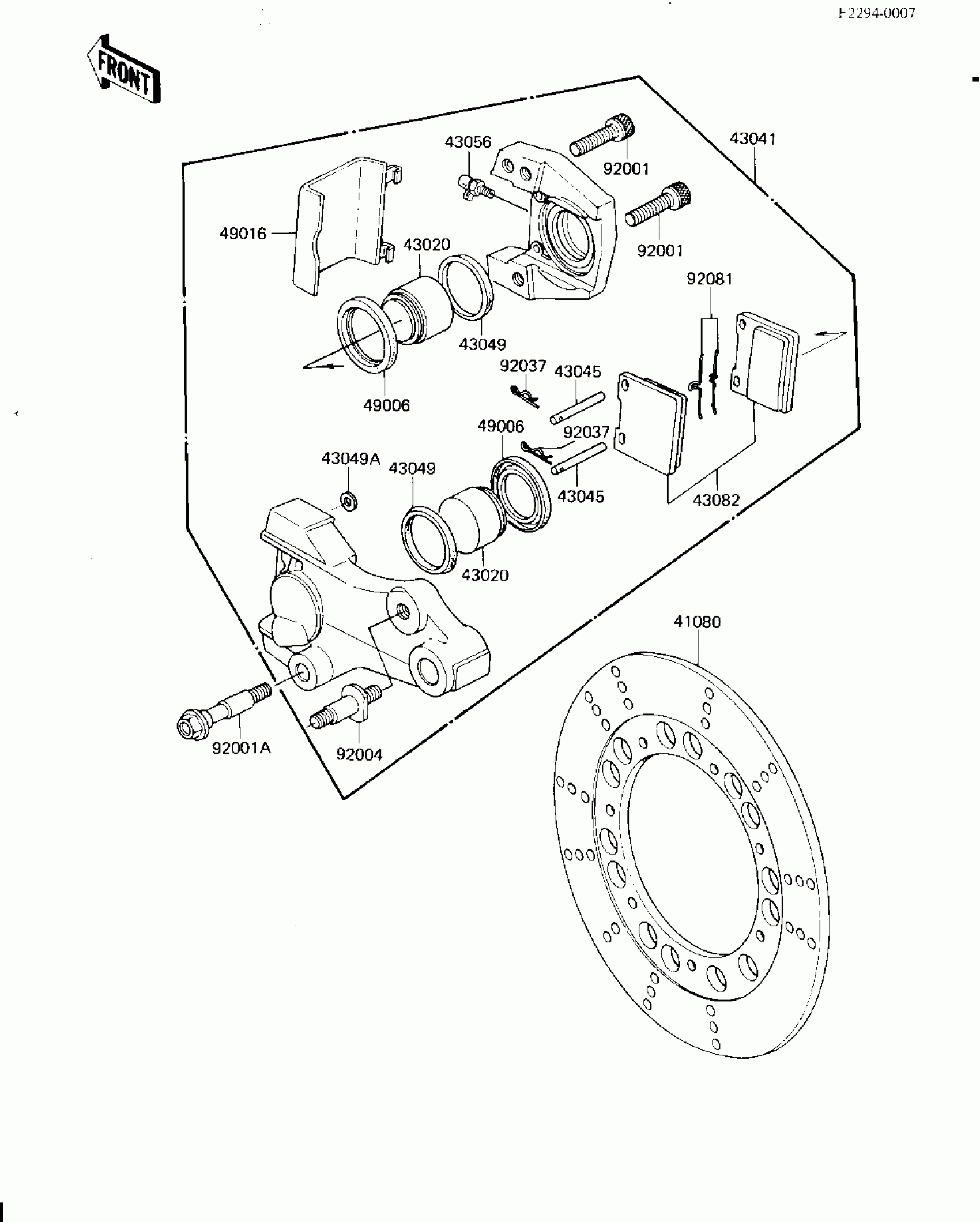

Kawasaki KZ1300-A4 REAR BRAKE Diagram

Description

Price

41080

DISC,RR,SILVER

41080-1124

$713.95

43020

PISTON,BRAKE

43020-1011

$111.19

43041

CALIPER ASSY,REAR

43041-1018

$443.25

43045

SHAFT-CALIPER

43045-007

$4.88

43049

PACKING,PISTON SEAL

43049-002

$10.56

43049A

PACKING,SEAL,6.5X11.5X2.2

43049-1004

$4.64

43056

BLEEDER SET

43085-001

$19.94

43082

PAD-ASSY-BRAKE

43082-1024

Unavailable

49006

DUST SEAL,PISTON

43054-004

$16.17

49016

CAP

43024-004

Unavailable

92001

BOLT,TIE,10X45

92001-1071

$6.56

92001A

BOLT,REAR CALIPER

92001-1132

Unavailable

92004

STUD

92004-1020

Unavailable

92037

CLAMP,PAD

43084-003

$3.29

92081

SPRING

43086-002

Unavailable
