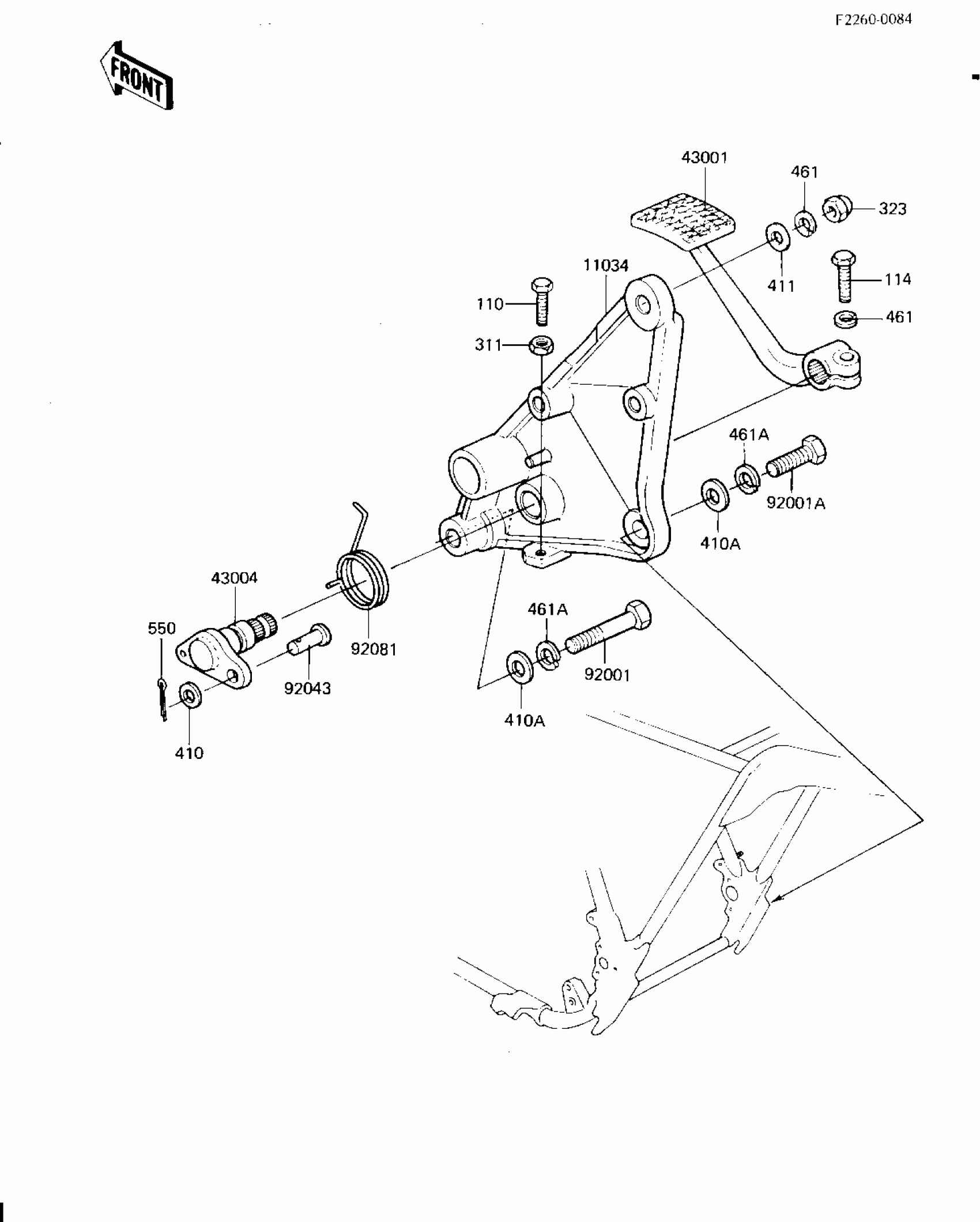

Kawasaki KZ1300-A4 BRAKE PEDAL Diagram

Description

Price

11034

BRACKET,BRAKE PEDAL

11034-1263

Unavailable

43001

PEDAL,BRAKE

43001-1024

$136.05

43004

SHAFT,BRAKE

43004-1006

$56.36

92001

BOLT-HEX HEAD,10X46

92007-029

Unavailable

92001A

BOLT,HEX HEAD,10X25

92007-045

Unavailable

92043

PIN,6X17

92043-107

Unavailable

92081

SPRING,BRAKE PEDAL RT

92081-1088

$8.39

110

BOLT 6X22

112B0622

Unavailable

114

BOLT-SMALL-UPSET 8X25

115G0825

Unavailable

311

NUT 6MM

311B0600

Unavailable

323

NUT-CAP-SMALL,8MM

323N0800

$4.08

410

WASHER-PLAIN-SMALL,6MM

410B0600

$1.03

410A

WASHER PLAIN 10MM

410B1000

Unavailable

411

WASHER PLAIN 8MM

411B0800

Unavailable

461

WASHER SPRING 8MM

461F0800

Unavailable

461A

WASHER SPRING 10MM

461F1000

Unavailable

550

PIN-COTTER,2.0X20

550D2020

Unavailable
