1981 Kawasaki KZ1300-A3 Swing ARM Diagram

← All diagrams

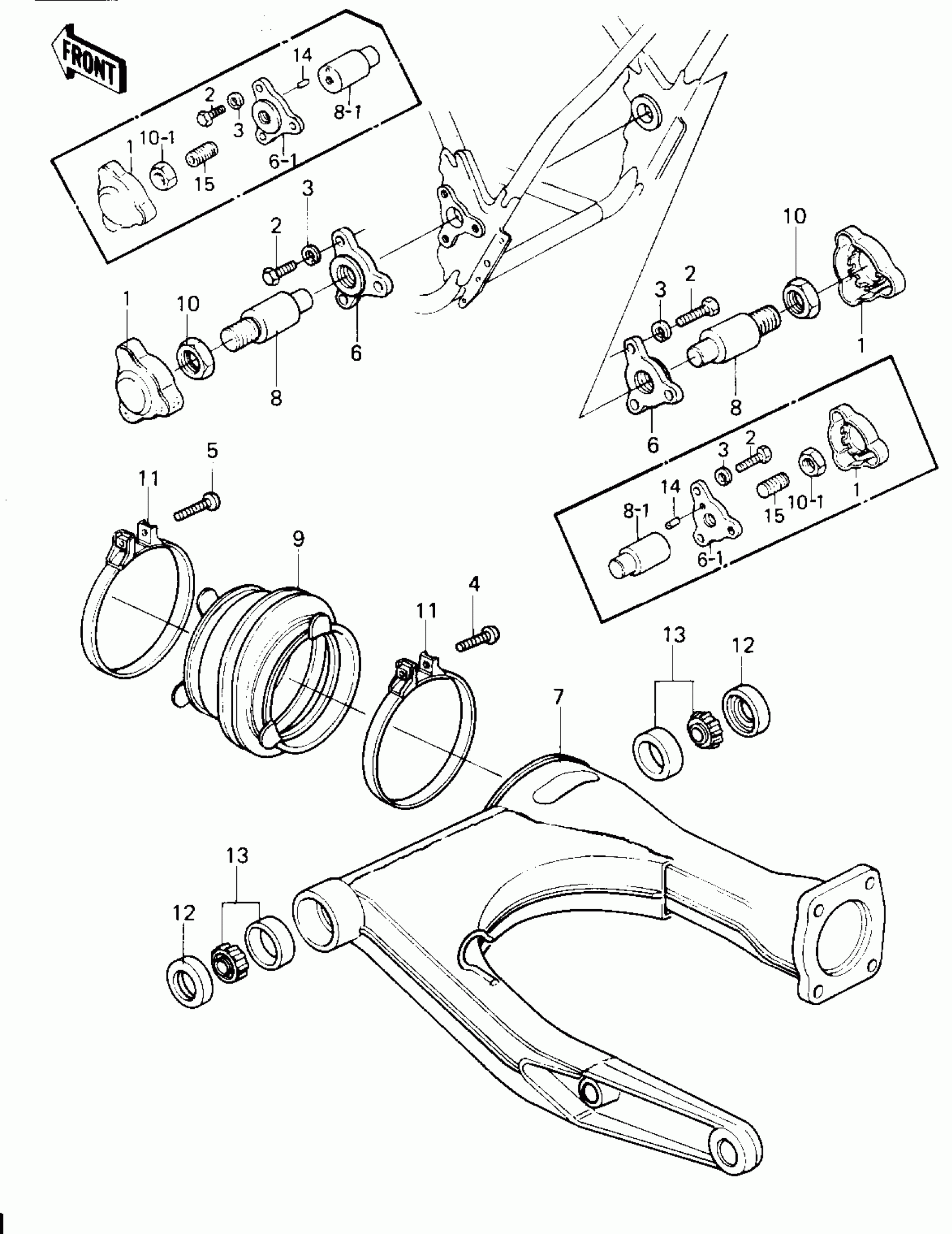

Find the part on the Swing ARM diagram for your 1981 Kawasaki KZ1300-A3, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1981 Kawasaki KZ1300-A3 Swing ARM Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

COVER,SWING ARM

14025-1087

1
Out of stock

2

BOLT,8X22

114G0822

1
Out of stock

3

WASHER SPRING 8MM

461F0800

1
Out of stock

4

SCREW-PAN-CROS

220B0420

1
Out of stock

5

SCREW-PAN-CROS

220B0430

1
Out of stock

6

STOPPER,SWING ARM

32085-1031

1
Out of stock

6-1

STOPPER,SWING ARM

32085-1053

1
Out of stock

7

ARM,SWING

33001-1026

1
Out of stock

8

SHAFT,SWING ARM

33032-1006

1
Out of stock

8-1

SHAFT,SWING ARM

33032-1016

1
Out of stock

9

BOOT,SWING ARM

49006-1020

1
Out of stock

10

NUT,20M/M

92015-1056

1
Out of stock

10-1

NUT-HEX-FINE,14MM

315B1400

1
Out of stock

11

CLAMP,SWING ARM BOOT

92037-1097

1
Out of stock

12

SEAL-OIL,26406

92049-1030

1
Out of stock

13

BEARING-ROLLER,4T30203E1

92116-1001

1
Out of stock

14

PIN,SPRING,3X14

555A0314

1
Out of stock

15

SCREW,SET,14X22

92009-1087

1
Out of stock
