1981 Kawasaki KZ1300-A3 Handlebar Diagram

← All diagrams

Find the part on the Handlebar diagram for your 1981 Kawasaki KZ1300-A3, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

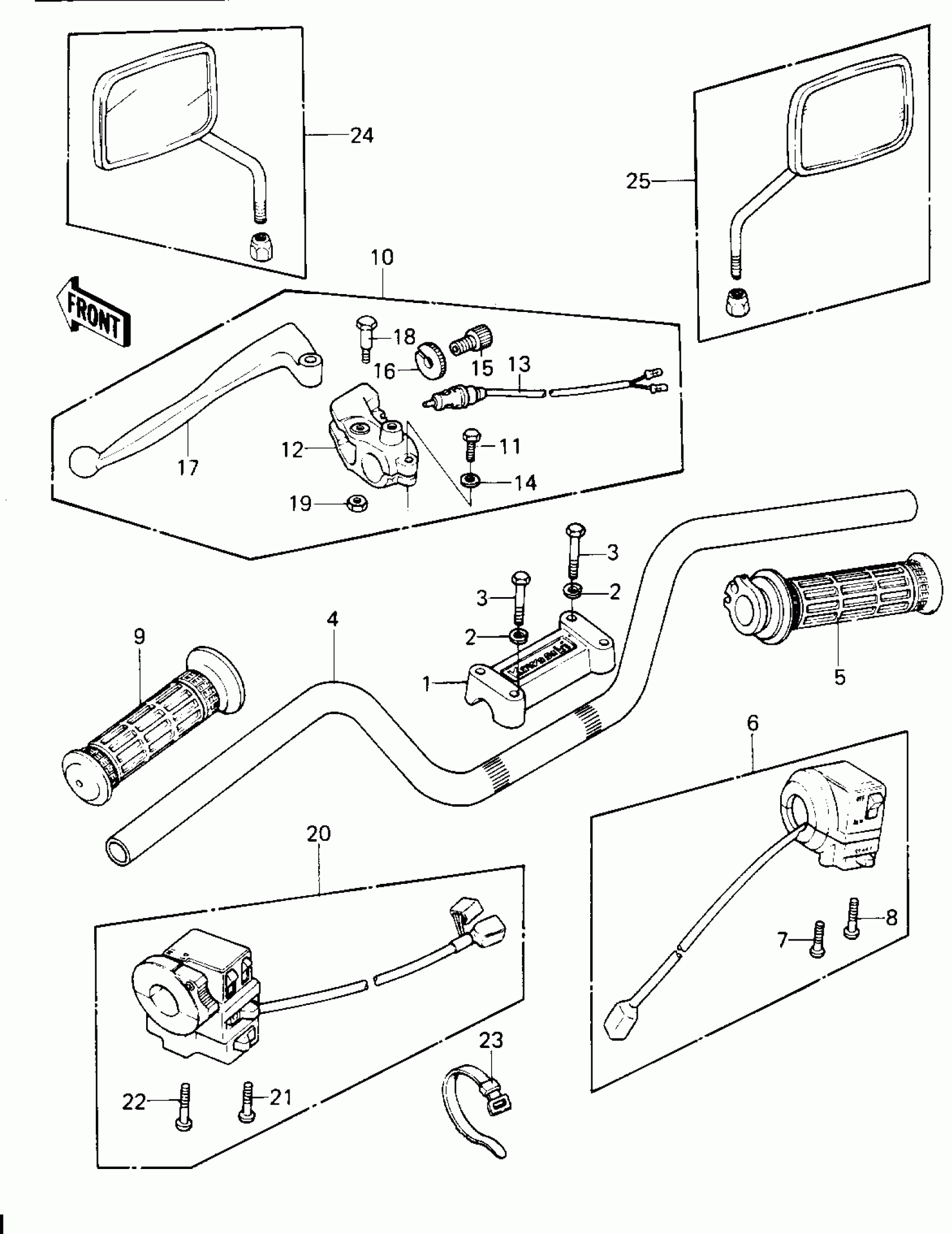

1981 Kawasaki KZ1300-A3 Handlebar Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

HOLDER,HANDLEBAR

46012-1007

1

$28.29

In stock

2

WASHER SPRING 8MM

461F0800

1
Out of stock

3

BOLT 8X38

92001-1405

1
Out of stock

3

BOLT 8X38

92001-1405

1
Out of stock

4

HANDLEBAR

46003-1030

1
Out of stock

5

GRIP-ASSY,THROTTLE

46019-1013

1
Out of stock

5

GRIP-ASSY,THROTTLE

46019-1013

1
Out of stock

6

HOUSING ASSY,R.H

46091-1058

1
Out of stock

6

HOUSING ASSY,R.H

46091-1080

1
Out of stock

7

SCREW PAN HEAD 5X30

220B0530

1
Out of stock

8

SCREW-PAN-CROS

220B0540

1
Out of stock

9

GRIP,LH

46075-1020

1
Out of stock

9

GRIP,LH

46075-1020

1
Out of stock

10

LEVER ASSY,CLUTCH

46076-1006

1

$38.12

In stock

11

BOLT,6X22

110N0622

1
Out of stock

12

HOLDER,CLUTCH LEVER,F.BLACK

13091-1046

1
Out of stock

13

SWITCH,CLUTCH

27043-002

1
Out of stock

14

WASHER-PLAIN-SMALL,6MM

410B0600

1
Out of stock

15

1

$12.92

In stock

16

1

$7.04

In stock

17

LEVER-GRIP,CLUTCH

46092-1005

1
Out of stock

18

BOLT,CLUTCH LEVER

92001-1075

1
Out of stock

19

NUT,LOCK,6MM

92019-008

1
Out of stock

20

HOUSING ASSY,L.H

46091-1059

1
Out of stock

21

SCREW-PAN-CROS

220B0535

1
Out of stock

22

SCREW-PAN-CROS

220B0545

1
Out of stock

23

BAND,L=123

92072-030

1
Out of stock

23

BAND,L=149

92072-031

1
Out of stock

24

MIRROR-ASSY,LH&RH

56001-5006

1
Out of stock

24

MIRROR-ASSY,LH

56001-1089

1
Out of stock

25

MIRROR-ASSY,LH&RH

56001-5006

1
Out of stock

25

MIRROR-ASSY,RH

56001-1090

1
Out of stock
