1981 Kawasaki KZ1300-A3 Front Wheel/hub Diagram

← All diagrams

Find the part on the Front Wheel/hub diagram for your 1981 Kawasaki KZ1300-A3, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

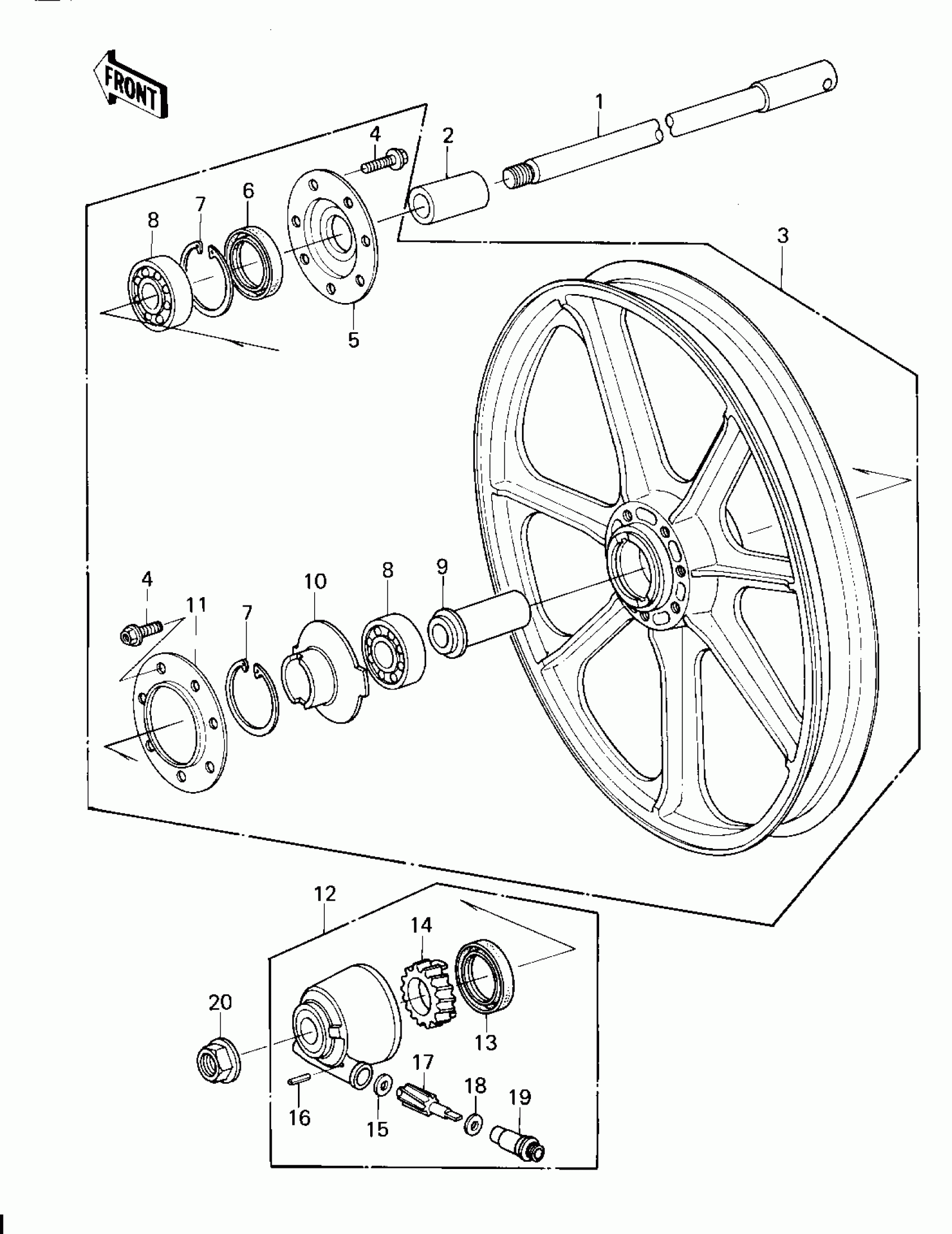

1981 Kawasaki KZ1300-A3 Front Wheel/hub Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

AXLE,FRONT

41068-1016

1
Out of stock

2

COLLAR,FRONT AXLE

92027-1125

1
Out of stock

3

SOLID WHEEL ASSY,FRON

41073-1023

1
Out of stock

4

BOLT,FLANGED,8X28

92001-1095

1
Out of stock

5

DUST COVER,R.H

49016-1018

1
Out of stock

6

OIL SEAL,N0K AE1351EO

92049-1008

1
Out of stock

7

RING-SNAP,47MM

92033-1042

1
Out of stock

7

RING-SNAP,47MM

92033-1042

1
Out of stock

8

BEARING BALL #6303Z

601B6303Z

1
Out of stock

9

COLLAR,FRONT HUB BEAR

92027-1123

1
Out of stock

10

RECEIVER,SPEEDOMETER

41064-1003

1
Out of stock

11

DUST COVER,L.H

49016-1017

1
Out of stock

12

GEAR BOX ASSY

41078-1008

1
Out of stock

13

SEAL-OIL,BJN30427-C3

92049-1057

1
Out of stock

14

1

$43.35

In stock

15

WASHER,5.1X9X0.4

41063-001

1

$4.17

In stock

16

PIN,SPRING

41082-001

1
Out of stock

17

PINION,SPEEDOMETER

41060-1021

1
Out of stock

18

WASHER,5.1X9X0.4

41063-001

1

$4.17

In stock

19

BUSHING,SPEEDOMETER

92028-1045

1
Out of stock

20

NUT,16MM

92015-1041

1
Out of stock
