1981 Kawasaki KZ1300-A3 Cables Diagram

← All diagrams

Find the part on the Cables diagram for your 1981 Kawasaki KZ1300-A3, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

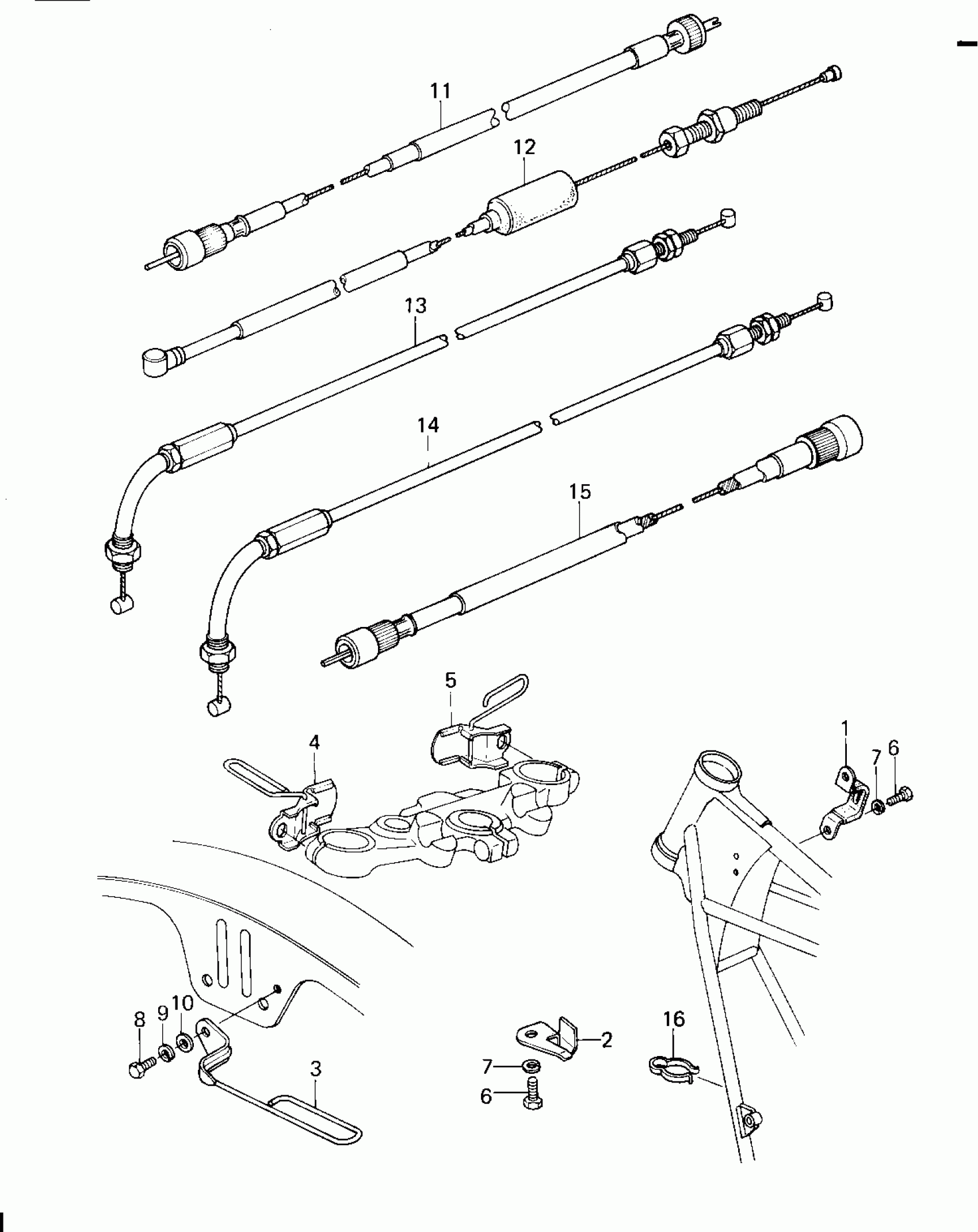

1981 Kawasaki KZ1300-A3 Cables Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

GUIDE,TACHOMETER CABL

13070-1012

1
Out of stock

2

GUIDE,CLUTCH CABLE

13070-1013

1
Out of stock

3

GUIDE,SPEEDOMETER

13070-1015

1
Out of stock

4

GUIDE,CLUTCH CABLE

13070-1016

1
Out of stock

5

GUIDE,THROTTLE CABLE

13070-1017

1
Out of stock

6

BOLT-UPSET,6X12

112G0612

1
Out of stock

7

WASHER SPRING 6MM

461F0600

1
Out of stock

8

BOLT-UPSET,6X12

112G0612

1
Out of stock

9

WASHER SPRING 6MM

461F0600

1
Out of stock

10

WASHER PLAIN 6MM

411B0600

1
Out of stock

11

CABLE,SPEEDOMETER

54001-1013

1
Out of stock

12

CABLE-CLUTCH

54011-1139

1
Out of stock

13

CABLE,THROTTLE

54012-1027

1
Out of stock

14

CABLE,THROTTLE

54012-1028

1
Out of stock

15

CABLE,TACHOMETER

54018-1005

1
Out of stock

16

CLAMP

92037-093

1
Out of stock
