1983 Kawasaki KZ1000-J3 Turn Signals Diagram

← All diagrams

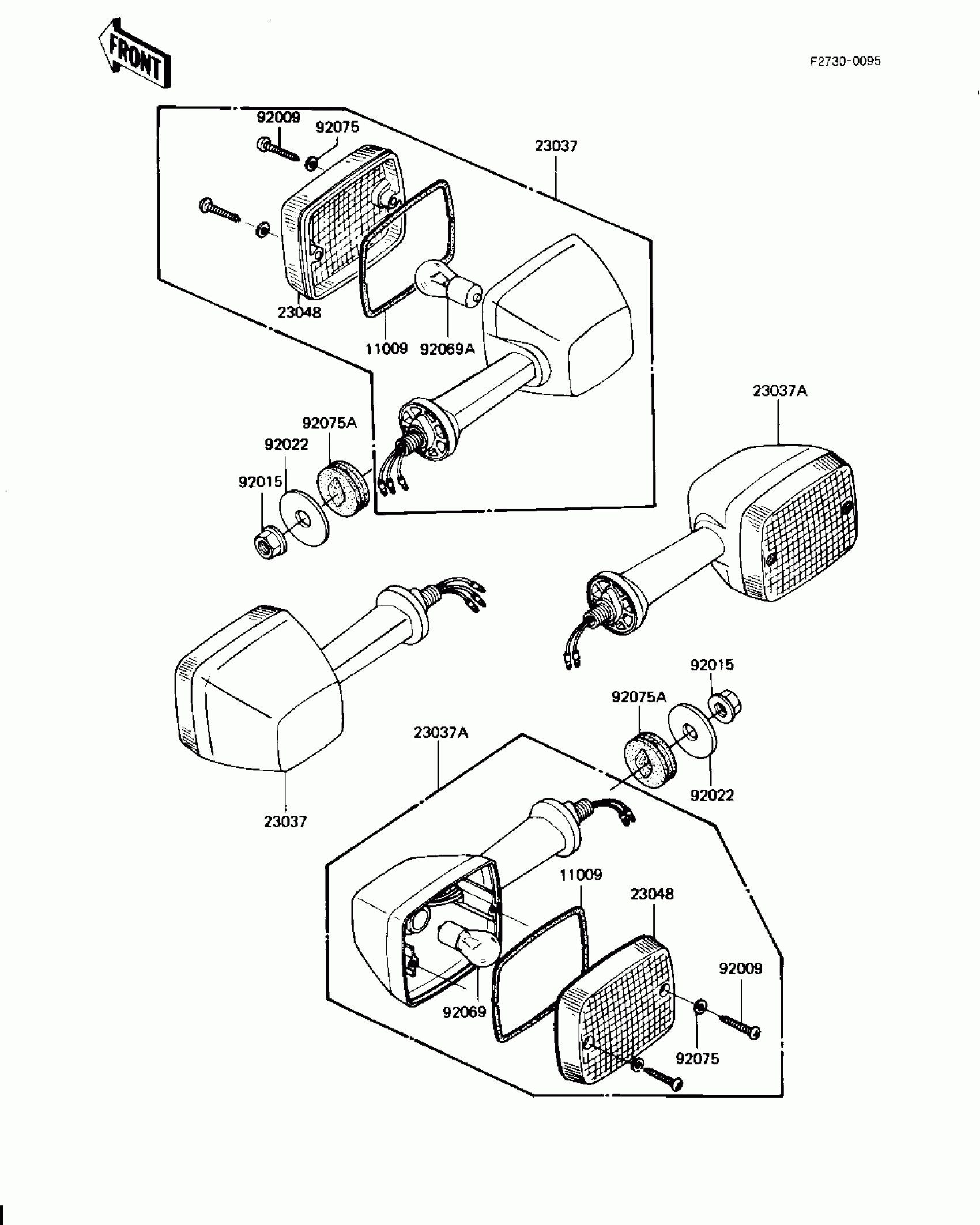

Find the part on the Turn Signals diagram for your 1983 Kawasaki KZ1000-J3, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1983 Kawasaki KZ1000-J3 Turn Signals Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11009

GASKET,SIGNAL LAMP

11009-1150

1

$5.49

In stock

23037

LAMP-ASSY-SIGNAL,FR

23037-1131

1
Out of stock

23037A

LAMP-ASSY-SIGNAL

23037-1104

1
Out of stock

23048

LENS-SIGNAL LAMP

23048-1019

1

$11.22

In stock

92009

SCREW,TAPPING,4X25

92009-1069

1
Out of stock

92015

NUT,FLANGED,10MM

92015-1428

1

$3.97

In stock

92022

WASHER,10.5X37X1.6

92022-1246

1
Out of stock

92069

BULB,12V 32CP(23W)

92069-055

1

$4.12

In stock

92069A

1

$7.70

In stock

92075

WASHER,PLAIN,4MM

23058-002

1

$2.05

In stock

92075A

DAMPER,SIGNAL LAMP

92075-1391

1

$12.64

In stock
