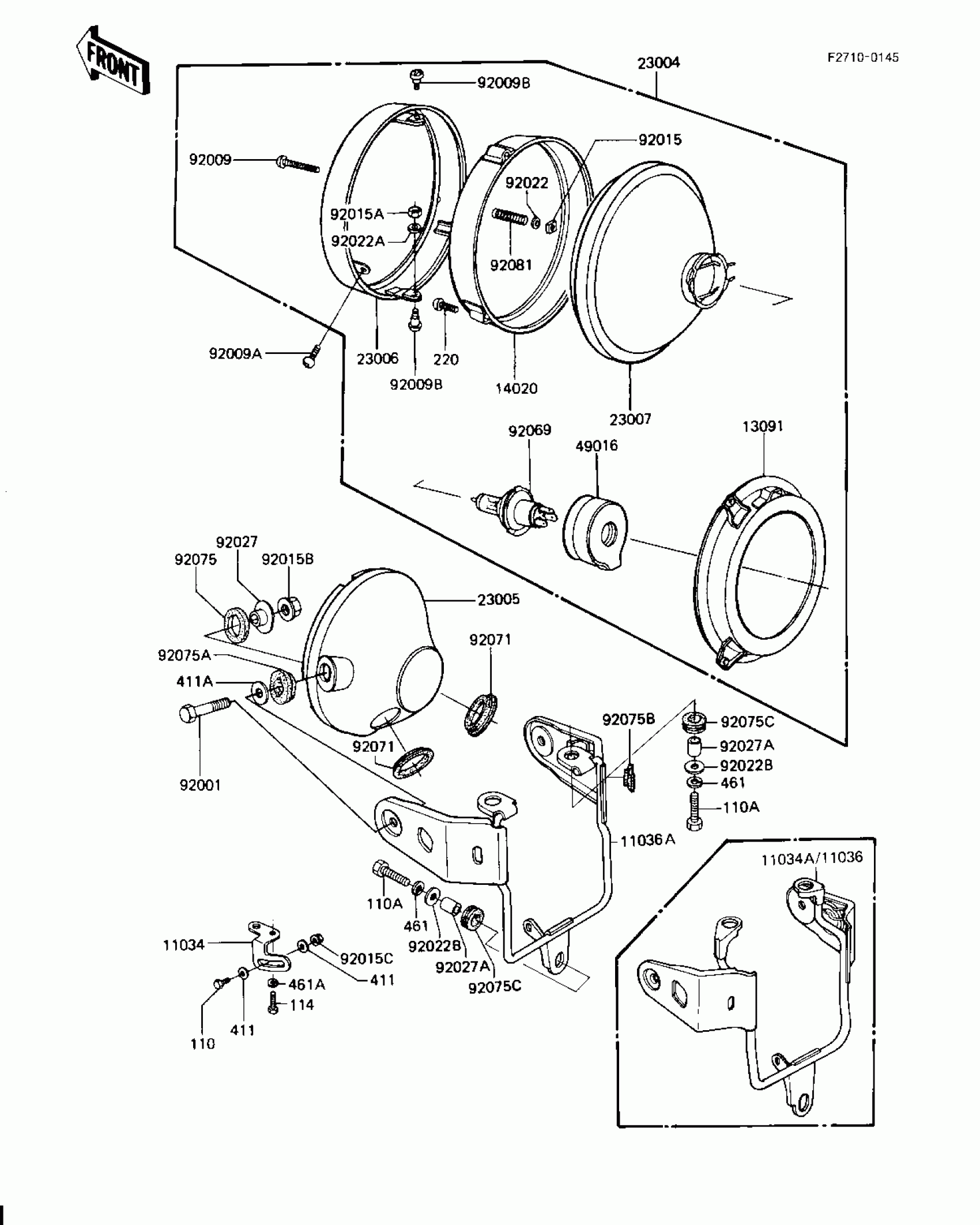

Kawasaki KZ1000-J3 HEADLIGHT Diagram

#

Description
Price

11034

BRACKET

11034-1676

Unavailable

11036A

BRACKET-A,HEAD LAMP (Canada)

11036-1747

Unavailable

13091

RING,HEAD LAMP MOUNT

23074-001

$65.88

14020

RING,HEAD LAMP MOUNT

23072-001

$45.03

23004

LAMP-HEAD

23004-1040

$651.43

23005

BODY-COMP-HEAD LAMP

23005-1015-21

$235.99

23006

RIM,HEAD LAMP

23006-038

Unavailable

23007

LENS-COMP,"001-1970" MARK

23007-1009

$163.61

49016

COVER-SEAL

49016-1016

Unavailable

92001

BOLT,10X35

92007-024

Unavailable

92009

SCREW,FOCUS ADJUSTING

23019-021

$4.17

92009A

SCREW,SPECIAL,5X14

23019-022

$1.54

92009B

SCREW,PAN HEAD,5X12

23019-023

$4.78

92015

NUT,4MM,FOCUS ADJUST

23020-018

$3.54

92015A

NUT,5MM

23020-023

Unavailable

92015B

NUT,FLANGED,10MM

92015-1428

$3.81

92015C

NUT,FLANGED,6MM

92015-1078

Unavailable

92022

WASHER,4.1X8X0.8

23021-004

Unavailable

92022A

WASHER,PLAIN,5MM

23021-012

Unavailable

92022B

WASHER,6.5X20X1.6

92022-125

$1.08

92027

COLLAR,HEAD LIGHT

23052-011

Unavailable

92027A

COLLAR,6.8X10X12

92027-162

$4.93

92069

BULB,12V 60/55W,H4

92069-1002

Unavailable

92071

GROMMET

92071-1008

Unavailable

92075

DAMPER RUBBER

23066-021

Unavailable

92075A

DAMPER RUBBER

23066-022

Unavailable

92075B

DAMPER RUBBER

92075-1243

Unavailable

92075C

DAMPER RUBBER,RR FENR

92075-209

$3.57

92081

SPRING,FOCUS ADJUSTING

23014-005

$3.19

110

BOLT-UPSET 6X14

112B0614

Unavailable

110A

BOLT-UPSET

112G0625

Unavailable

114

BOLT-SMALL-UPSET,8X16

115G0816

Unavailable

220

SCREW-PAN-CROS

220B0312

Unavailable

411

WASHER PLAIN 6MM

411B0600

Unavailable

411A

WASHER-PLAIN,10MM

411D1000

$4.25

461

WASHER SPRING 6MM

461F0600

Unavailable

461A

WASHER SPRING 8MM

461F0800

Unavailable
