1983 Kawasaki KZ1000-J3 Chassis Electrical Equipment Diagram

← All diagrams

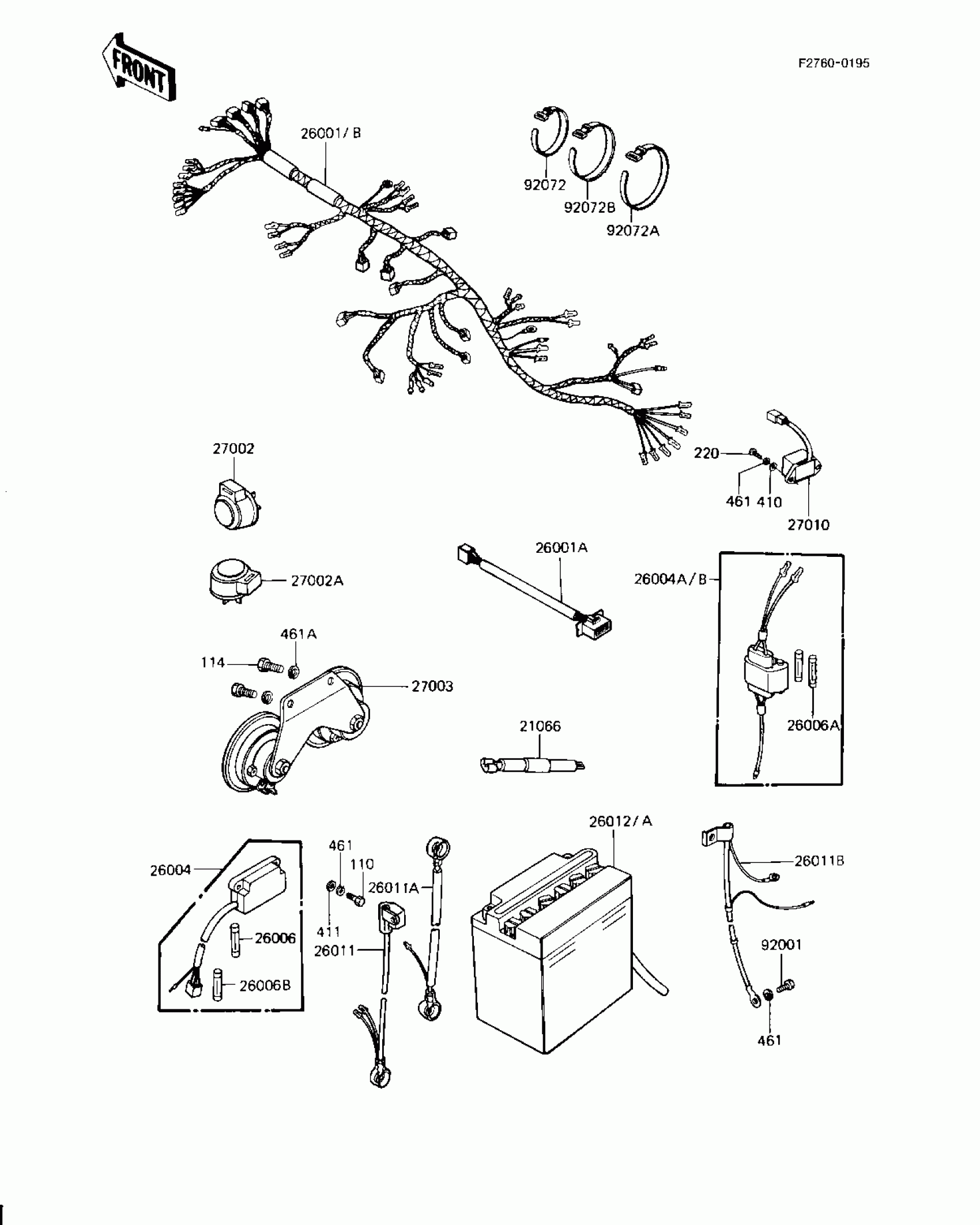

Find the part on the Chassis Electrical Equipment diagram for your 1983 Kawasaki KZ1000-J3, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1983 Kawasaki KZ1000-J3 Chassis Electrical Equipment Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

26001A

HARNESS,RESERVE LIGHT

26001-1248

1
Out of stock

26001B

26001-1510 (Canada)

26001-1465

1
Out of stock

26004

FUSE-ASSY

26004-1011

1
Out of stock

26004B

FUSE-ASSY,ACCESSORY

26004-1016

1
Out of stock

26006

FUSE,10A,L=25

26006-003

1
Out of stock

26006A

FUSE,GLASS TUBE,6.4X30,10A,YEL

26006-1002

1
Out of stock

26006B

FUSE,30A,L=25

26006-1005

1
Out of stock

26011A

WIRE-LEAD,BATTERY,(+)

26011-1120

1
Out of stock

26011B

WIRE-LEAD,BATTERY,(-)

26011-1124

1
Out of stock

26012

YUA BAT YB18L-A

26012-1039

1
Out of stock

27002

RELAY-ASSY,TURN SIGNAL

27002-011

1
Out of stock

27002A

RELAY,TURN SIGNAL

27002-016

1
Out of stock

27003

HORN

27003-1304

1
Out of stock

27010

SWITCH,RESERVE LIGHTI

27010-1024

1
Out of stock

92001

BOLT,6X10

92001-137

1
Out of stock

92072

BAND,L=149

92072-031

1
Out of stock

92072A

BAND,L=218

92072-032

1
Out of stock

92072B

BAND,L=186

92072-056

1
Out of stock

110

BOLT 6X22

112B0622

1
Out of stock

114

BOLT-SMALL-UPSET,8X16

115G0816

1
Out of stock

220

SCREW-PAN-CROS,6X20,WHITE

220B0620

1
Out of stock

410

WASHER-PLAIN-SMALL,6MM

410B0600

1
Out of stock

411

WASHER PLAIN 6MM

411B0600

1
Out of stock

461

WASHER SPRING 6MM

461F0600

1
Out of stock

461A

WASHER SPRING 8MM

461F0800

1
Out of stock
