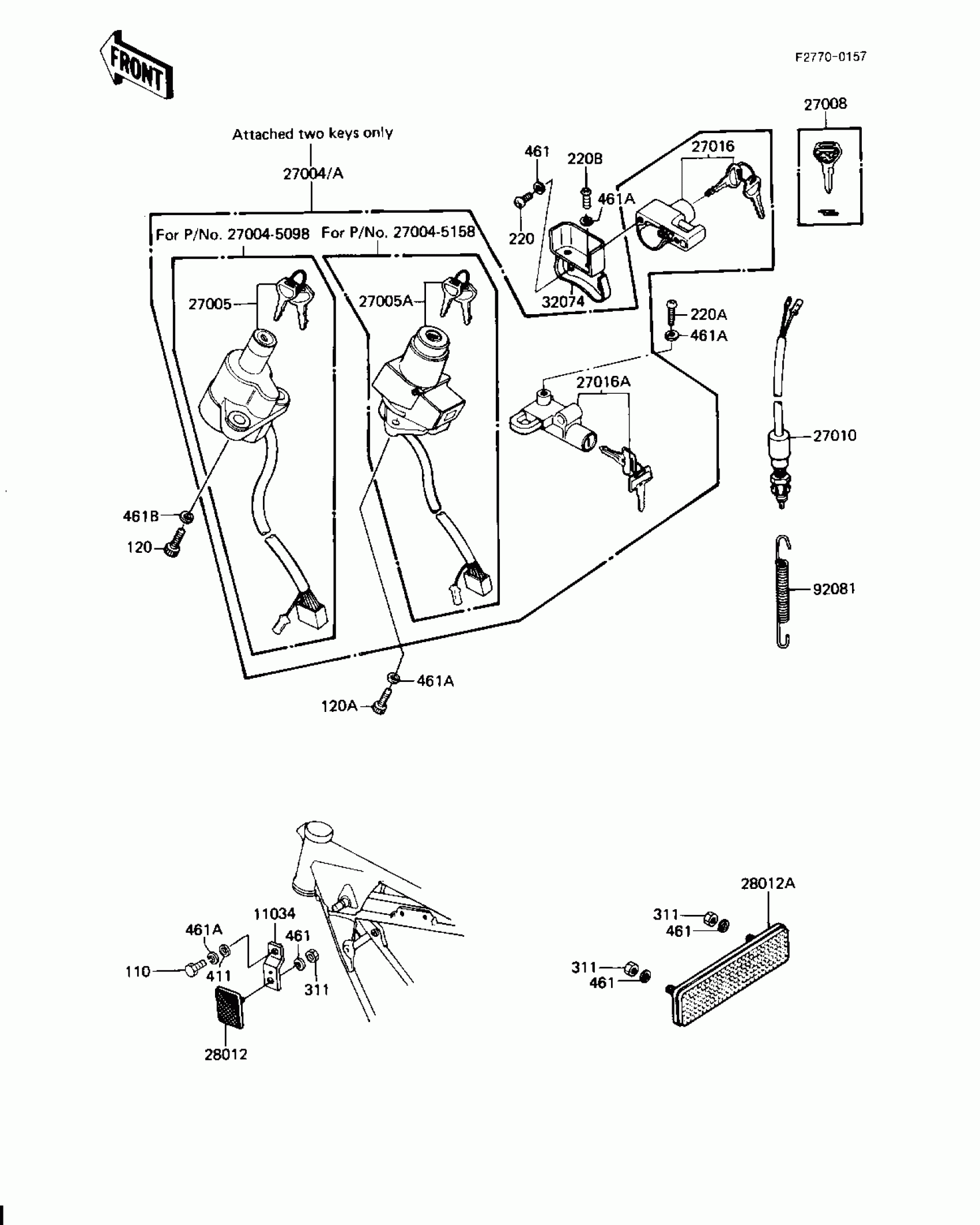

Find the part on the Ignition Switch/locks/reflectors diagram for your 1983 Kawasaki KZ1000-J3, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1983 Kawasaki KZ1000-J3 Ignition Switch/locks/reflectors Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11034

BRACKET

11034-1929

1
Out of stock

27004A

SWITCH-ASSY,ALL

27004-5205

1
Out of stock

27005A

SWITCH-ASSY-IGNITION

27005-5035

1
Out of stock

27008

KEY-LOCK,BLANK

27008-1103

1
Out of stock

27010

SWITCH,REAR BRAKE

27010-1019

1
Out of stock

27016

LOCK-ASSY,HELMET

27016-5070

1
Out of stock

27016A

LOCK-ASSY,SEAT

27016-5069

1
Out of stock

28012

UNAVAILABLE IN PRICE BOOK

26012-1003

1
Out of stock

28012A

REFLECTOR-REFLEX,RR

28012-1005

1
Out of stock

32074

BRACKET-LOCK,HELMET L

32074-1024

1
Out of stock

92081

SPRING,BRAKE SWITCH

92081-1366

1
Out of stock

110

BOLT-UPSET 6X14

112B0614

1
Out of stock

120A

BOLT-SOCKET,6X16

120S0616

1
Out of stock

220

SCREW PAN HEAD 5X8

220B0508

1
Out of stock

220A

SCREW PAN HEAD 6X10

220B0610

1
Out of stock

220B

SCREW PAN HEAD 6X12

220B0612

1
Out of stock

311

NUT-HEX

311B0500

1
Out of stock

411

WASHER PLAIN 6MM

411B0600

1
Out of stock

461

WASHER SPRING 5MM

461F0500

1
Out of stock

461A

WASHER SPRING 6MM

461F0600

1
Out of stock
