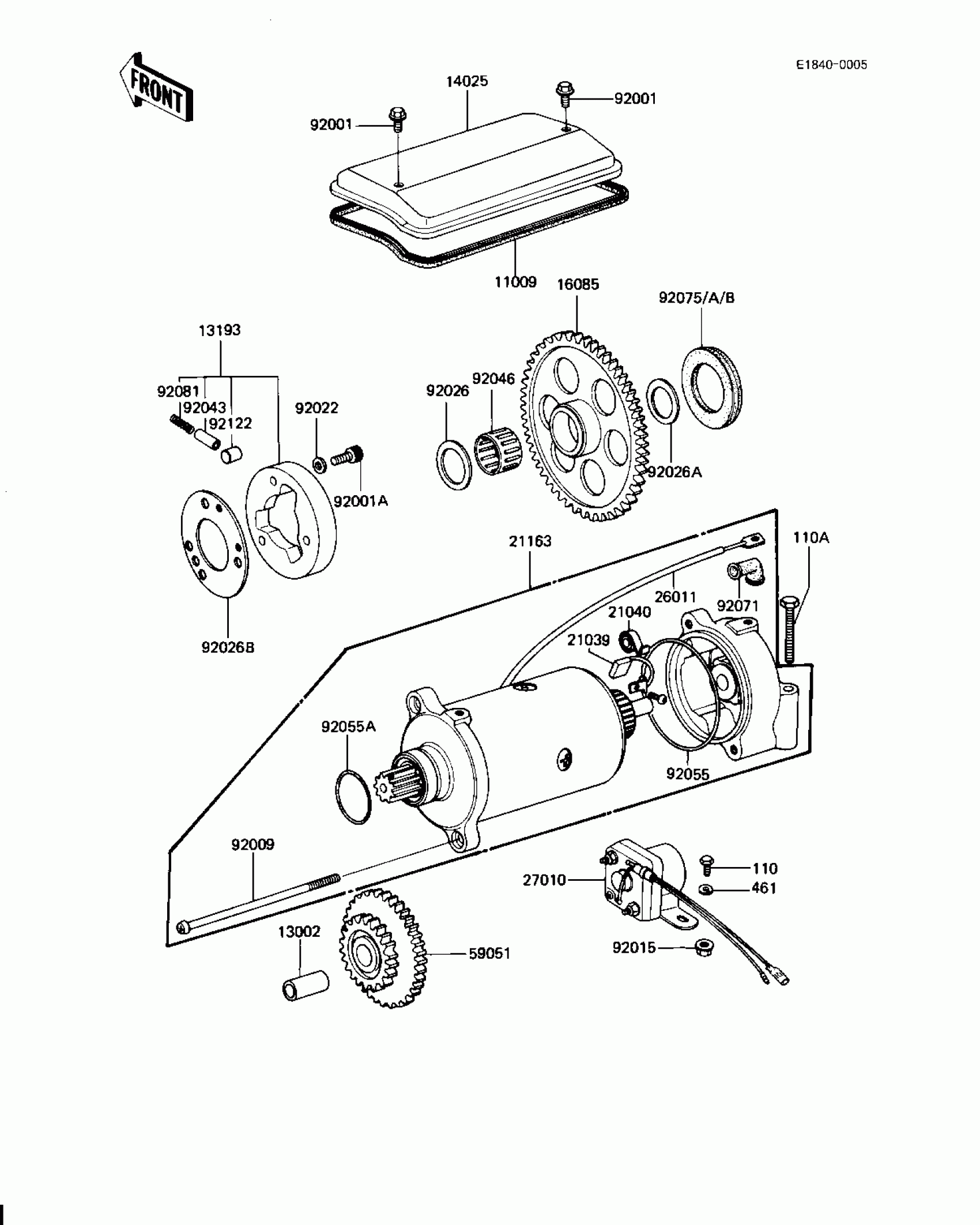

Kawasaki KZ1000-J3 STARTER MOTOR/STARTER CLUTCH (KZ1000-J1) Diagram

#

Description
Price

11009

GASKET,STARTER COVER

21166-001

$37.40

13002

PIN

13002-007

$17.07

13193

CLUTCH-ASSY-ONEWAY

13193-1006

$182.70

14025

COVER,STARTER

14025-1245

$44.97

16085

GEAR,STARTER CLUTCH

16085-1012

$236.72

21039

BRUSH,CARBON

21039-003

$42.66

21040

SPRING-BRUSH

21040-003

Unavailable

21163

STARTER-ELECTRIC

21163-1143

$639.91

26011

WIRE-LEAD,STARTER MTR

26011-1125

$40.88

27010

SWITCH,MAGNETIC

27010-1047

Unavailable

59051

GEAR-SPUR,STARTER MOTOR

21167-002

Unavailable

92001

BOLT,6X10

92001-1151

$4.42

92001A

BOLT-SOCKET,8X16

120P0816

Unavailable

92009

SCREW,PAN HEAD,5X110

21015-005

$9.86

92015

NUT,FLANGED,6MM

92015-1078

Unavailable

92022

WASHER,8.5X13.5X2

92022-1108

$3.85

92026

SPACER,25X38X1.0

92026-1031

$7.89

92026A

SPACER,25X34X2.0

92026-1033

$7.46

92026B

PLATE,CLUTCH STARTER

92026-112

Unavailable

92043

PIN

92043-087

$9.70

92046

BEARING-NEEDLE,K253020S

92046-1022

$21.49

92055

RING-O,STARTER MOTOR

21027-003

Unavailable

92055A

RING-O,STARTER MOTOR,25MM

21027-004

$7.54

92071

GROMMET,STARTER TERMINAL

21017-017

$7.18

92075

DAMPER,T=6.3

92075-1129

Unavailable

92075A

DAMPER,T=7.3

92075-1130

Unavailable

92075B

DAMPER,T=8.3

92075-1131

Unavailable

92081

SPRING

92081-110

$3.63

92122

ROLLER,15X14.4

92122-001

$8.82

110

BOLT-UPSET,6X12

112G0612

Unavailable

110A

BOLT,EXCLUSIVE

92001-1456

$4.34

461

WASHER SPRING 6MM

461F0600

Unavailable
