Description

Price

11009

GASKET,DRAIN PLUG

44045-047

$7.42

11009A

GASKET,FORK CYLINDER BOLT

44045-051

$4.88

16126

VALVE,AIR

16126-1041

$17.00

44001

FORK-FRONT

44001-1360

$535.91

44005

TUBE,LH,FORK OUTER

44005-1092

$116.09

44006

TUBE,RH,FORK OUTER

44006-1086

$112.76

44013

PIPE-FORK INNER

44013-1083

Unavailable

44022

CYLINDER-FORK

44022-1081

$30.80

44026

SPRING FRONT FORK

44026-1149

$21.07

44029

SEAT-FORK SPRING

44029-1032

$23.90

44037

HOLDER-FORK UNDER

44037-1079

$249.60

44039

HOLDER-FORK UPPER

44039-1049

$141.41

92001

BOLT,FORK CYLINDER

44041-078

$9.56

92001A

BOLT,STEERING STEM

92001-1318

$22.71

92001B

BOLT,8X35

92001-1643

$3.87

92026

SPACER,FORK OUTER

92026-1099

$9.07

92033

RING-SNAP

92033-1078

Unavailable

92048

RACE,STEERING STEM BEARING

92047-010

Unavailable

92049

SEAL-OIL,FORK OUTER

92049-1080

Unavailable

92055

RING-0

92055-1124

$4.54

92072

BAND

92072-1082

Unavailable

92093

SEAL,FORK OUTER

92093-1066

Unavailable

110

BOLT HEX HEAD 6X8

110B0608

Unavailable

461

WASHER SPRING 8MM

461F0800

Unavailable

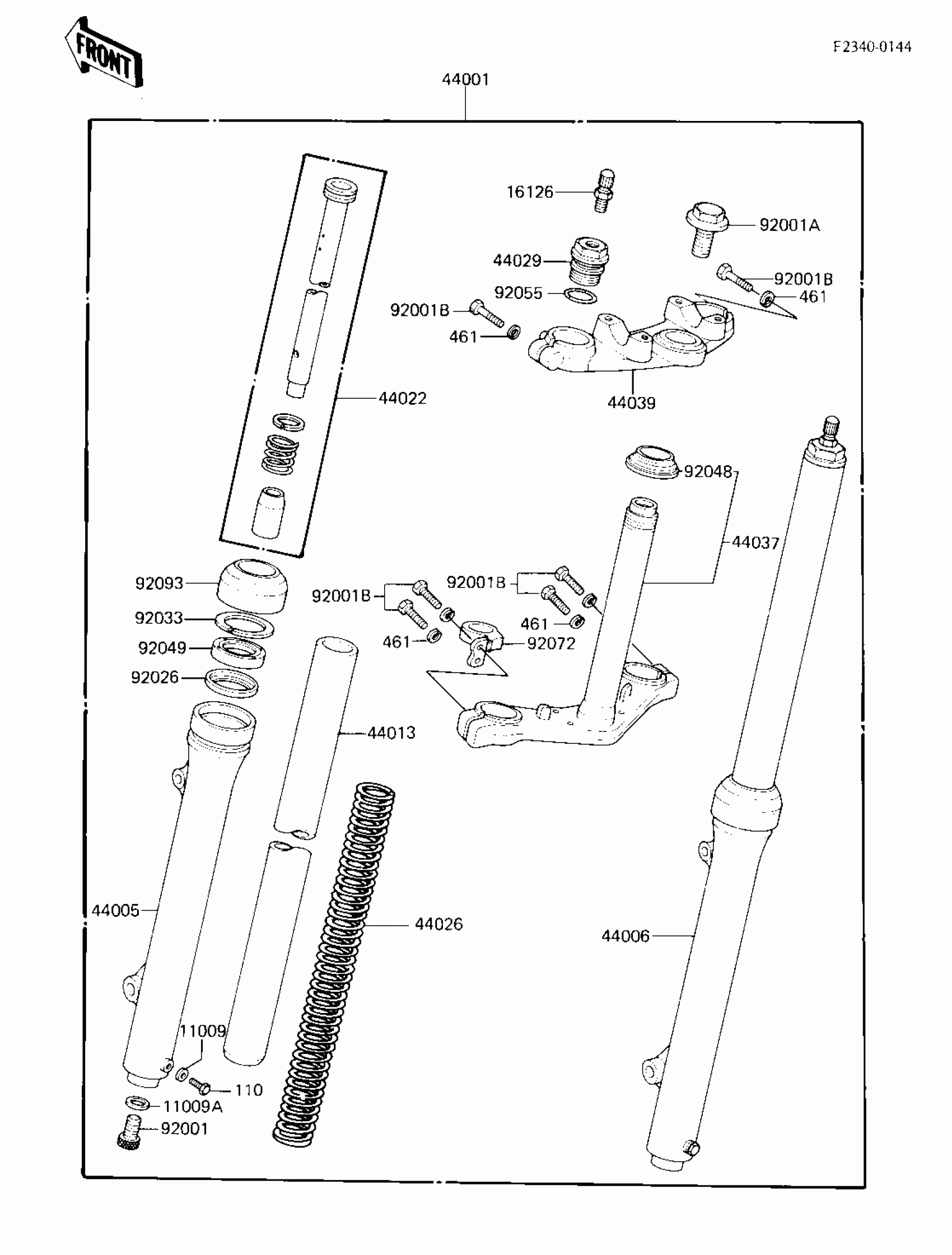

Kawasaki KX80 FRONT FORK (F/NO.007514-) Diagram

PIPE-FORK INNER

RING-SNAP

RACE,STEERING STEM BEARING

SEAL-OIL,FORK OUTER

BAND

SEAL,FORK OUTER

BOLT HEX HEAD 6X8

WASHER SPRING 8MM
