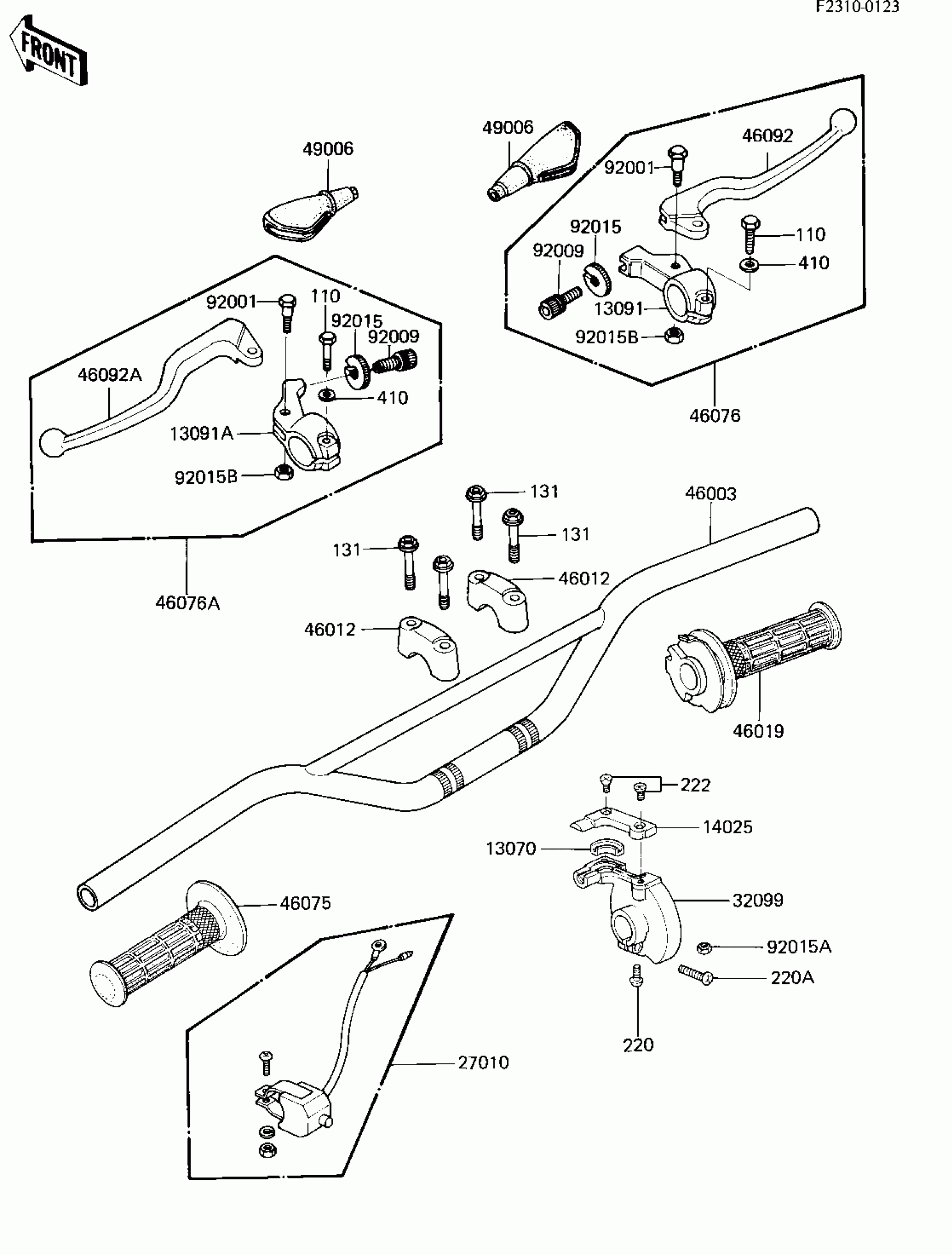

Kawasaki KX80 HANDLEBAR ('82 KX80-C2) Diagram

#

Description
Price

13070

GUIDE,THROTTLE PEACE

13070-1053

Unavailable

13091

HOLDER,BRAKE LEVER,FR,F.BLACK

46060-011-21

Unavailable

13091A

HOLDER,CLUTCH LEVER,F.BLACK

46094-015-21

$38.47

14025

COVER,THROTTLE UPP,R

14025-1392

Unavailable

27010

SWITCH,ASSY,ENG STOP

27010-1018

Unavailable

32099

CASE,THROTTLE LWR,RH

32099-1024

$42.54

46003

HANDLEBAR

46003-1092

$83.14

46012

HOLDER-HANDLE,UPP

46012-008

$34.49

46019

GRIP-ASSY,THROTTLE

46019-1020

Unavailable

46075

GRIP,LH

46075-1024

$23.37

46076

LEVER ASSY,FRONT BRK

46076-1010

Unavailable

46076A

LEVER-ASSY-GRIP,LH

46076-1011

$56.53

46092

LEVER-GRIP,FRONT BRAKE

46092-1014

Unavailable

46092A

LEVER-GRIP,CLUTCH

46092-1015

Unavailable

49006

BOOT,LEVER HOLDER

49006-1017

$14.71

92001

BOLT,5X22

92007-046

$6.34

92009

SCREW,CABLE ADJUST,8MM

46055-003

$12.92

92015

NUT,CABLE ADJUST LOCK,8MM

46056-005

$7.04

92015A

NUT,LOCK,4MM

92019-010

$2.80

92015B

NUT,LOCK,5MM

92019-014

$4.00

110

BOLT HEX HEAD 6X25

110N0625

Unavailable

131

BOLT-FLANGED,8X35

130G0835

Unavailable

220

SCREW PAN HEAD 4X8

220B0408

Unavailable

220A

SCREW-PAN-CROS

220B0520

$0.71

222

SCREW-CSK-RD-CROS,4X12

222E0412A

$2.15

410

WASHER,PLAIN,6MM

410D0600

Unavailable
