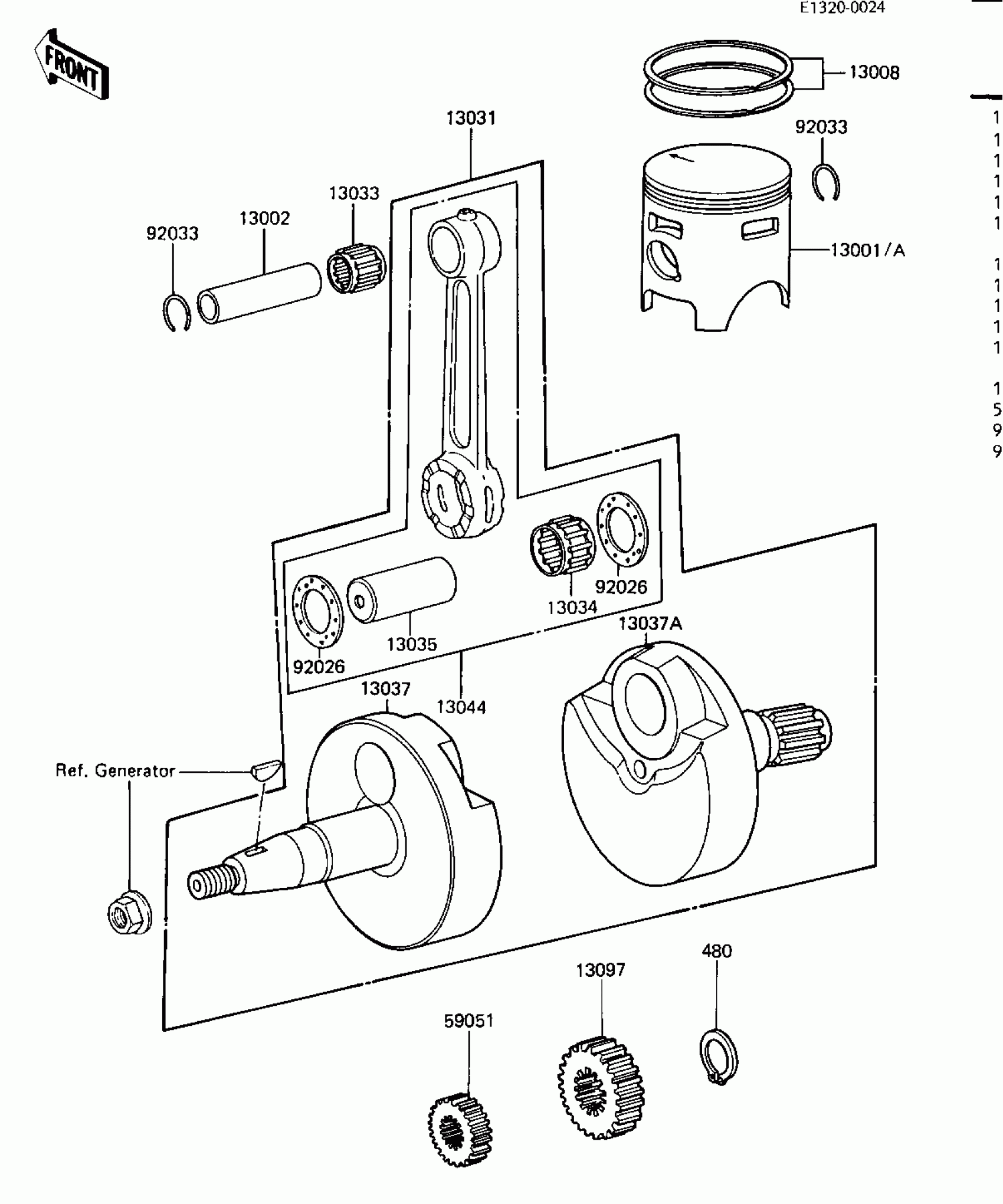

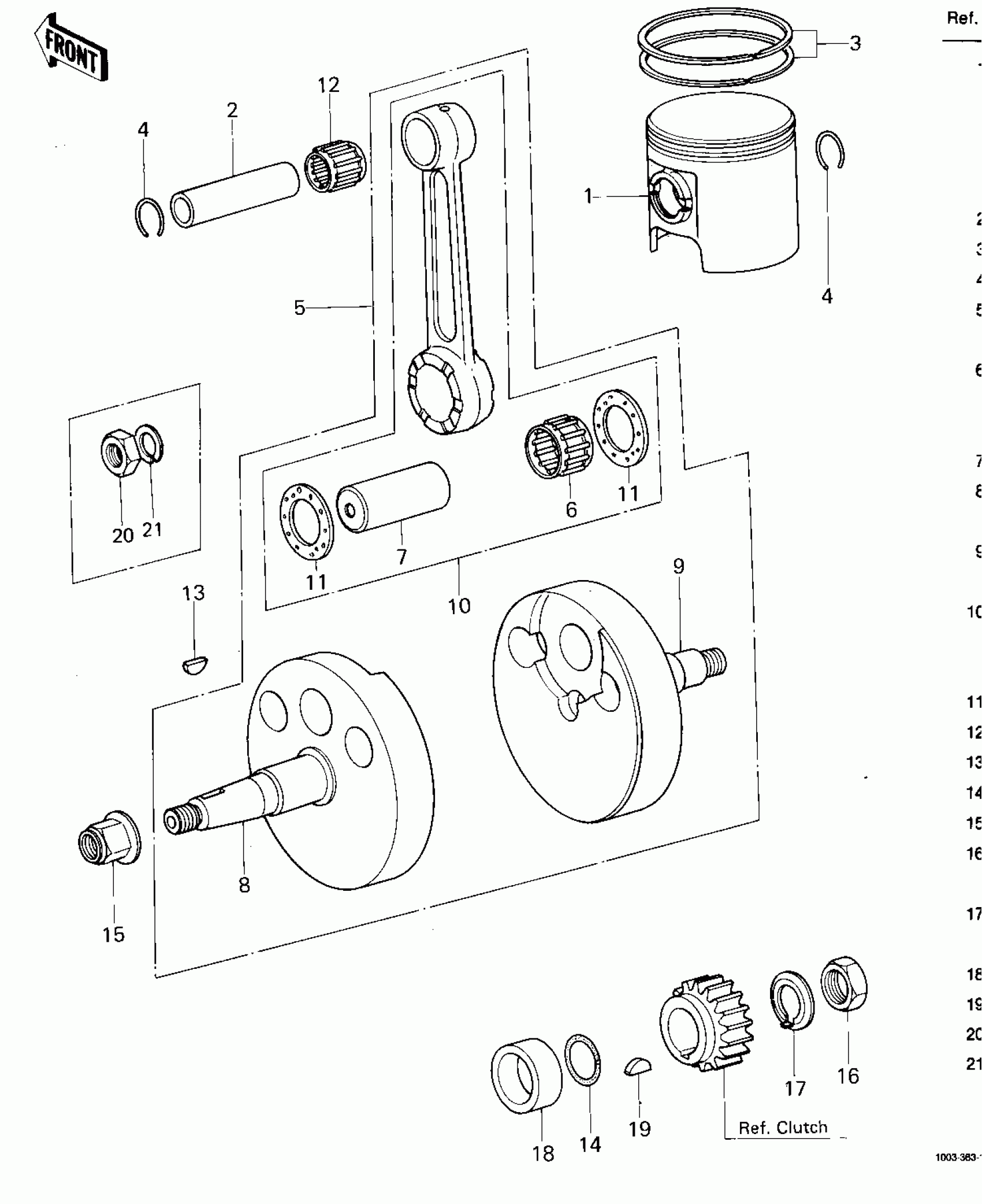

Kawasaki KX80 CRANKSHAFT/PISTON Diagram

#

Description
Price

1

PISTON-ENGINE

13001-1082

Unavailable

1

PISTON-ENGINE

13001-1082

Unavailable

1

PISTON-ENGINE

13001-1082

Unavailable

2

PIN-PISTON

13002-1009

$31.09

3

RING SET,PISTON,STD

13008-5011

$96.36

4

RING-SNAP,PISTON PIN

92036-003

$0.64

5

CRANKSHAFT ASSY

13031-1019

Unavailable

5

CRANKSHAFT ASSY

13031-1027

Unavailable

6

BEARING,NEEDLE

13034-1015

Unavailable

6

BEARING,NEEDLE

13034-1015

Unavailable

7

PIN-CRANK

13035-1002

$23.73

8

CRANKSHAFT,L.H.

13037-1025

Unavailable

8

CRANKSHAFT,L.H.

13037-1053

Unavailable

9

CRANKSHAFT,R.H.

13037-1026

Unavailable

9

CRANKSHAFT,R.H.

13037-1054

Unavailable

10

CONNECTING ROD SET

13044-5014

Unavailable

10

CONNECTING ROD SET

13044-5014

Unavailable

11

SHIM,20X34.5X1.0

92025-005

$8.63

12

BEARING-NEEDLE,KTV141817

13033-030

$24.37

13

KEY-WOODRUFF

510A3200

$2.17

14

O RING,16MM

670B2016

$1.20

15

NUT,FLANGED CAP,10MM

92015-076

$10.83

16

NUT,12M/M

92015-1064

$4.07

16

NUT,12MM

92015-006

$4.92

17

WASHER,LOCK

92022-1063

Unavailable

17

WASHER,CLAW,12.5X25X0.8

92024-003

Unavailable

18

COLLAR,20X28X12

92027-1146

Unavailable

19

KEY,WOODRUFF

92038-003

$4.23

20

NUT,10M/M

314G1000

Unavailable

21

WASHER SPRING 10MM

461F1000

Unavailable

21

WASHER SPRING 10MM

461F1000

Unavailable
