1988 Kawasaki KX80 Air Cleaner Diagram

← All diagrams

Find the part on the Air Cleaner diagram for your 1988 Kawasaki KX80, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

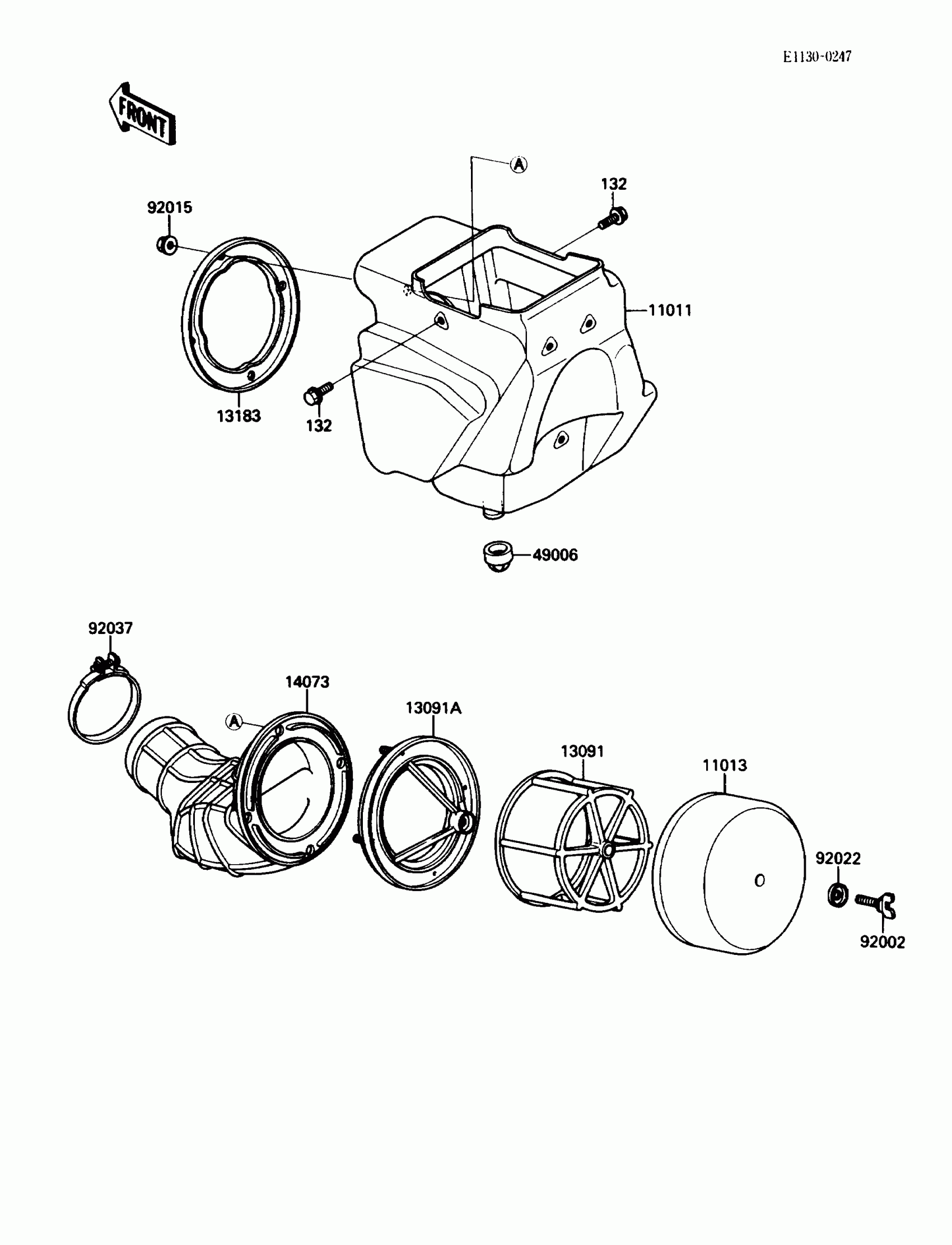

1988 Kawasaki KX80 Air Cleaner Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11011

CASE-AIR FILTER

11011-1267

1
Out of stock

11013

ELEMENT-AIR FILTER

11013-1129

1
Out of stock

13091

HOLDER,ELEMENT

13091-1393

1
Out of stock

13091A

HOLDER,ELEMENT

13091-1519

1
Out of stock

13183

PLATE,AIR FILTER DUCT

13183-1237

1
Out of stock

14073

DUCT,AIR FILTER

14073-1333

1
Out of stock

49006

BOOT,AIR FILTER

49006-1156

1
Out of stock

92002

BOLT,WING

92002-1599

1
Out of stock

92015

NUT,FLANGED,5MM

92015-1259

1
Out of stock

92022

WASHER,PLAIN,6MM

92022-284

1
Out of stock

92037

CLAMP

92037-1637

1

$8.80

In stock

132

BOLT-FLANGED-SMALL,6X10

132G0610

1
Out of stock
