2004 Kawasaki KX65 Front Hub Diagram

← All diagrams

Find the part on the Front Hub diagram for your 2004 Kawasaki KX65, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

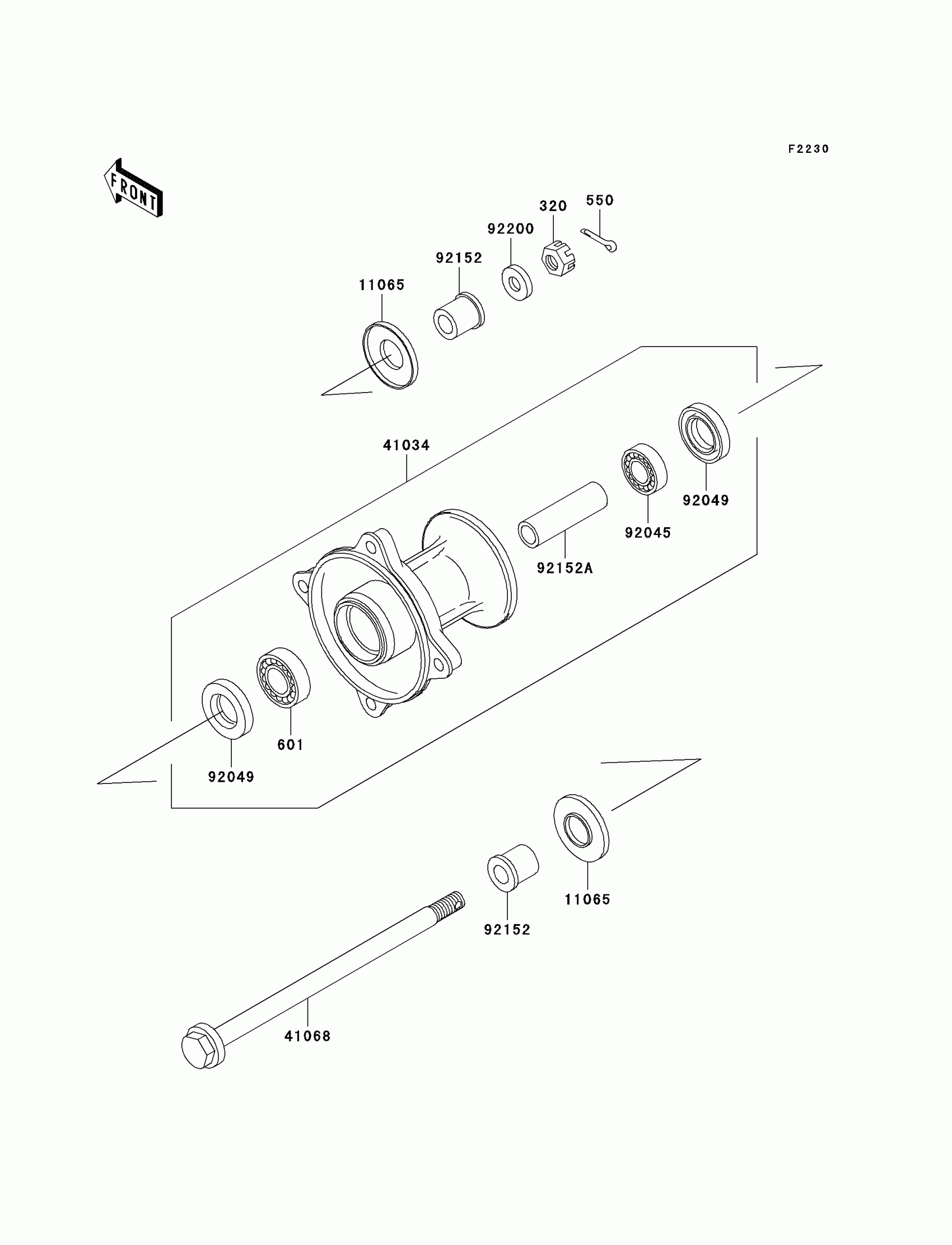

2004 Kawasaki KX65 Front Hub Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

320

NUT-CASTLE

320G1200

1
Out of stock

550

PIN-COTTER,3.0X25

550D3025

1
Out of stock

601

1

$23.98

In stock

11065

CAP

11065-1137

1

$3.25

In stock

41034

1

$237.57

In stock

41068

AXLE,FR

41068-1418

1

$29.78

In stock

92045

1

$24.47

In stock

92049

SEAL-OIL,TC20376.5

92049-1257

1
Out of stock

92152

COLLAR,AXLE,L=15.5

92152-1196

1

$8.13

In stock

92152A

1

$5.54

In stock

92200

WASHER,12.3X23X2.3

92200-1004

1
Out of stock
