Description

Price

39007

ARM-SUSP,UNI TRAK

39007-1299

$169.33

42036A

SLEEVE

42036-1351

$8.94

42036B

SLEEVE,12X18X40

42036-1364

$7.30

42036C

SLEEVE,12X18X61

42036-1370

$17.19

46102

ROD,SUSPENSION,L=88.3

46102-1430

$45.88

46102B

ROD,SUSPENSION,L=87.3

46102-1431

$21.03

46102C

ROD,SUSPENSION,L=86.3

46102-1432

$43.69

46102F

ROD,SUSPENSION,L=85.3

46102-1433

$43.56

92001

BOLT,FLANGED,10X44

92001-1499

$4.37

92001A

BOLT,FLANGED,12X88

92001-1693

$14.76

92015

NUT,LOCK,FLANGED,12MM

92015-1433

$7.04

92046

BEARING-NEEDLE,18BM2416

92046-1144

$29.83

92046A

BEARING-NEEDLE,16BM2212

92046-1192

$14.31

92046B

BEARING-NEEDLE,HK1812

92046-1271

$11.61

92049

SEAL-OIL

92049-1328

$25.59

92093

SEAL

92093-1436

$5.77

92151

BOLT,FLANGED,12X67

92151-1766

$8.29

92151A

BOLT,FLANGED,10X54

92151-1785

$3.69

92152

COLLAR

92152-1139

$7.04

92210

NUT,LOCK,10MM

92210-1184

$4.83

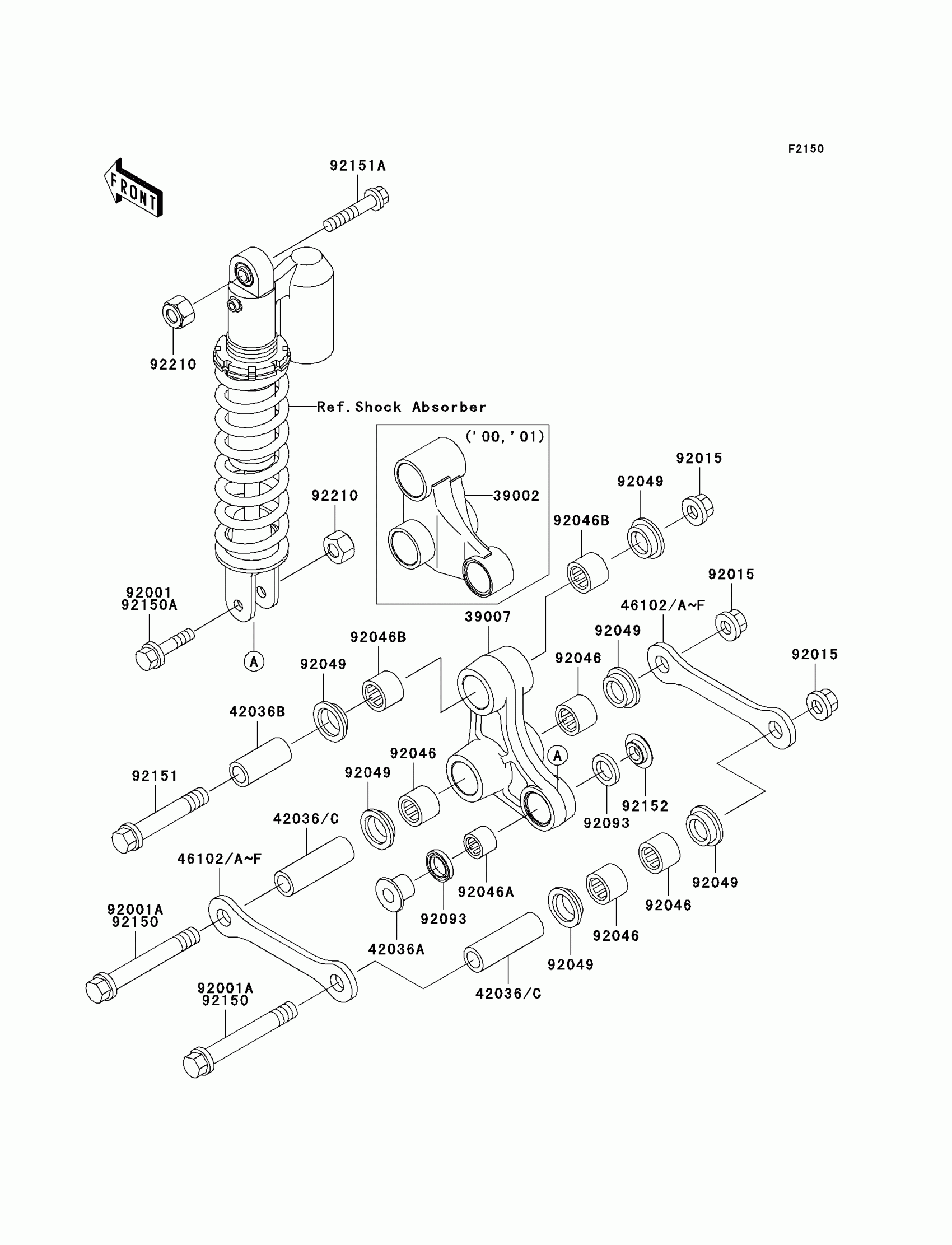

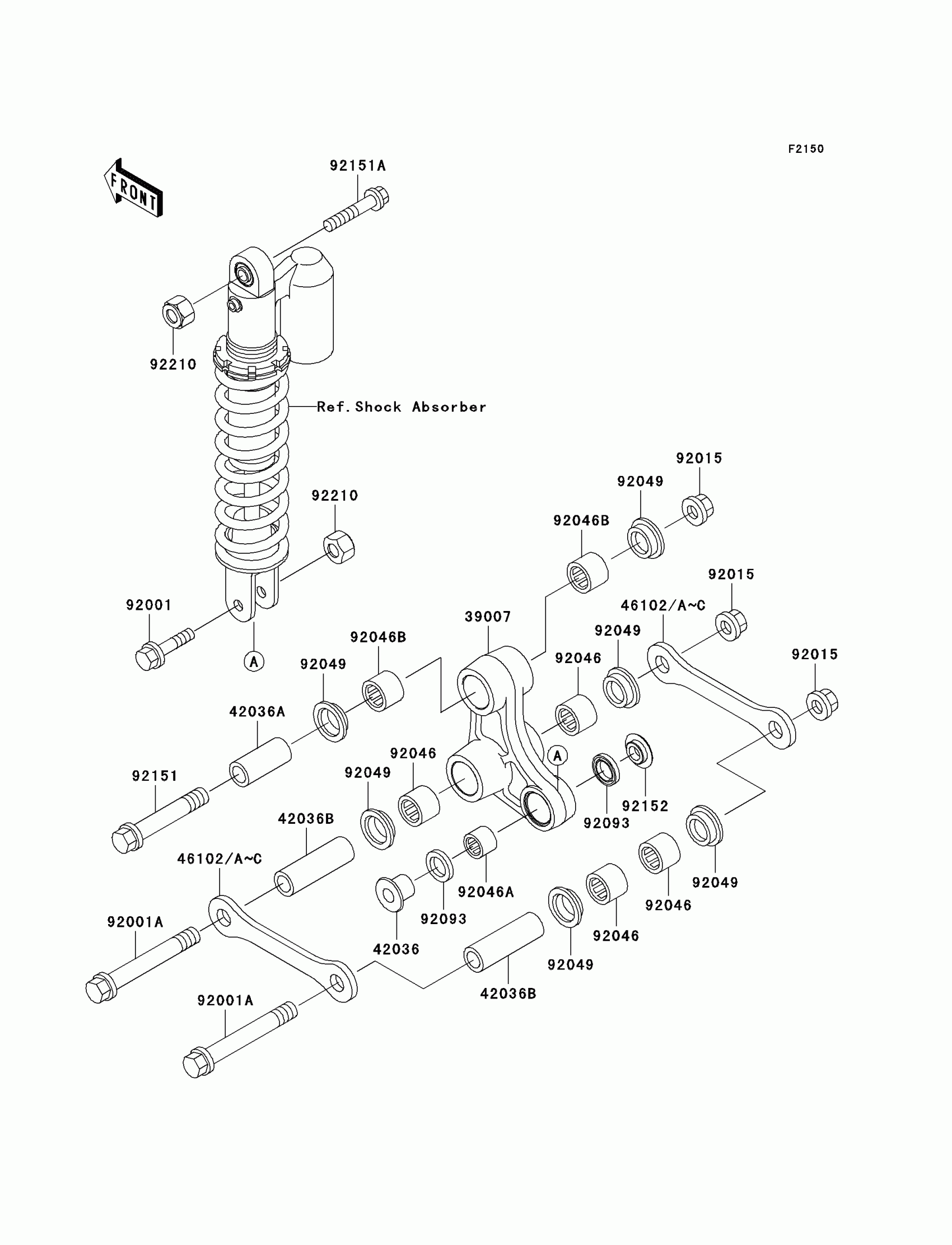

Kawasaki KX65 Rear Suspension Diagram
