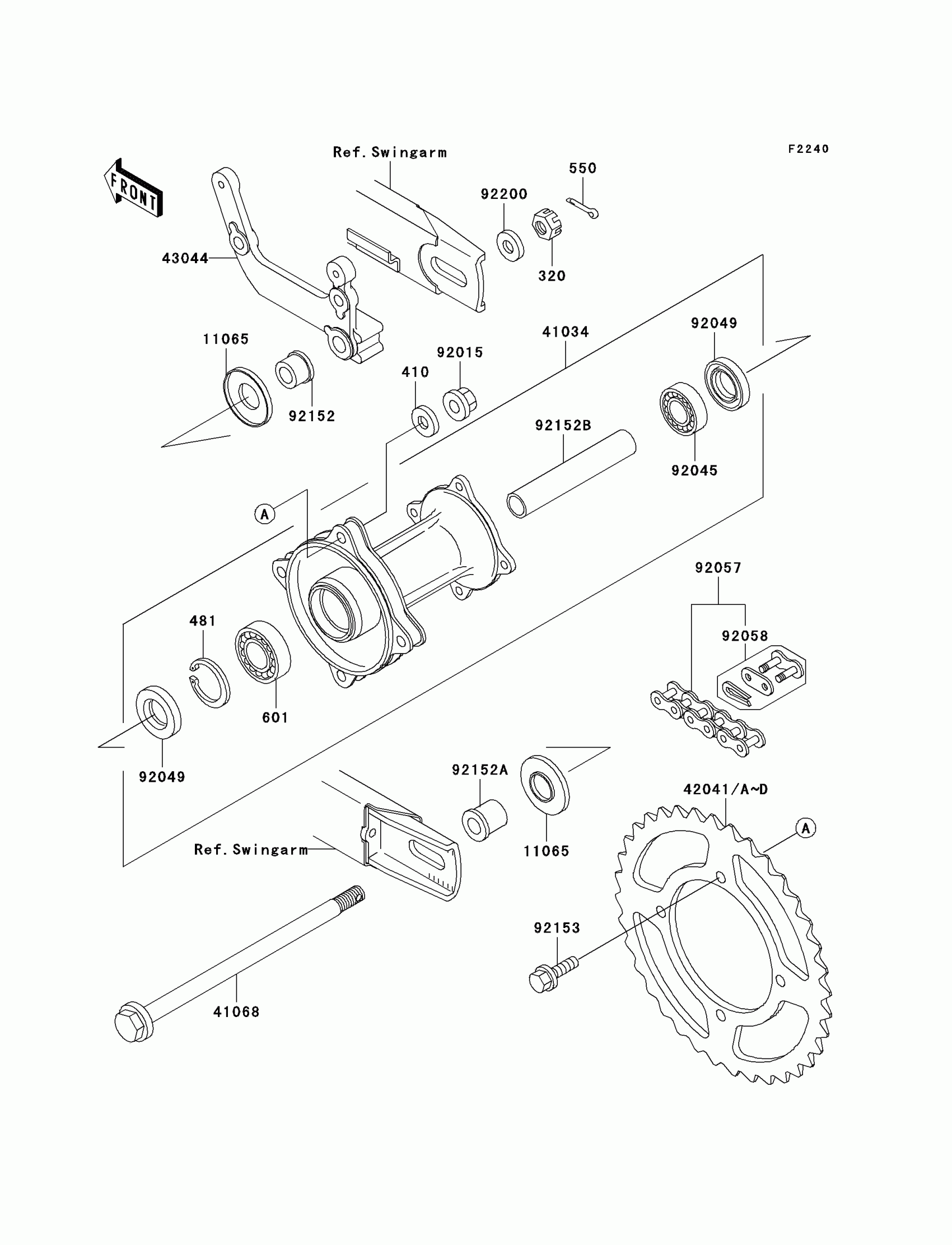

Kawasaki KX65 Rear Hub Diagram

#

Description
Price

320

NUT-CASTLE

320G1200

Unavailable

410

WASHER PLAIN 8MM

410B0800

Unavailable

481

CIRCLIP-TYPE-C,37MM

481J3700

$2.37

550

PIN-COTTER,3.0X25

550D3025

Unavailable

601

BEARING-BALL,#6301UUC3

601B6301UU

$23.98

11065

CAP

11065-1137

$3.25

41034

DRUM-ASSY,REAR BRAKE

41034-1303

$278.46

41068

AXLE,RR

41068-1419

$30.45

42041A

SPROCKET-HUB,45T

42041-1526

$66.65

42041C

SPROCKET-HUB,46T

42041-1527

$66.65

42041D

SPROCKET-HUB,47T

42041-1528

$66.65

42041F

SPROCKET-HUB,48T

42041-1529

$66.65

42041G

SPROCKET-HUB,49T

42041-1549

$71.08

43044

HOLDER-COMP-CALIPER,RR

43044-1127

$110.88

92015

NUT,8MM

92015-1432

$5.21

92045

BEARING-BALL,TMB201LLUC3/2A

92045-1062

$24.47

92049

SEAL-OIL,TC20376.5

92049-1257

$9.02

92057A

CHAIN,DRIVE,DID420MBK1X110L

92057-1504

$47.89

92058

JOINT-CHAIN,DRIVE

92058-1073

$11.56

92152

COLLAR,AXLE,L=15.5

92152-1196

$8.13

92152A

COLLAR,RR AXLE,L=22

92152-1198

$8.66

92152B

COLLAR,RR BRAKE DRUM,L=89

92152-1199

$11.15

92153

BOLT,FLANGED,8X28

92153-1101

$3.97

92200

WASHER,12.3X23X2.3

92200-1004

$3.72
