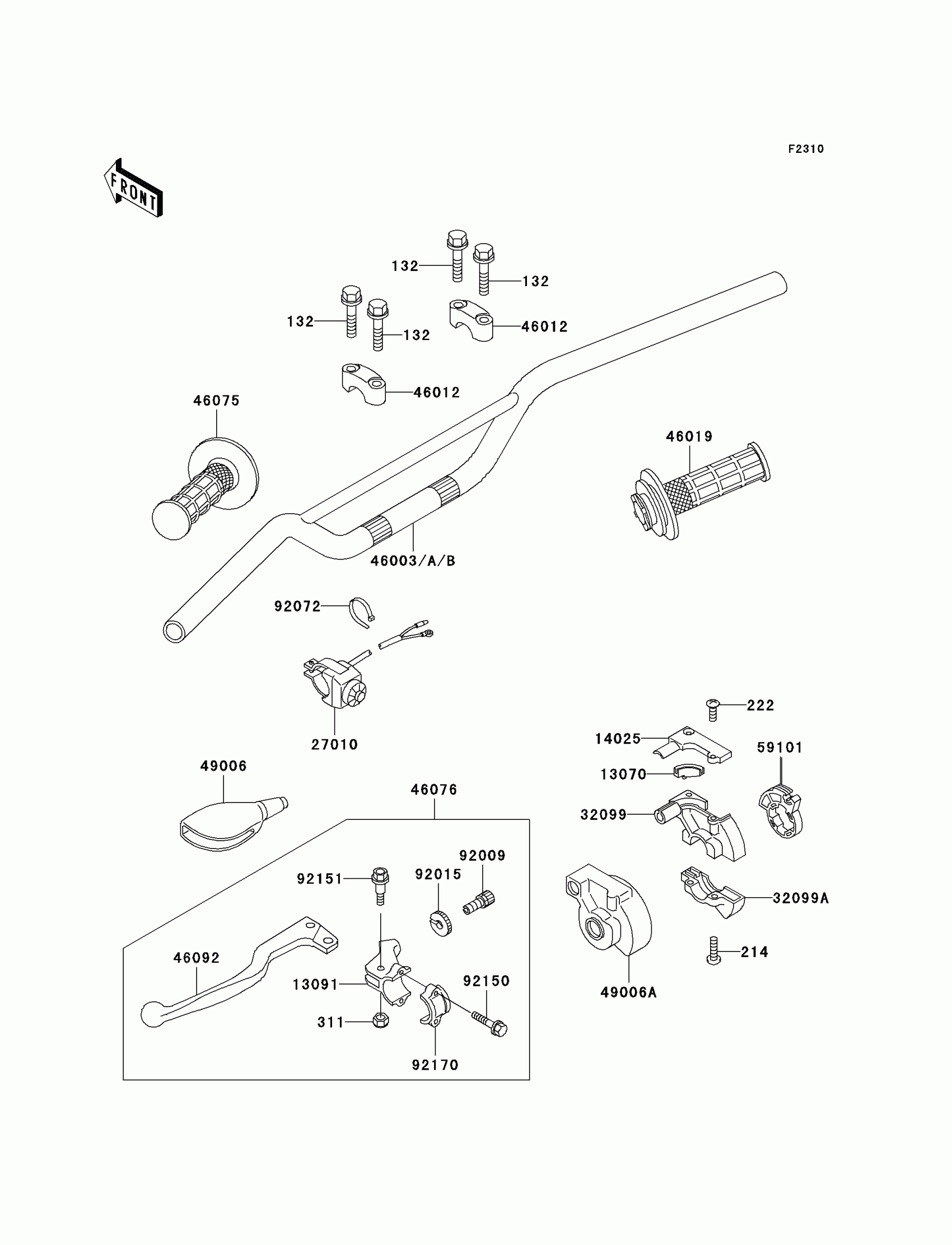

Kawasaki KX65 Handlebar Diagram

#

Description
Price

132

BOLT-FLANGED-SMALL,8X30

132G0830

Unavailable

214

SCREW-PAN+-,5X18

214C0518

$2.80

222

SCREW-CSK-RD-CROS,4X12

222E0412

$1.85

311

NUT-HEX

311B0500

$0.47

13070

GUIDE,THROTTLE

13070-1074

Unavailable

13091

HOLDER,CLUTCH LEVER

13091-1728

$52.23

14025

COVER,THROTTLE CASE UPP

14025-1646

$7.13

27010

SWITCH,ENGINE STOP

27010-1415

$59.79

32099

CASE,THROTTLE UPP

32099-1036

$31.63

32099A

CASE,THROTTLE LWR

32099-1044

Unavailable

46003B

HANDLE,SILVER

46003-1577-CE

$87.76

46012

HOLDER-HANDLE,UPP

46012-1191

$34.54

46019

GRIP-ASSY,THROTTLE

46019-1054

$31.90

46075

GRIP,LH

46075-1024

$20.79

46076

LEVER-ASSY-GRIP,CLUTCH

46076-1202

$38.74

46092

LEVER-GRIP,CLUTCH

46092-1165

$12.10

49006

BOOT,LEVER HOLDER

49006-1017

$14.12

49006A

BOOT,THROTTLE CASE

49006-1097

$13.56

59101

REEL,THROTTLE

59101-1110

$10.83

92009

SCREW,CABLE ADJUST,8MM

92009-1435

$12.40

92015

NUT,CABLE ADJUST LOCK,8MM

92015-1596

$6.75

92072

BAND,L=123

92072-030

$3.81

92150

BOLT

92150-1474

$3.81

92151

BOLT,LEVER SET,5MM

92151-1103

$4.93

92170

CLAMP,LEVER HOLDER

92170-1226

$25.61
