1988 Kawasaki KX60 Radiator Diagram

← All diagrams

Find the part on the Radiator diagram for your 1988 Kawasaki KX60, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

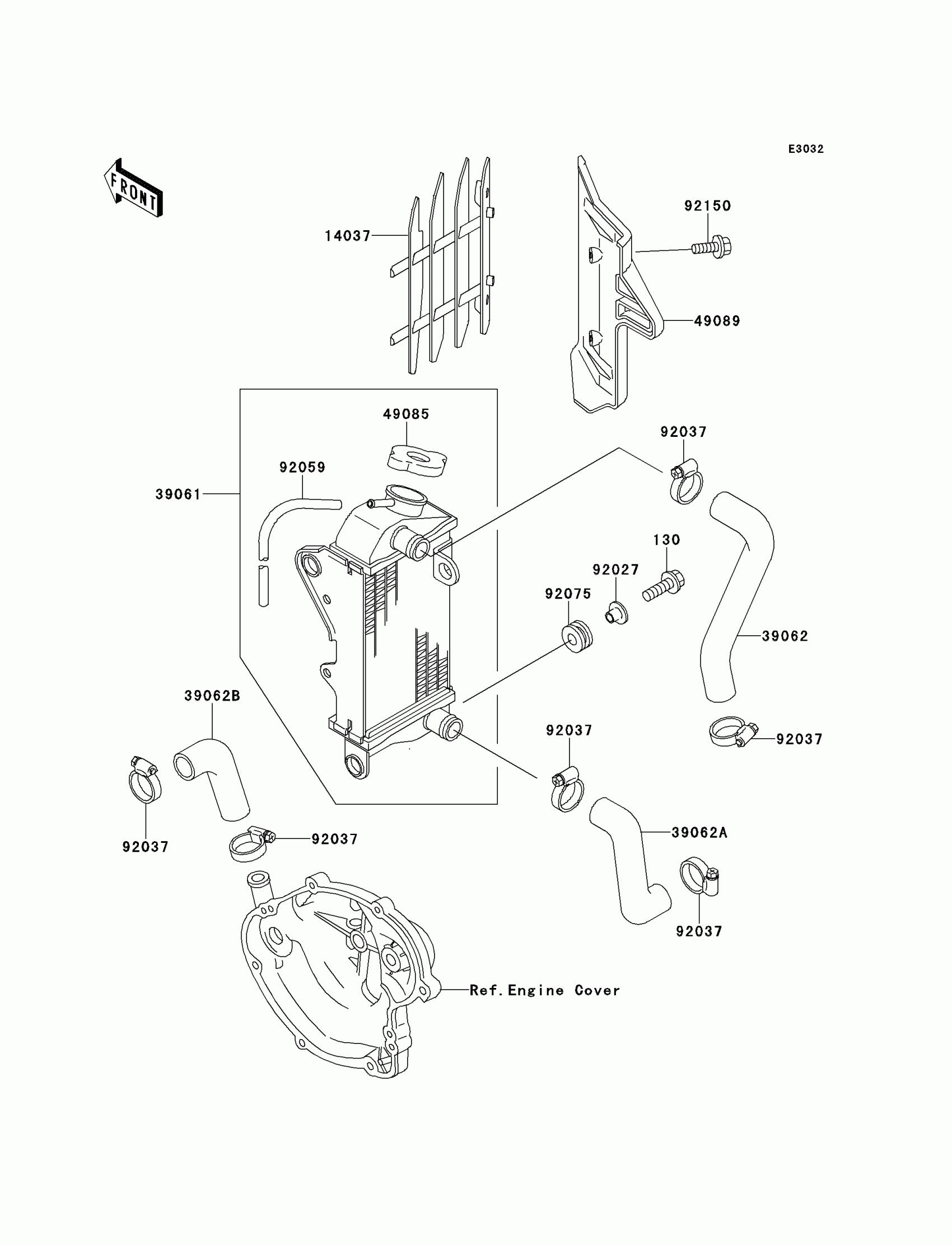

1988 Kawasaki KX60 Radiator Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

14037A

SCREEN,EBONY

14037-1100-6C

1

$23.36

In stock

39061

RADIATOR-ASSY

39061-1059

1

$614.27

In stock

39062

1

$40.73

In stock

39062A

1

$31.00

In stock

39062B

HOSE-COOLING

39062-1078

1

$24.24

In stock

49085

CAP-ASSY-PRESSURE

49085-1003

1

$33.98

In stock

49089C

SHROUD-ENGINE,RH,L.GREEN

49089-5031-6W

1

$68.26

In stock

92009

SCREW,6X14,WHITE

92009-1287

1
Out of stock

92027

COLLAR

92027-1045

1

$4.37

In stock

92037

CLAMP,COOLING HOSE

92037-1589

1

$14.60

In stock

92059

TUBE,5X9X600

92059-1259

1

$7.65

In stock

92075

DAMPER

92075-1185

1

$4.17

In stock

130

BOLT-FLANGED,6X16

130G0616

1
Out of stock
