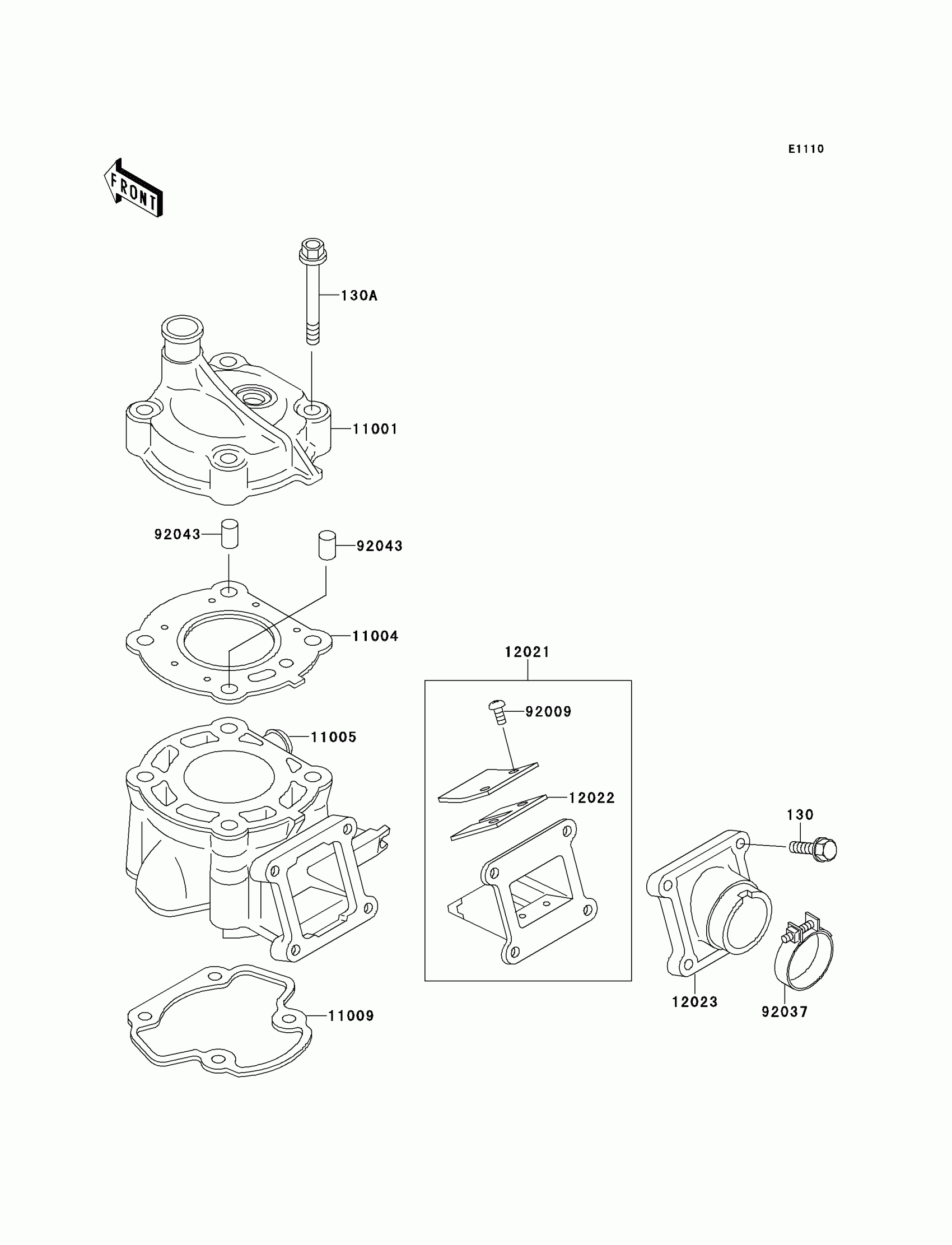

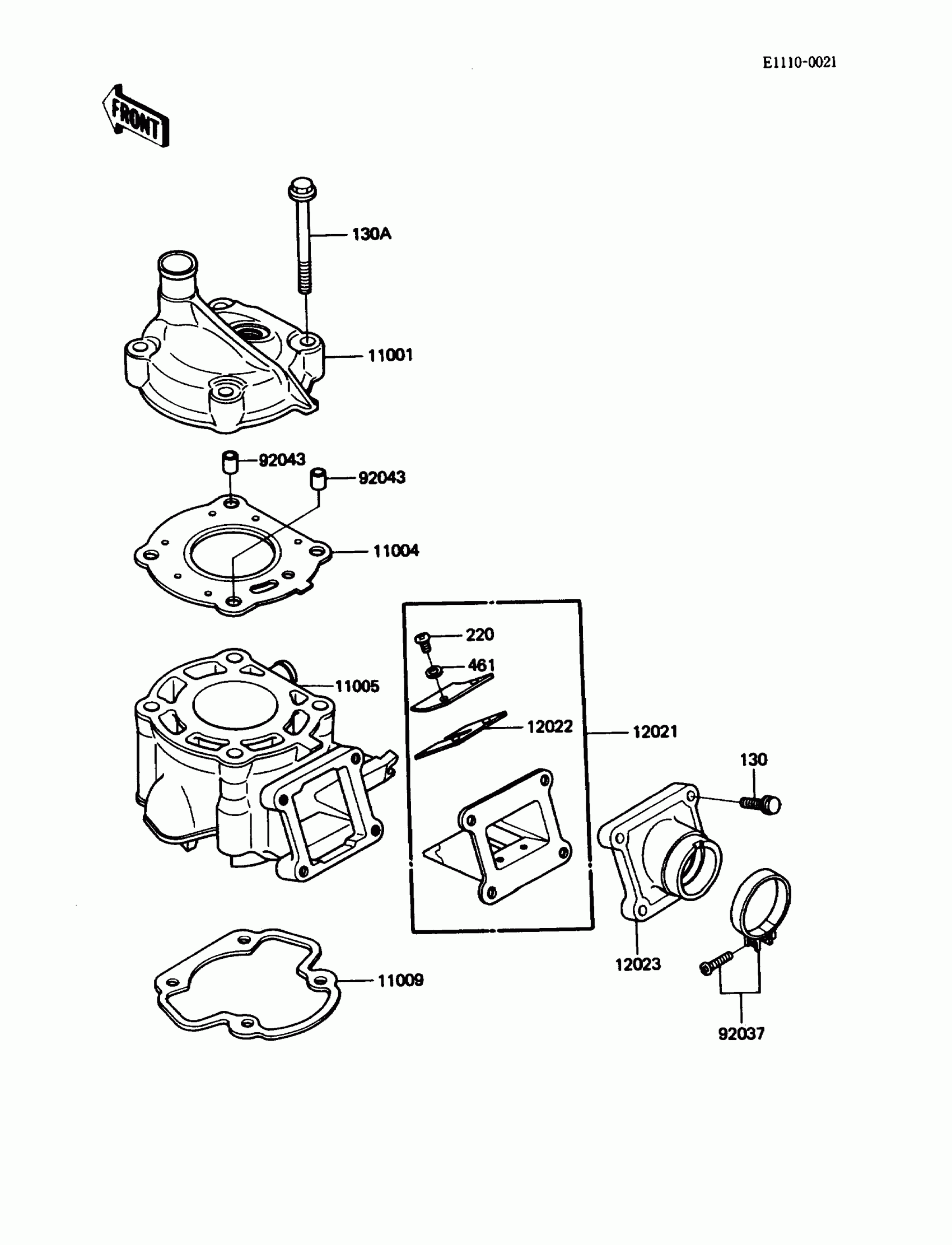

Kawasaki KX60 Cylinder Head/Cylinder Diagram

Description

Price

11001

HEAD-CYLINDER

11001-1175

$216.01

11004

GASKET-HEAD

11004-1118

Unavailable

11005

CYLINDER-ENGINE

11005-1378

$613.46

11009

GASKET,CYLINDER BASE

11009-1310

Unavailable

12021

VALVE-ASSY-REED

12021-1015

$137.24

12022

VALVE-REED,T=0.42

12022-1013

$17.85

12023

HOLDER-VALVE,REED

12023-1019

$76.99

92037

CLAMP

92037-1305

$6.89

92043

PIN,DOWEL,10X14

92043-1037

$0.66

130

BOLT-FLANGED,6X20

130G0620

Unavailable

130A

BOLT-FLANGED

130P08105

Unavailable

220

SCREW-PAN-CROS,3X8

220B0308

$0.54

461

WASHER SPRING 3MM

461F0300

Unavailable
