1988 Kawasaki KX60 Crankshaft/piston Diagram

← All diagrams

Find the part on the Crankshaft/piston diagram for your 1988 Kawasaki KX60, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

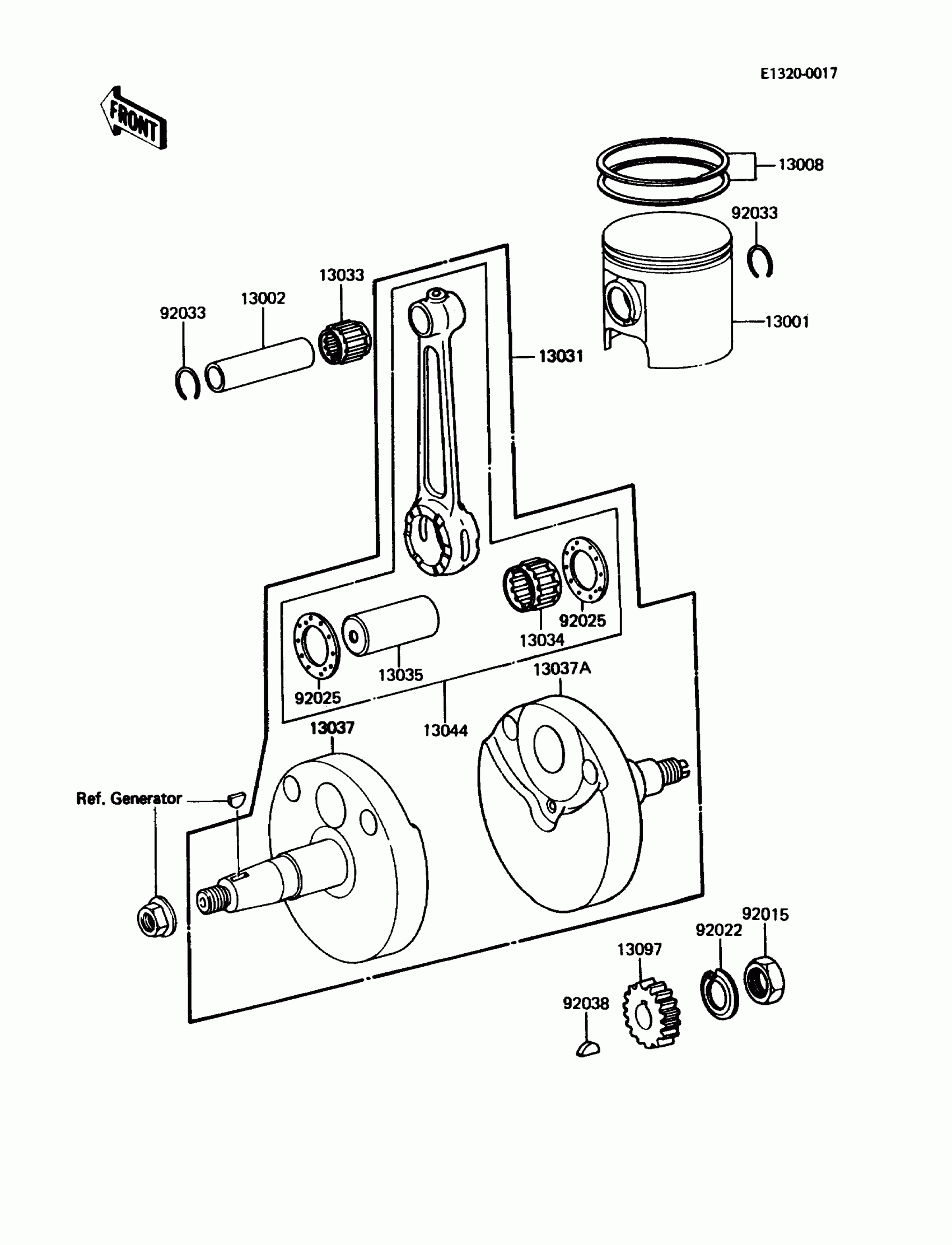

1988 Kawasaki KX60 Crankshaft/piston Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

13001

PISTON-ENGINE,(B)

13001-1080

1
Out of stock

13002

PIN-PISTON

13002-1020

1
Out of stock

13008

RING-SET-PISTON

13008-5050

1
Out of stock

13031

CRANKSHAFT-COMP

13031-1169

1
Out of stock

13033

BEARING-NEEDLE,72KTV030

13033-028

1
Out of stock

13034

BEARING-BIG END,SKT202714EGS

13034-1033

1
Out of stock

13035

PIN-CRANK

13035-1002

1

$23.73

In stock

13037

CRANKSHAFT,LH

13037-1204

1

$241.79

In stock

13037A

CRANKSHAFT,RH

13037-1220

1

$213.38

In stock

13044

SET-CONNECTING ROD

13044-5024

1

$145.22

In stock

13097

1

$69.57

In stock

92015

NUT,12MM

92015-006

1
Out of stock

92022

WASHER,CLAW,12.5X25X0.8

92024-003

1
Out of stock

92025

SHIM,20X34.5X1.0

92025-005

1
Out of stock

92033

1

$3.10

In stock

92038

KEY,WOODRUFF

92038-003

1

$4.23

In stock
