1984 Kawasaki KX60 Crankcase Diagram

← All diagrams

Find the part on the Crankcase diagram for your 1984 Kawasaki KX60, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

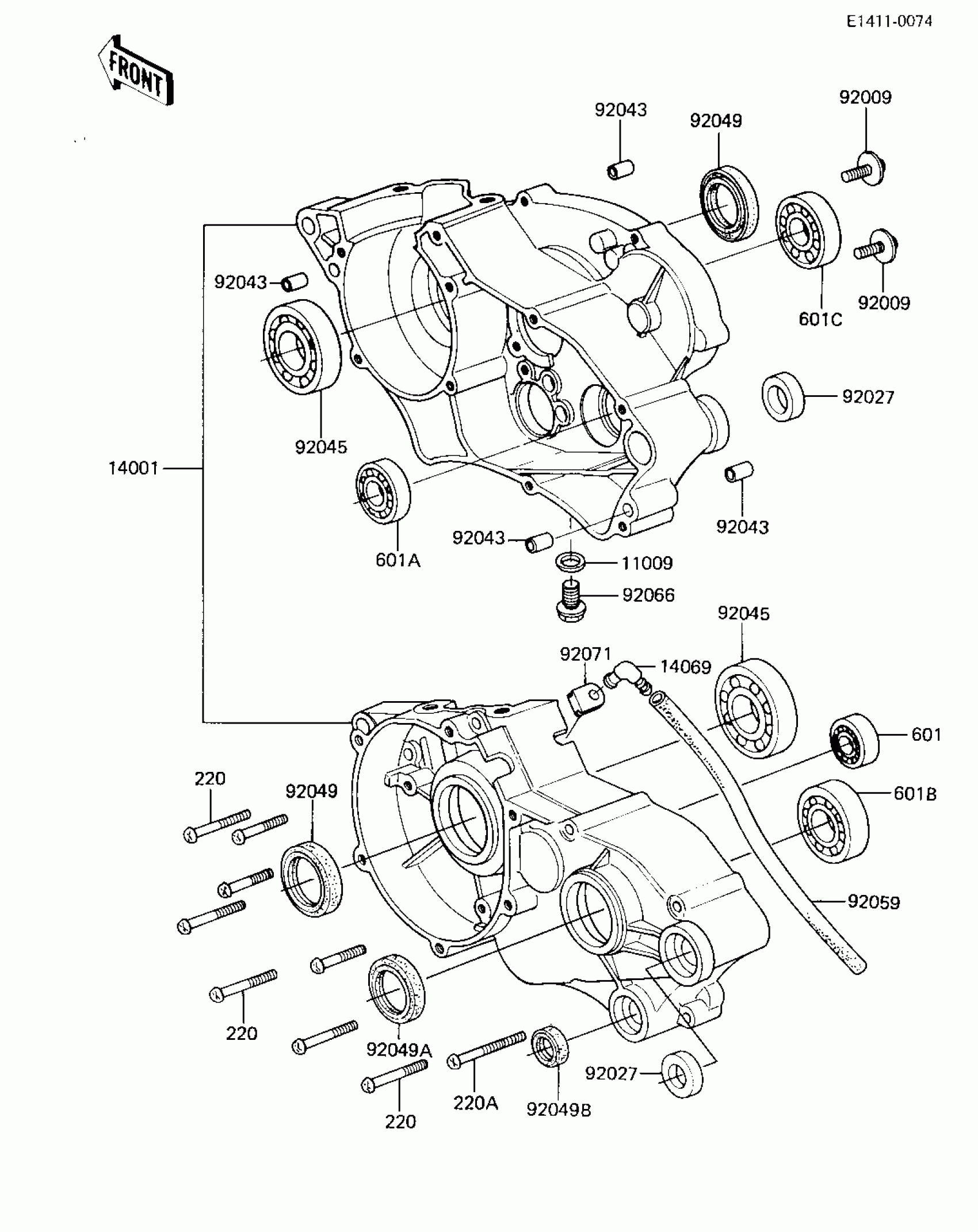

1984 Kawasaki KX60 Crankcase Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11009

GASKET,10.5X16X1

92065-058

1

$3.16

In stock

14001

SET-CRANKCASE

14001-5151

1
Out of stock

14069

BREATHER ASSY

14069-1001

1

$22.77

In stock

92009

SCREW,6X15

92009-1103

1
Out of stock

92027

COLLAR,12.1X26X6

92027-1423

1

$9.49

In stock

92043

PIN,DOWEL,6.3X8X14

92042-007

1

$4.51

In stock

92045

1

$27.96

In stock

92049

OIL SEAL,TBJ-20407

92049-1065

1
Out of stock

92049A

SEAL-OIL,SC25376

92050-013

1
Out of stock

92049B

SEAL-OIL,TB13225.5

92051-005

1
Out of stock

92059

TUBE,6X9X750

92059-1372

1

$14.65

In stock

92066

PLUG,DRAIN

92066-1241

1

$5.39

In stock

92071

GROMMET,BREATHER

92071-042

1

$3.39

In stock

220

1

$1.44

In stock

220A

SCREW-PAN-CROS,6X60

220B0660

1
Out of stock

601

1

$12.85

In stock

601A

BEARING BALL #6002

601B6002

1
Out of stock

601B

1

$9.84

In stock

601C

1

$11.12

In stock
Crankshaft/piston →
