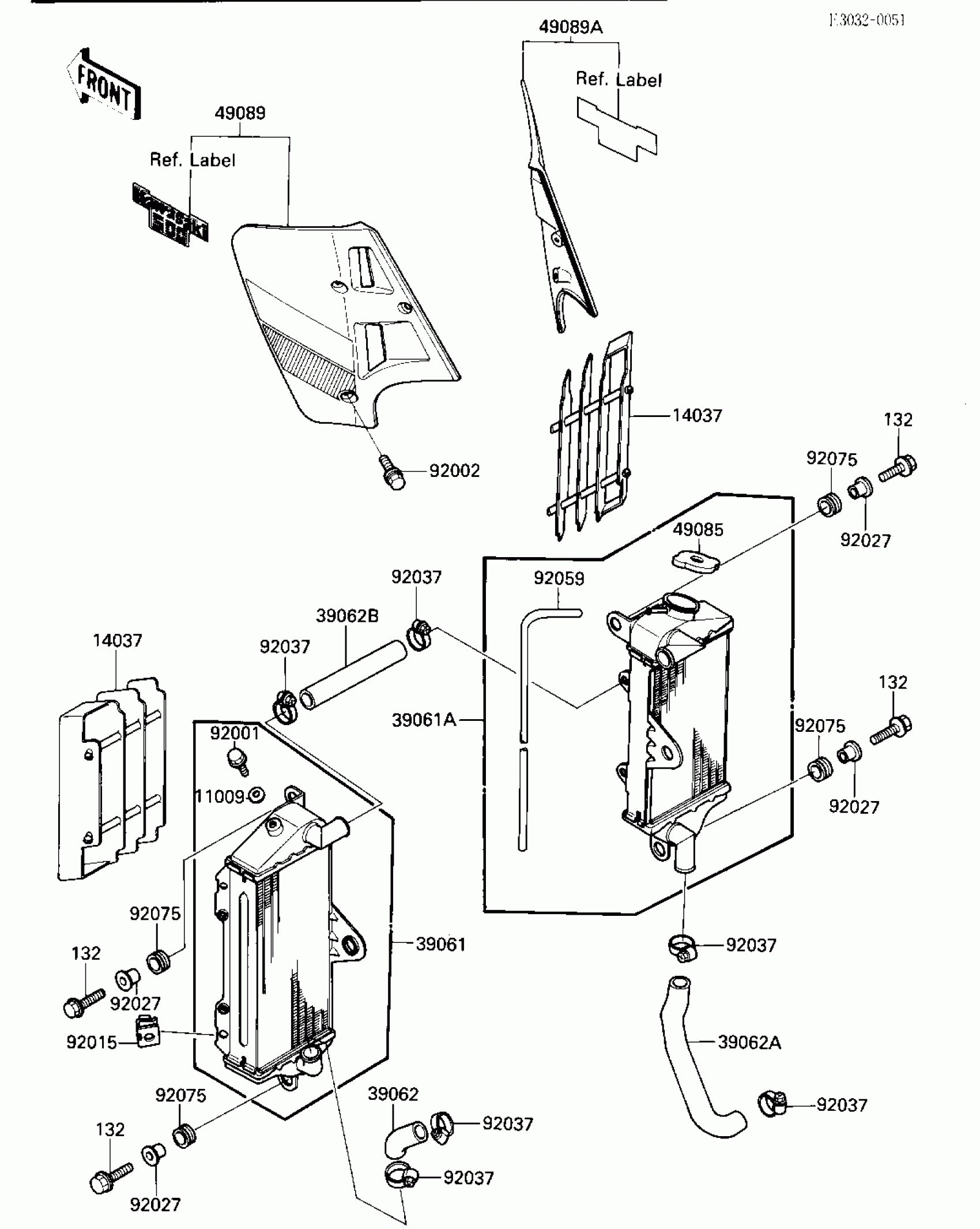

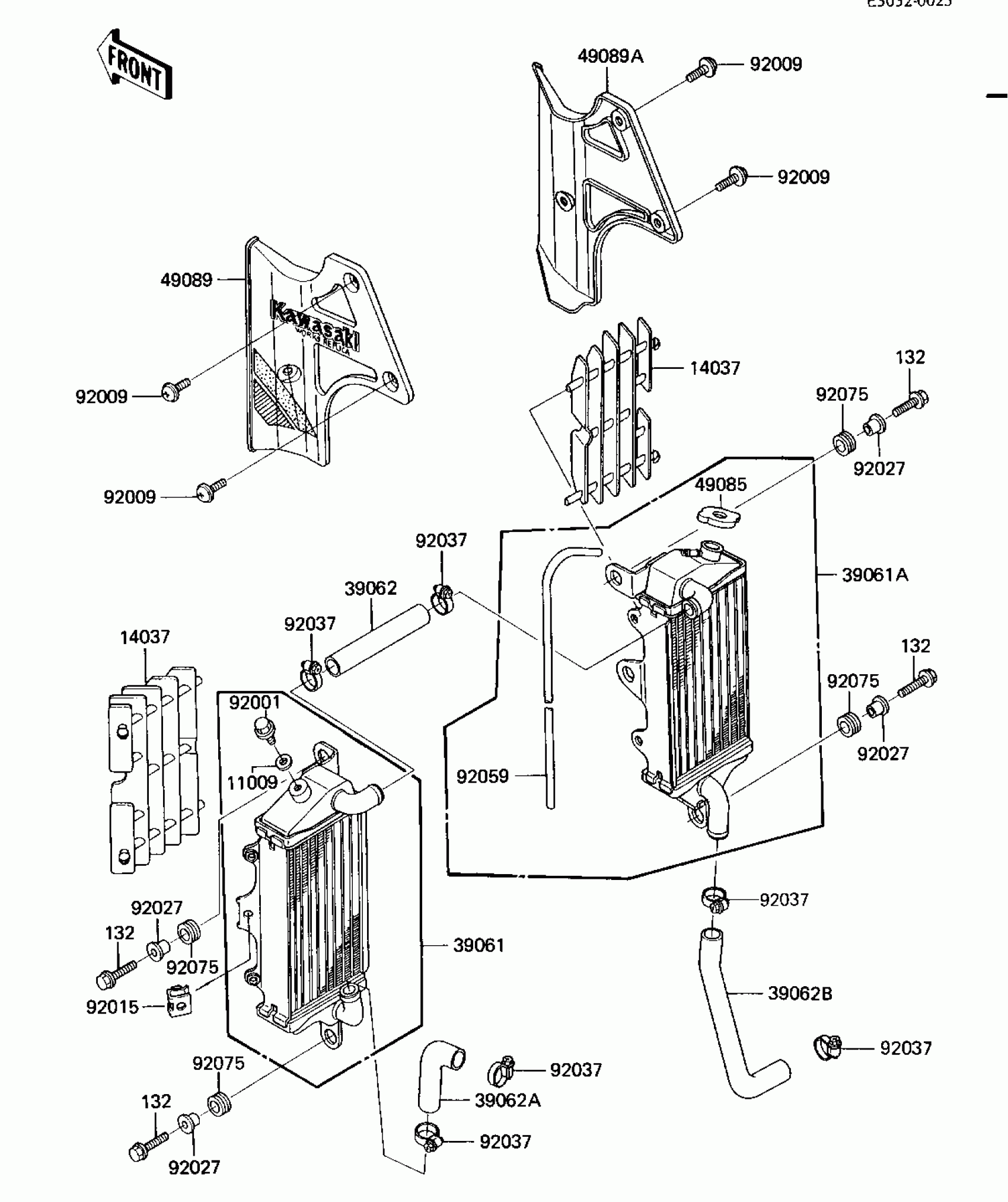

Kawasaki KX500 RADIATORS Diagram

#

Description
Price

11009

GASKET,DRAIN BOLT

11009-1152

$7.44

14037

SCREEN,RADIATOR,EBON

14037-1077-6C

Unavailable

39061

RADIATOR-ASSY,LH

39061-1066

$468.19

39061A

RADIATOR-ASSY,RH

39061-1067

$469.06

39062

HOSE-COOLING,RADIATO

39062-1096

$24.03

39062A

HOSE-COOLING

39062-1098

Unavailable

39062B

HOSE-COOLING

39062-1099

Unavailable

49085

CAP-ASSY-PRESSURE

49085-1003

$33.98

49089

SHROUD-ENGINE,LH,L.G

49089-5004-6W

Unavailable

49089A

SHROUD-ENGINE,RH,L.G

49089-5005-6W

Unavailable

92001

BOLT,RADIATOR DRAIN

92002-1682

$19.01

92009

SCREW,6X10,WHITE

92009-1286

$3.43

92015

NUT

92015-1487

$3.80

92027

COLLAR

92027-194

$4.37

92037

CLAMP,COOLING HOSE

92037-1589

$14.60

92059

TUBE,5X9X800

92059-1383

$7.65

92075

DAMPER RUBBER,RR FENR

92075-209

$3.72

132

BOLT-FLANGED-SMALL

132G0620

Unavailable
