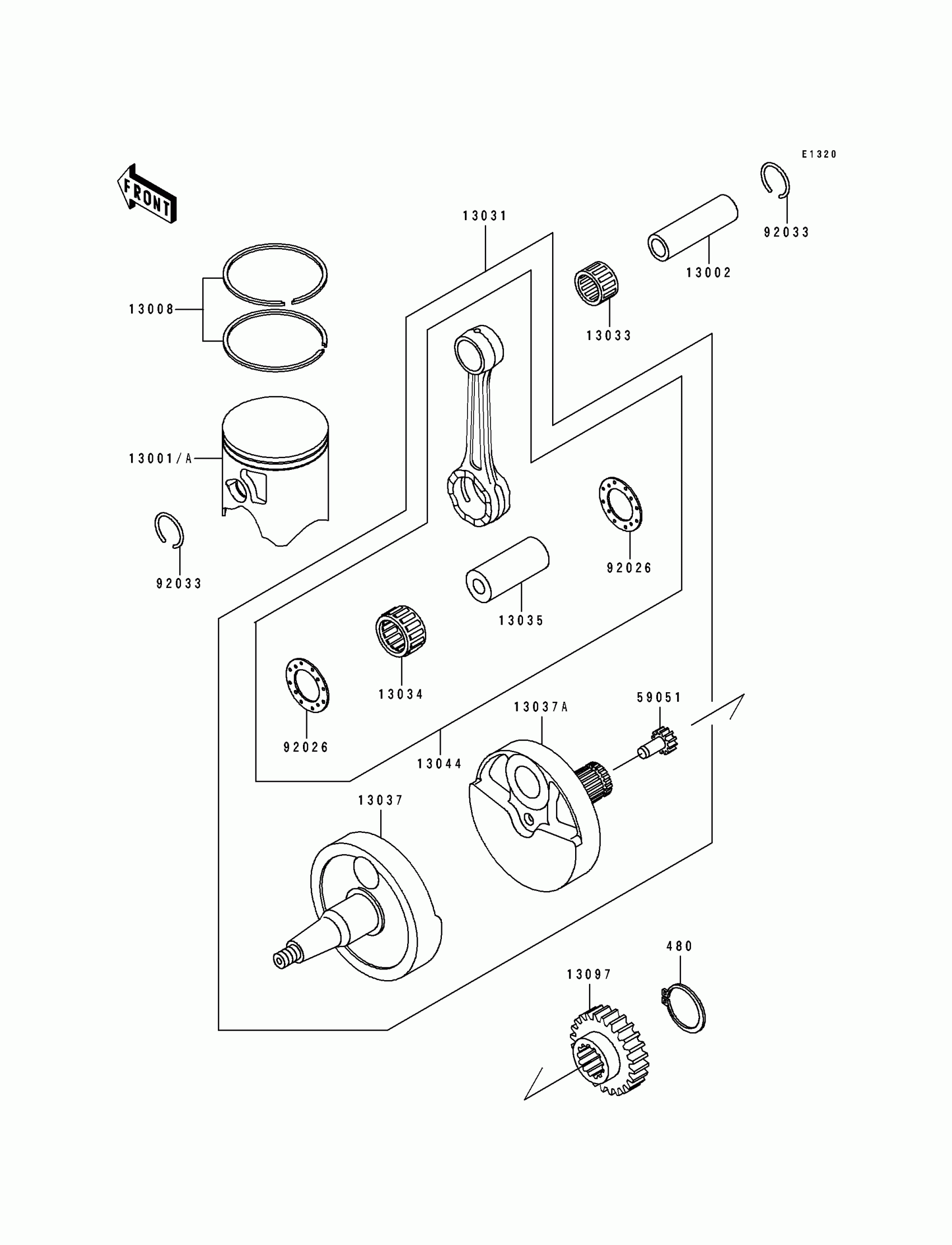

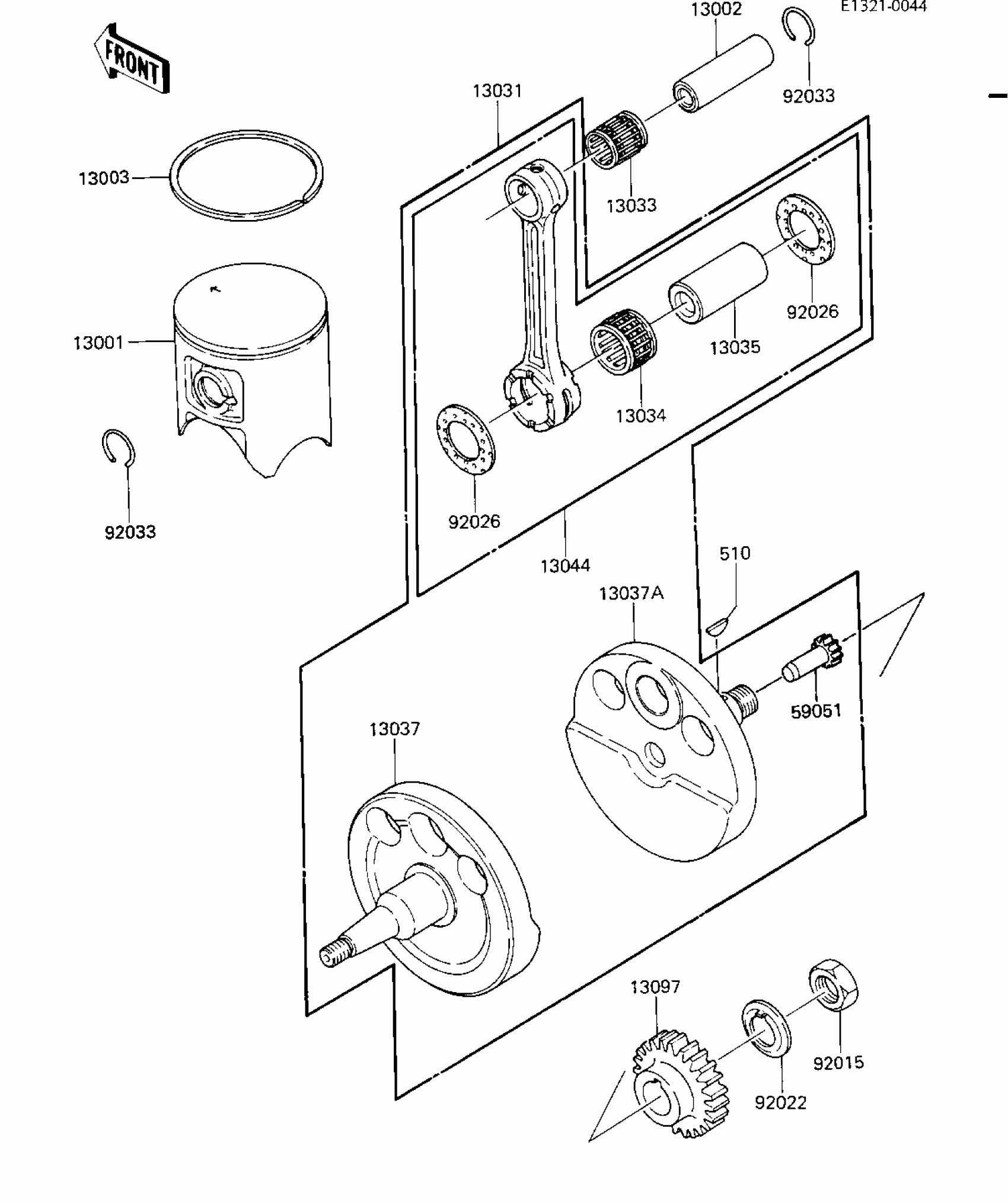

Kawasaki KX500 CRANKSHAFT/PISTON Diagram

Description

Price

13001

PISTON-ENGINE

13001-1199

Unavailable

13002

PIN-PISTON

13002-031

Unavailable

13003

RING-PISTON TOP

13003-1113

Unavailable

13031

CRANKSHAFT-COMP

13031-1182

Unavailable

13033

BEARING-SMALL END,KTV192425

13033-1055

$31.51

13034

BEARING-BIG END

13034-1051

Unavailable

13035

PIN-CRANK

13035-1008

$72.59

13037

CRANKSHAFT,LH

13037-1143

Unavailable

13037A

CRANKSHAFT-COMP

13031-1182

Unavailable

13044

SET-CONNECTING ROD

13044-5048

Unavailable

13097

GEAR-PRIMARY SPUR,26T

13097-1133

Unavailable

59051

GEAR-SPUR,WATER PUMP,13T

59051-1128

$39.51

92015

NUT,18MM

92015-019

$5.74

92022

WASHER,CLAW,18MM

92022-1378

Unavailable

92026

WASHER,CONROD SIDE

92026-093

$24.78

92033

RING-SNAP,PISTON PIN

92036-008

$0.53

510

WOODRUFF KEY

510A5100

$2.17
