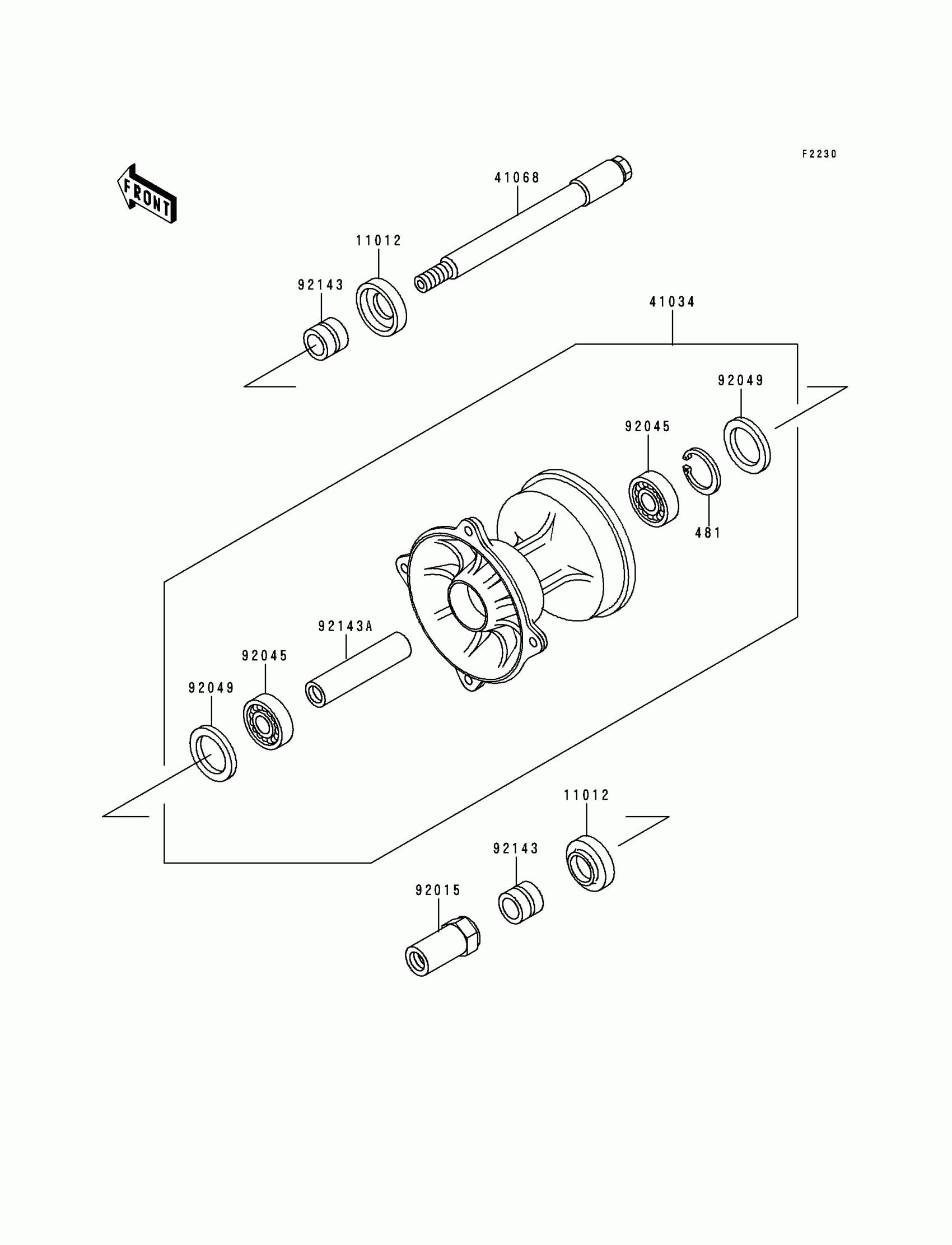

Find the part on the Front HUB diagram for your 1993 Kawasaki KX500, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1993 Kawasaki KX500 Front HUB Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

481

CIRCLIP-TYPE-C,40MM

481J4000

1
Out of stock

11012

CAP,FRONT AXLE

11012-1580

1
Out of stock

41034

1

$510.77

In stock

41068

AXLE,FR

41068-1310

1

$72.07

In stock

92015

NUT,AXLE

92015-1815

1

$55.92

In stock

92045

BEARING-BALL,6203LLX7V2

92045-1238

1
Out of stock

92049

SEAL-OIL,BSNC2 22404

92049-1204

1
Out of stock

92143

COLLAR,FR AXLE,L=18

92143-1297

1

$10.25

In stock

92143A

COLLAR,FR BRAKE DRUM,L=68

92143-1401

1
Out of stock
