2006 Kawasaki KX450F Frame Diagram

← All diagrams

Find the part on the Frame diagram for your 2006 Kawasaki KX450F, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

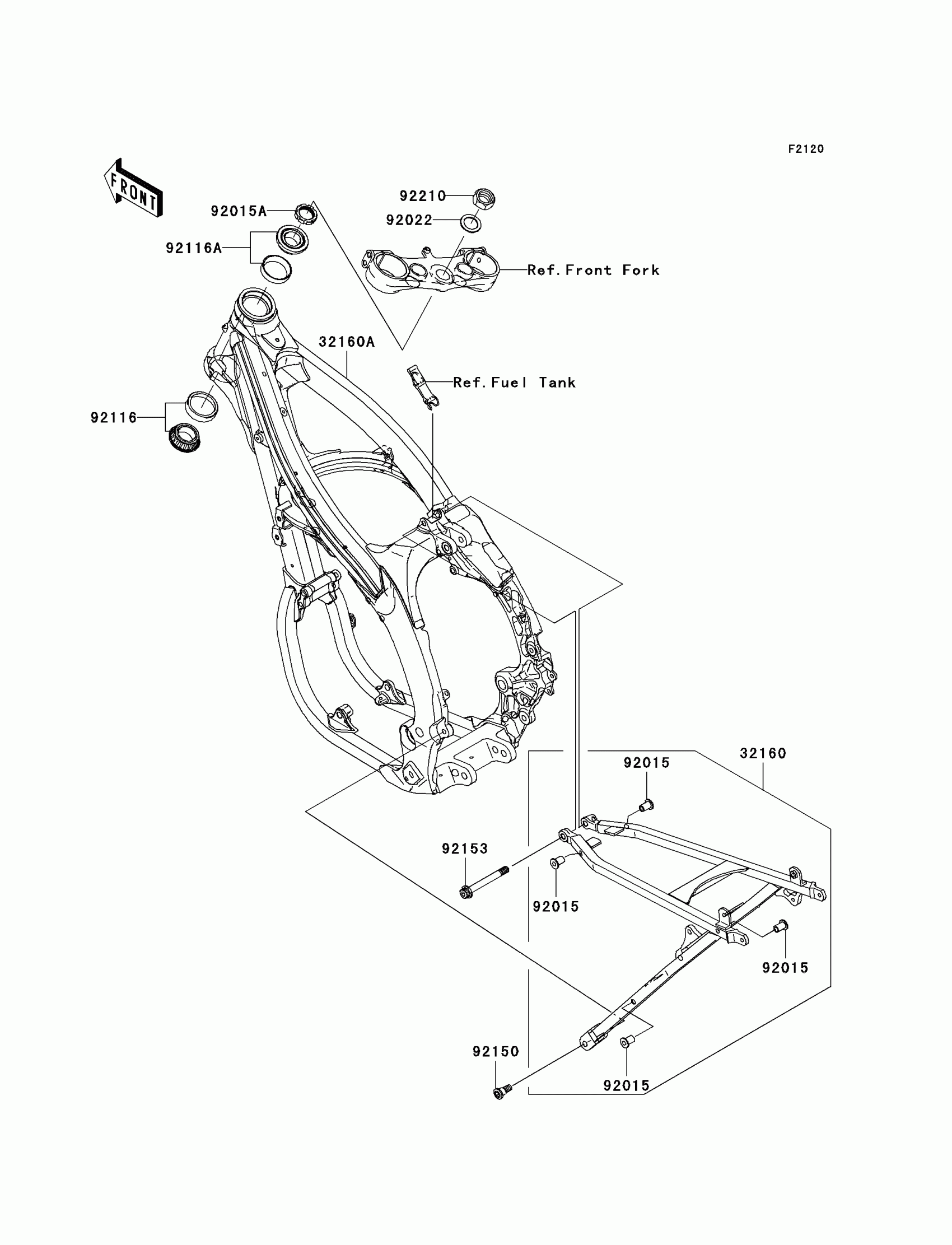

2006 Kawasaki KX450F Frame Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

32160

FRAME-COMP,RR

32160-0153

1
Out of stock

32160A

FRAME-COMP,FR

32160-0155

1

$2,529.27

In stock

92015

NUT,POP,6MM,L=15

92015-1791

1

$3.72

In stock

92015A

1

$14.27

In stock

92022

WASHER,25X36X2.3

92022-250

1
Out of stock

92116

1

$59.23

In stock

92116A

1

$46.70

In stock

92150

BOLT,SOCKET,8X20

92150-1760

1

$5.21

In stock

92153

BOLT,SOCKET,8X74

92153-1326

1
Out of stock

92210

NUT,24MM

92210-0066

1
Out of stock
