2006 Kawasaki KX450F Fenders Diagram

← All diagrams

Find the part on the Fenders diagram for your 2006 Kawasaki KX450F, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

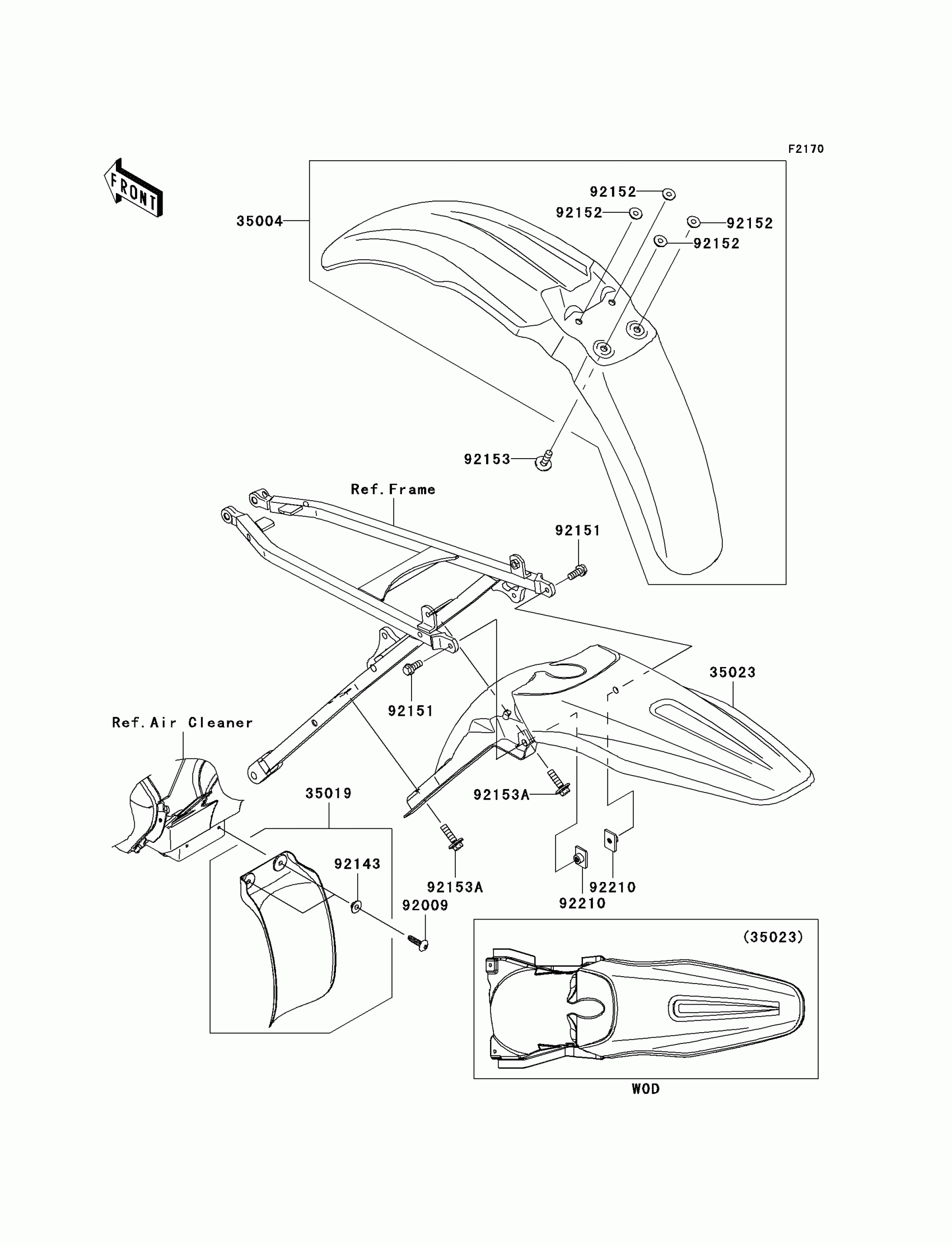

2006 Kawasaki KX450F Fenders Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

35004

FENDER-FRONT,L.GREEN

35004-0050-290

1
Out of stock

35019

FLAP,AIR FILTER

35019-0005

1

$42.12

In stock

35023

FENDER-REAR,L.GREEN

35023-0075-290

1

$73.37

In stock

92009

SCREW,TAPPING,5X20

92009-1993

1
Out of stock

92143

COLLAR

92143-1087

1

$3.11

In stock

92151

BOLT,6X14

92151-1423

1

$0.88

In stock

92152

COLLAR

92152-1422

1

$5.76

In stock

92153

BOLT,6X20

92153-0502

1
Out of stock

92153A

BOLT,FLANGED,6X22

92153-0950

1
Out of stock

92210

NUT,PLATE,6MM

92210-1352

1
Out of stock
