2006 Kawasaki KX450F Footrests Diagram

← All diagrams

Find the part on the Footrests diagram for your 2006 Kawasaki KX450F, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

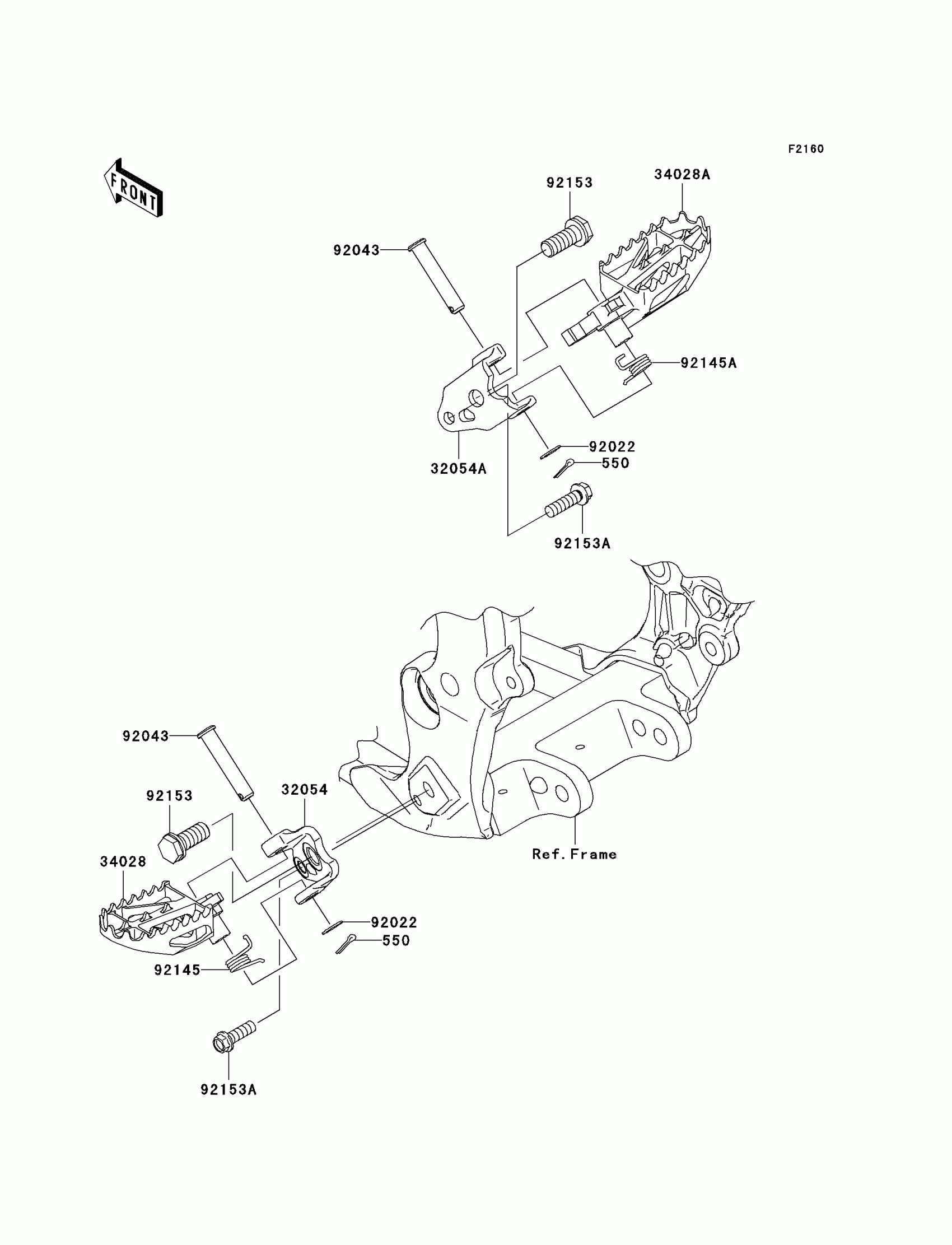

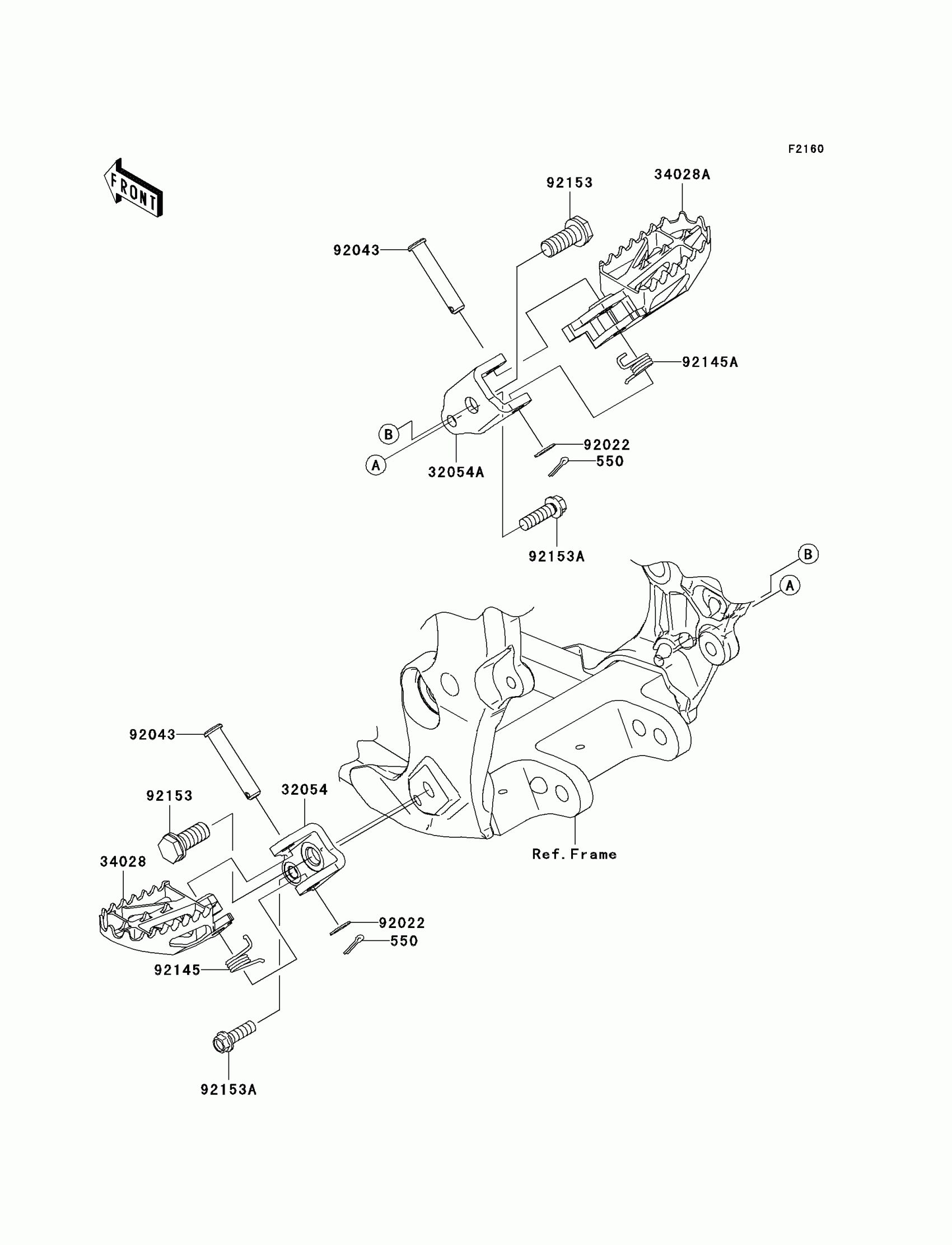

2006 Kawasaki KX450F Footrests Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

550

1

$2.92

In stock

32054

BRACKET-STEP,LH

32054-0018

1

$217.62

In stock

32054A

BRACKET-STEP,RH

32054-0019

1

$217.62

In stock

34028

STEP,LH

34028-0026

1

$225.76

In stock

34028A

STEP,RH

34028-0027

1

$225.76

In stock

92022

WASHER,10.2X16X1

92022-1829

1
Out of stock

92043

PIN,10X53

92043-0090

1

$12.95

In stock

92145

SPRING,STEP,LH

92145-0307

1

$4.66

In stock

92145A

SPRING,STEP,RH

92145-0308

1

$5.15

In stock

92153

BOLT,FLANGED,12X23

92153-0653

1
Out of stock

92153A

BOLT,FLANGED,8X25

92153-0838

1
Out of stock
