2006 Kawasaki KX450F Frame Fittings Diagram

← All diagrams

Find the part on the Frame Fittings diagram for your 2006 Kawasaki KX450F, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

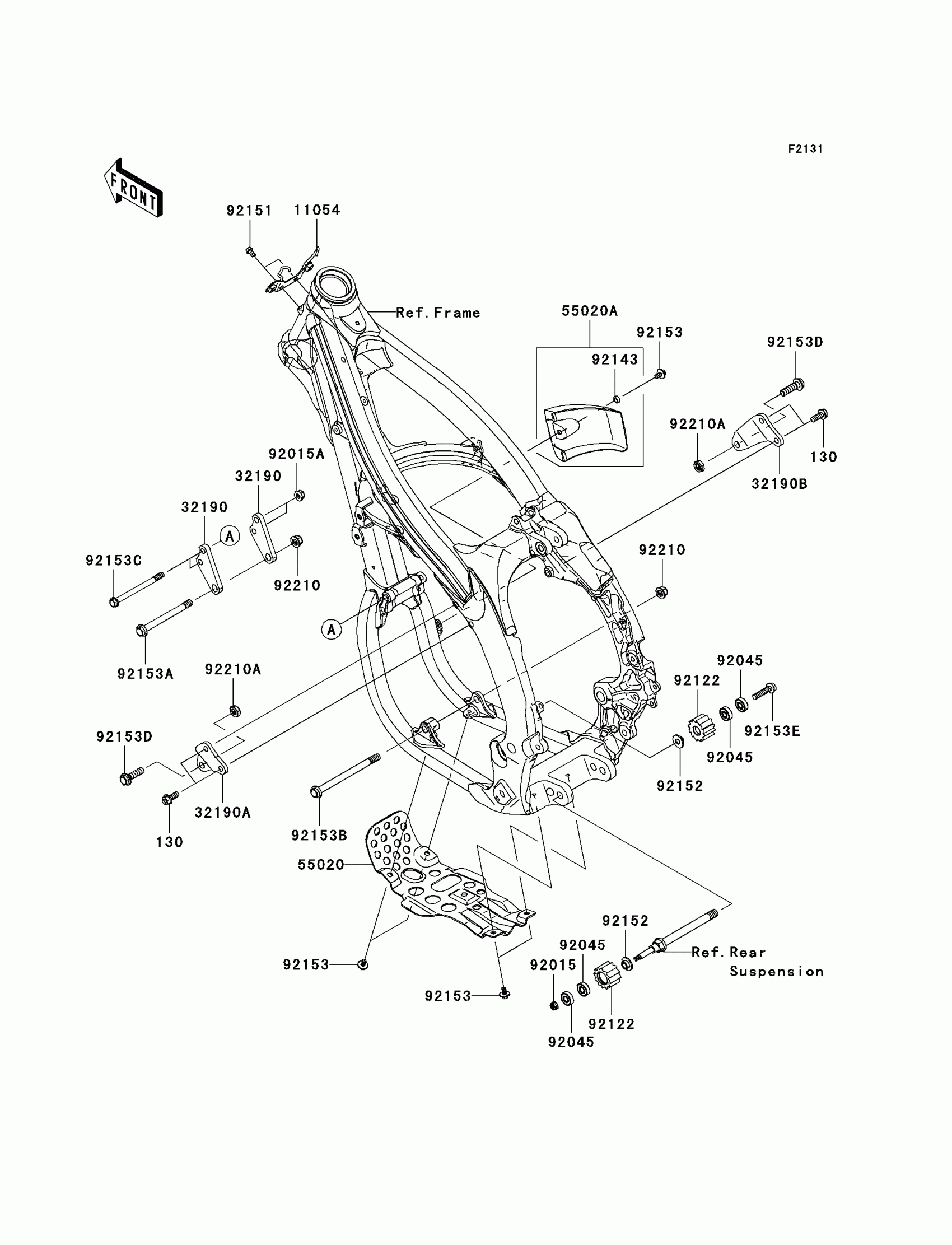

2006 Kawasaki KX450F Frame Fittings Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

130

BOLT-FLANGED,8X20

130P0820

1
Out of stock

11054

BRACKET,IGNITER

11054-0300

1

$21.69

In stock

32190

BRACKET-ENGINE,FR

32190-0232

1

$37.80

In stock

32190A

1

$30.16

In stock

32190B

1

$30.16

In stock

55020

GUARD,SKID

55020-0177

1
Out of stock

55020A

GUARD,ENGINE,RH,WHITE

55020-0179-RZ

1

$37.45

In stock

92015

1

$1.20

In stock

92015A

NUT,8MM

92015-1432

1

$5.21

In stock

92045

1

$32.24

In stock

92122

ROLLER,CHAIN GUIDE

92122-0007

1

$12.41

In stock

92143

COLLAR

92143-1307

1

$3.14

In stock

92151

BOLT,FLANGED,6X10

92151-1233

1

$1.68

In stock

92152

1

$8.53

In stock

92153

BOLT,6X12

92153-0503

1
Out of stock

92153A

BOLT,FLANGED,10X108

92153-0659

1
Out of stock

92153B

BOLT,FLANGED,10X137

92153-0704

1
Out of stock

92153C

BOLT,FLANGED,8X106

92153-0705

1
Out of stock

92153D

BOLT,FLANGED,8X45

92153-0751

1
Out of stock

92153E

BOLT,FLANGED,10X35

92153-0802

1
Out of stock

92210

NUT,LOCK,FLANGED,10MM

92210-1080

1
Out of stock

92210A

NUT,LOCK,10MM

92210-1184

1
Out of stock
