1981 Kawasaki KX420 Swing Arm Diagram

← All diagrams

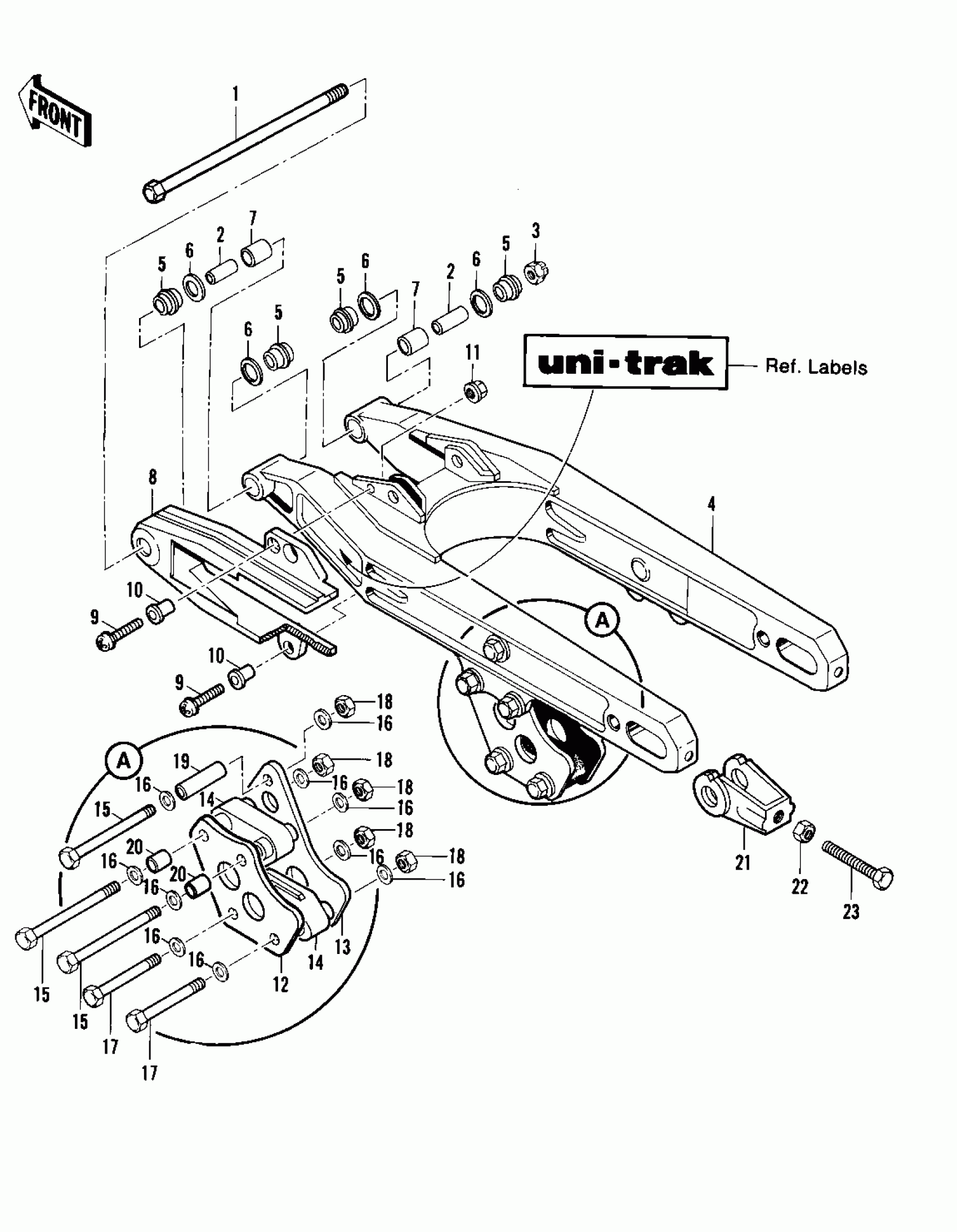

Find the part on the Swing Arm diagram for your 1981 Kawasaki KX420, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1981 Kawasaki KX420 Swing Arm Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

SHAFT-SWING ARM

33032-1020

1

$121.69

In stock

2

SLEEVE,SWING ARM

42036-1031

1
Out of stock

3

NUT-LOCK,14MM

92019-011

1
Out of stock

4

SWING ARM

33001-4003

1

$421.35

In stock

5

CAP,SWING ARM

11012-1099

1

$30.36

In stock

6

SHIM,SWING ARM

92025-1116

1
Out of stock

7

BUSHING

92028-1072

1
Out of stock

8

GUIDE,CHAIN

12053-4001

1
Out of stock

9

SCREW,6X20

92009-1289

1
Out of stock

10

COLLAR,L=5.1

92027-1260

1

$4.93

In stock

11

NUT,FLANGED,6MM

92015-1078

1
Out of stock

12

GUARD,CHAIN

55020-4009

1

$59.85

In stock

13

GUARD,CHAIN

55020-4010

1

$58.07

In stock

14

GUIDE,CHAIN

12053-1015

1
Out of stock

15

BOLT-UPSET

112G0660

1
Out of stock

16

WASHER PLAIN 6MM

411B0600

1
Out of stock

17

BOLT-UPSET

112G0645

1
Out of stock

18

NUT,LOCK,6MM

92019-008

1

$3.36

In stock

19

COLLAR

92027-4016

1

$3.51

In stock

20

COLLAR

92027-4017

1

$1.56

In stock

21

ADJUSTER,CHAIN

33040-4004

1
Out of stock

22

NUT-HEX-SMALL,8MM

318G0800

1
Out of stock

23

BOLT,CHAIN ADJUSTER

92001-1027

1
Out of stock
← Swing Arm Wheels/tires →
