1981 Kawasaki KX420 Front Fork Diagram

← All diagrams

Find the part on the Front Fork diagram for your 1981 Kawasaki KX420, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

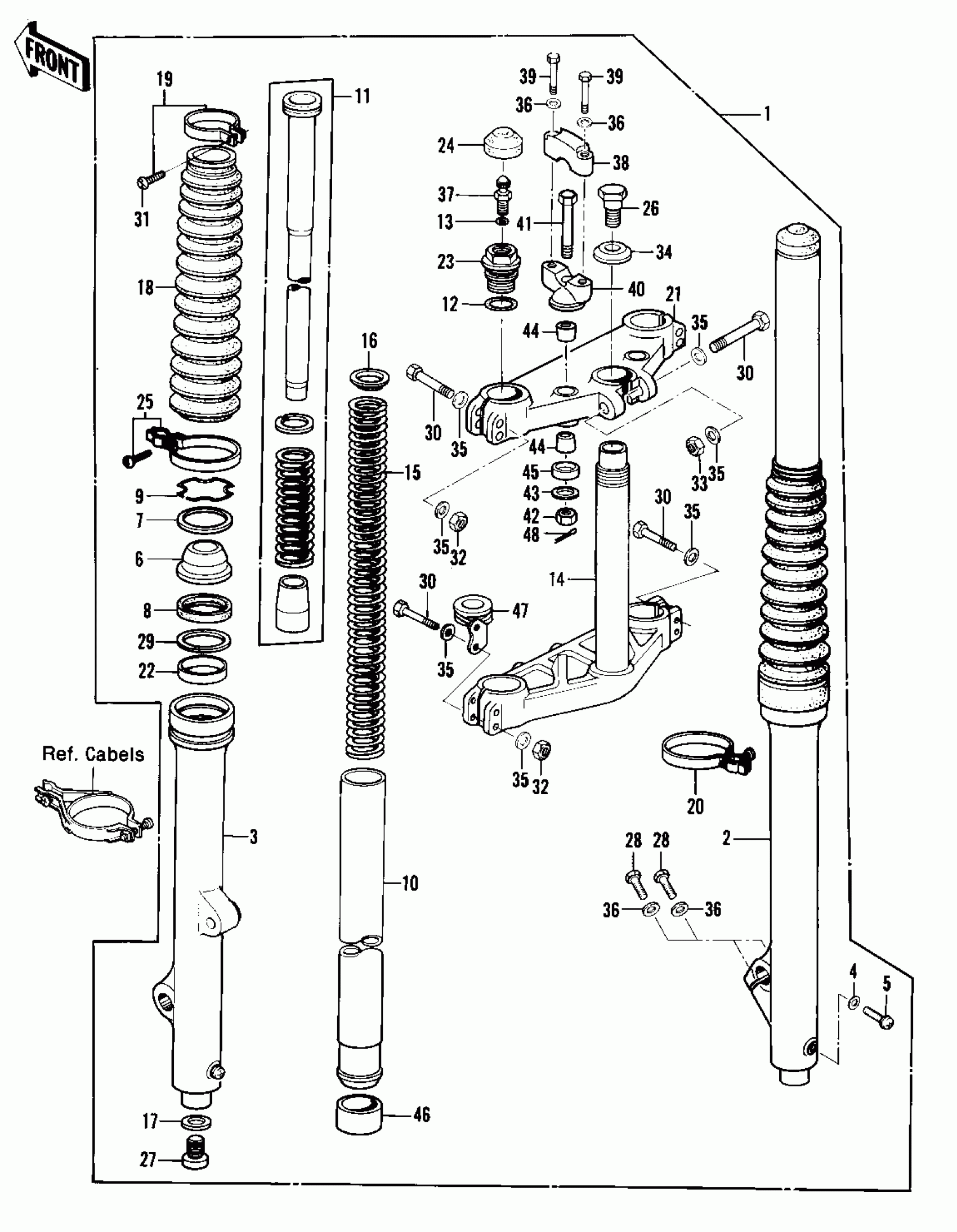

1981 Kawasaki KX420 Front Fork Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

FORK-FRONT

44001-1272

1
Out of stock

2

TUBE,RH,FORK OUTER

44006-1064

1
Out of stock

3

TUBE,LH,FORK OUTER

44005-1064

1
Out of stock

44

GASKET,FORK DRAIN PLUG

44045-002

1
Out of stock

5

SCREW PAN HEAD 4X8

220B0408

1
Out of stock

6

DUST SHIELD,FORK OUTR

92093-1035

1
Out of stock

7

CASE,DUST SHIELD

32099-1013

1
Out of stock

8

OIL SEAL,FORK OUT TUB

92049-1042

1
Out of stock

9

RING-SNAP,FORK

92033-1047

1
Out of stock

10

TUBE-FORK INNER

44013-1053

1
Out of stock

11

CYLINDER-FORK

44022-1052

1
Out of stock

12

RING-O,FORK TOP CAP

92055-1050

1
Out of stock

13

"0" RING,AIR VALVE

92055-1018

1
Out of stock

14

STEM,STEERING

44037-1065

1
Out of stock

15

SPRING,FORK INNER

44026-1042

1
Out of stock

16

GUIDE-FORK SPRING

44028-1003

1
Out of stock

17

GASKET,FORK CYLINDER BOLT

11009-1127

1
Out of stock

18

BOOT,FORK,LIME GREEN

49006-1058

1
Out of stock

19

BAND,BOOT

92072-1046

1
Out of stock

20

CLAMP,BOOT,R.H

92072-1025

1
Out of stock

21

BRACKET-UPPER

44039-1040

1
Out of stock

22

BUSHING-FRONT FORK,OUTER TUBE

44065-1091

1
Out of stock

23

CAP,FORK TOP

44029-1008

1
Out of stock

24

CAP,RUBBER,FORK TOP

44029-1009

1
Out of stock

25

CLAMP,BOOT,L.H

92072-1026

1
Out of stock

26

BOLT,FORK TOP

44041-065

1
Out of stock

27

BOLT,FORK CYLINDER

92001-1309

1
Out of stock

28

BOLT-SMALL-UPSET 8X25

115G0825

1
Out of stock

29

WASHER,FORK OUTER PIPE

92022-1262

1
Out of stock

30

BOLT FLANGED 8X55

92001-1398

1
Out of stock

31

SCREW-PAN-CROS

220B0420

1
Out of stock

32

NUT-HEX,8MM

311G0800

1
Out of stock

33

NUT,LOCK,8MM

92015-1124

1
Out of stock

34

WASHER

44043-052

1
Out of stock

35

WASHER PLAIN 8MM

410B0800

1
Out of stock

36

WASHER SPRING 8MM

461F0800

1
Out of stock

37

VALVE ASSY,AIR

16126-1003

1
Out of stock

38

HOLDER-HANDLE

46012-1014

1

$11.46

In stock

39

BOLT-SMALL-UPSET

115G0835

1
Out of stock

40

HOLDER HANDLE

46012-1012

1

$25.24

In stock

41

BOLT

92001-1436

1
Out of stock

42

NUT

92015-1142

1
Out of stock

43

WASHER,FORK OUTER PIPE

92022-1262

1
Out of stock

44

DAMPER,RUBBER

92075-1307

1
Out of stock

45

COVER-DAMPER RUBBER

11012-1165

1
Out of stock

46

BUSHING,FORK PIPE

92028-1126

1
Out of stock

47

CLAMP,CABLE

92072-1027

1
Out of stock

48

PIN-COTTER,2.0X20

550D2020

1
Out of stock
← Front Fork Handlebar →
