1981 Kawasaki KX420 Front Fork Diagram

← All diagrams

Find the part on the Front Fork diagram for your 1981 Kawasaki KX420, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

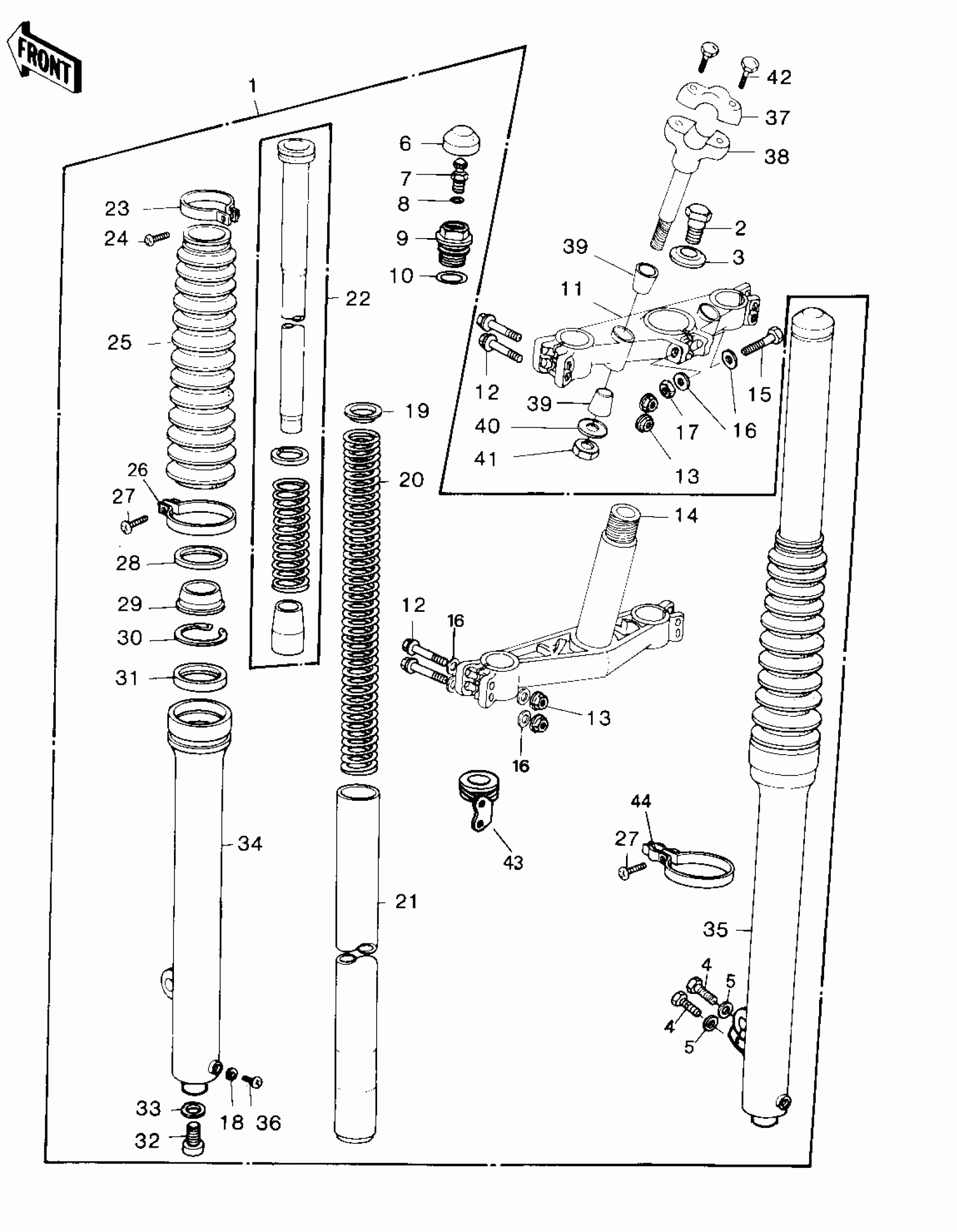

1981 Kawasaki KX420 Front Fork Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

FORK-FRONT

44001-1118

1
Out of stock

2

BOLT,FORK TOP

44041-065

1
Out of stock

3

WASHER

44043-052

1
Out of stock

4

BOLT-SMALL-UPSET 8X25

115G0825

1
Out of stock

5

WASHER SPRING 8MM

461F0800

1
Out of stock

6

CAP,RUBBER,FORK TOP

44029-1009

1
Out of stock

7

VALVE ASSY,AIR

16126-1003

1
Out of stock

8

"0" RING,AIR VALVE

92055-1018

1
Out of stock

9

CAP,FORK TOP

44029-1008

1
Out of stock

10

RING-O,FORK TOP CAP

92055-1050

1
Out of stock

11

HEAD,STEERING STEM

44039-4004

1
Out of stock

12

BOLT FLANGED 8X55

92001-1398

1
Out of stock

13

NUT-HEX,8MM

311G0800

1
Out of stock

14

STEM,STEERING

44037-1048

1
Out of stock

15

NUT,LOCK,8MM

92015-1124

1
Out of stock

16

WASHER PLAIN 8MM

410B0800

1
Out of stock

17

NUT,LOCK,8MM

92015-1124

1
Out of stock

18

GASKET,FORK DRAIN PLUG

44045-002

1
Out of stock

19

GUIDE-FORK SPRING

44028-1003

1
Out of stock

20

SPRING,FORK INNER

44026-1042

1
Out of stock

21

TUBE,FORK INNER

44013-1028

1
Out of stock

22

CYLINDER-FORK

44022-1032

1
Out of stock

23

BAND,BOOT

92072-1008

1
Out of stock

24

SCREW-PAN-CROS

220B0420

1
Out of stock

25

BOOT,FORK,L.GREEN

49006-1027

1
Out of stock

26

CLAMP,BOOT,L.H

92072-1026

1
Out of stock

27

SCREW-PAN-CROS,6X20,WHITE

220B0620

1
Out of stock

28

CASE,DUST SHIELD

32099-1013

1
Out of stock

29

DUST SHIELD,FORK OUTR

92093-1035

1
Out of stock

30

RING-SNAP,FORK

92033-1047

1
Out of stock

31

OIL SEAL,FORK OUT TUB

92049-1042

1
Out of stock

32

BOLT,FORK CYLINDER

92001-1309

1
Out of stock

33

GASKET,FORK CYLINDER BOLT

11009-1127

1
Out of stock

34

TUBE,LH,FORK OUTER

44005-1037

1
Out of stock

35

TUBE,RH,FORK OUTER

44006-1037

1
Out of stock

36

SCREW PAN HEAD 4X8

220B0408

1
Out of stock

37

HOLDER-HANDLE,UPP

46012-008

1

$34.49

In stock

38

HOLDER-HANDLE,LWR

46012-010

1

$31.36

In stock

39

DAMPER RUBBER,HANDLE

92075-275

1
Out of stock

40

WASHER-HANDLEBAR FIT

92022-196

1
Out of stock

41

NUT,LOCK,10MM

92019-021

1
Out of stock

42

BOLT 8X38

92001-1405

1
Out of stock

43

CLAMP,CABLE

92072-1027

1
Out of stock

44

CLAMP,BOOT,R.H

92072-1025

1
Out of stock
