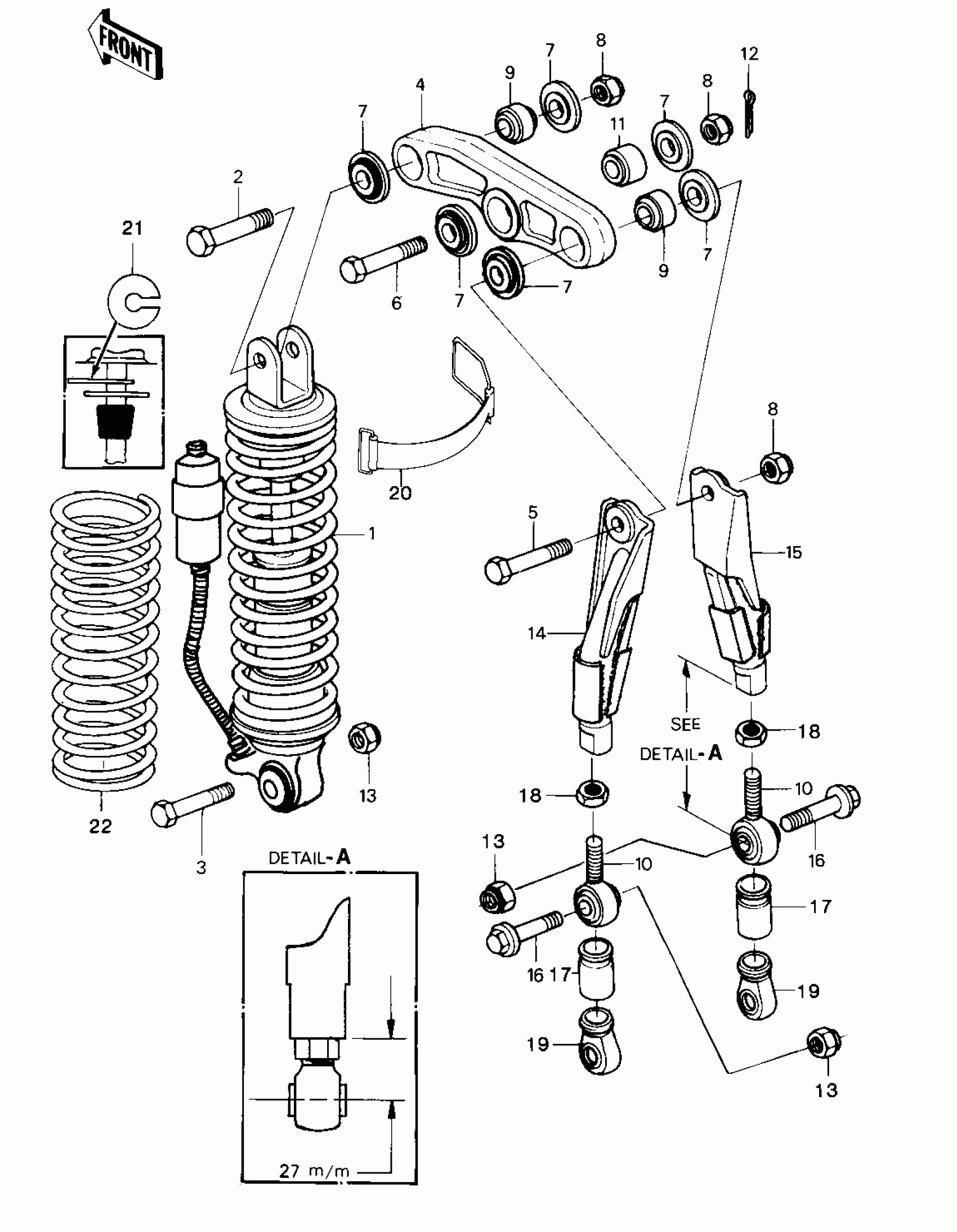

Kawasaki KX420 REAR SUSPENSION/SHOCK ABSORBER (KX420-A1 Diagram

#

Description
Price

1

SHOCK ABSBR RR

45014-1050

$973.69

2

BOLT,HEX HEAD,14X50

92001-1317

Unavailable

3

BOLT,HEX HEAD,12X55

113P1255A

Unavailable

4

ARM-SUSP

39007-1006

$83.08

5

BOLT,HEX HEAD,14X54

92001-1295

Unavailable

6

BOLT,HEX HEAD,14X60

92001-1335

Unavailable

7

CAP,SUSPENSION ARM

11012-1117

Unavailable

8

NUT-LOCK,14MM

92019-011

Unavailable

8

NUT-LOCK,14MM

92019-011

Unavailable

9

JOINT,BALL,SUSPENSIO

59266-1001

$172.33

10

JOINT,BALL,SUSPENSIO

59266-1002

Unavailable

11

BUSHING,SUSPENSION A

92028-1087

Unavailable

12

PIN-COTTER,2.5X25

550D2525

Unavailable

13

NUT-LOCK,12MM

92019-009

$7.20

14

ROD,UNI-TRACK,LH

46102-1024

$97.69

15

ROD,UNI-TRACK,RH

46102-1025

$97.69

16

BOLT,HEX HEAD,12X48

92001-1297

Unavailable

17

BOOT,BALL JOINT

49006-1045

Unavailable

18

NUT-HEX-FINE

315B1200

Unavailable

19

BOOT,BALL JOINT

49006-1046

Unavailable

20

BAND,FUEL TANK

92072-076

Unavailable

21

SPACER

92026-4006

$1.17

22

SPRING, RR SHOCK STD

92081-1242

$215.49

22

SPRING,RR SHOCK,SOFTR

92081-1293

$241.29

22

SPRING,RR SHOCK,HARDR

92081-1294

$241.29
