1976 Kawasaki KX400-A2 Kickstarter Mechanism Diagram

← All diagrams

Find the part on the Kickstarter Mechanism diagram for your 1976 Kawasaki KX400-A2, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

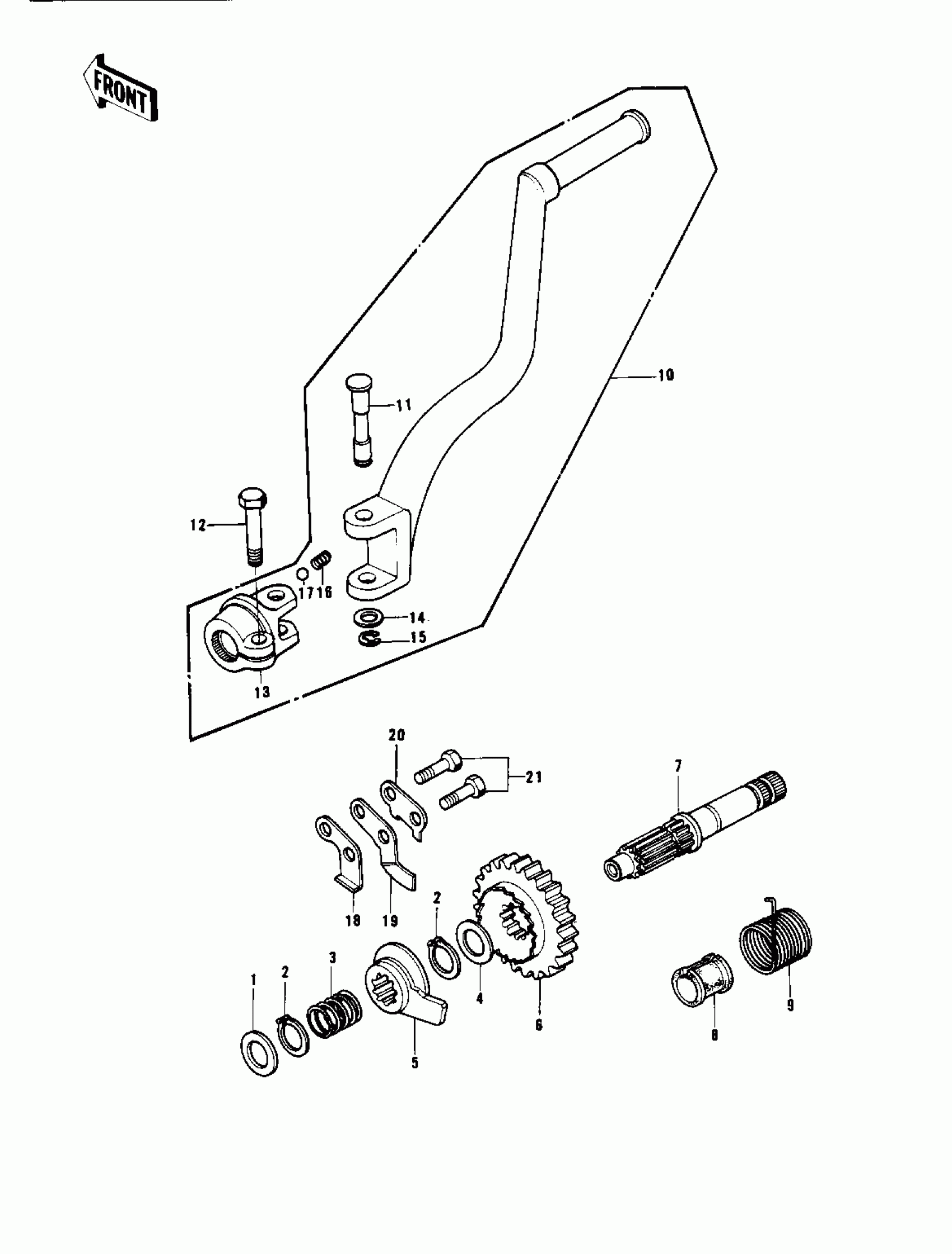

1976 Kawasaki KX400-A2 Kickstarter Mechanism Diagram

#

Description
Price
Status
Order Qty

1

WASHER,20.5X25.5X0.5

92022-252

Out of stock

2

RING-SNAP,24MM

92033-026

Out of stock

3

SPRING

92081-097

Out of stock

4

WASHER,25.3X30X0.5

92022-159

Out of stock

5

RATCHET

13078-007

Out of stock

6

GEAR,KICKSTARTER

13068-029

Out of stock

7

SHAFT,KICKSTARTER

13066-031

Out of stock

8

GUIDE,KICKSTARTER

13070-007

Out of stock

9

SPRING,KICKSTARTER

92082-003

Out of stock

10

PEDAL ASSY,KICK

13058-060

Out of stock

11

PIN,KICK PEDAL

92043-119

Out of stock

12

BOLT-HEX HEAD,10MM

92001-085

Out of stock

12

BOLT,HEX HEAD,10X25

113G1025

Out of stock

13

BOSS,KICK PEDAL

13061-026

Out of stock

14

WASHER PLAIN 10MM

410B1000

Out of stock

15

CIRCLIP,7MM

482K7000

Out of stock

16

SPRING,KICK PEDAL

92081-020

Out of stock

17

BALL-STEEL,1/4

600A0800

Out of stock

18

STOPPER,KICKSTARTER

13072-014

Out of stock

19

GUIDE-KICK

13206-1003

Out of stock

20

WASHER,LOCK

92031-008

Out of stock

21

BOLT-UPSET,6X16

112G0616

Out of stock
