1976 Kawasaki KX400-A2 Crankcase Diagram

← All diagrams

Find the part on the Crankcase diagram for your 1976 Kawasaki KX400-A2, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

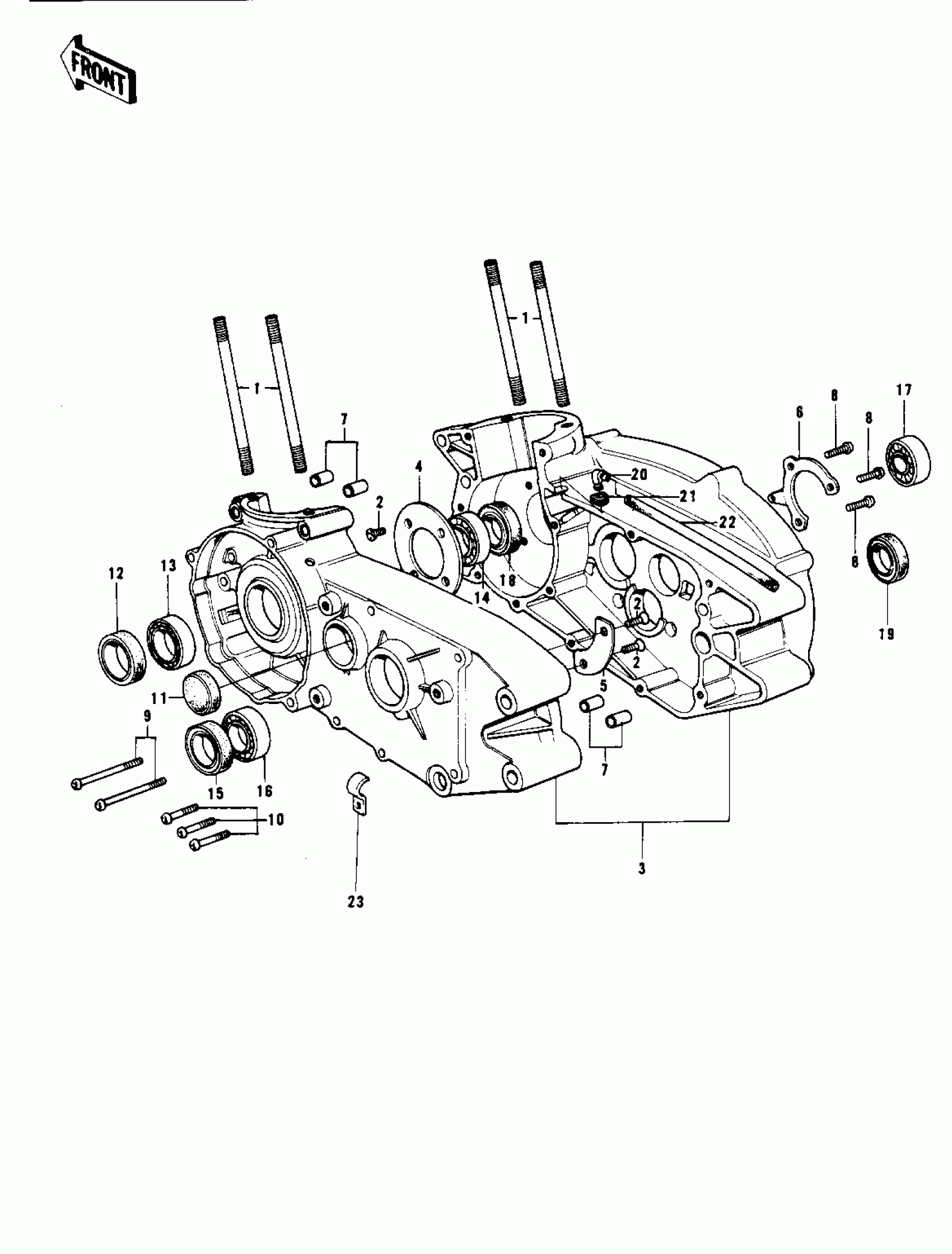

1976 Kawasaki KX400-A2 Crankcase Diagram

#

Description
Price
Status
Order Qty

1

STUD 10X90

172G1090

$8.49

In stock

2

SCREW-CSK-CROS,6X14

221B0614

Out of stock

3

CRANKCASE SET

14001-072

Out of stock

4

PLATE

14014-026

Out of stock

5

PLATE

14014-027

Out of stock

6

HOLDER,BEARING

14014-032

Out of stock

7

PIN,DOWEL,10X14

92043-1037

$0.76

In stock

8

$1.32

In stock

9

$1.19

In stock

10

SCREW PAN HEAD 6X70

220B0670

Out of stock

11

CAP,L.H.CRANKCASE

92073-024

Out of stock

12

SEAL-OIL

92050-057

Out of stock

13

BEARING-BALL,#6306

92045-037

$43.48

In stock

14

BEARING-BALL

92045-016

Out of stock

15

SEAL-OIL,TB3040

92050-033

Out of stock

16

$15.38

In stock

17

$37.55

In stock

18

OIL SEAL,TB35508

653B355008

Out of stock

19

BUSHING,26X35X14

92028-131

$34.76

In stock

20

BREATHER ASSY

14069-1001

$22.77

In stock

21

GROMMET,BREATHER

92071-042

$3.39

In stock

22

PIPE-BREATHER

92059-061

Out of stock

23

CLAMP CABLE

92037-016

Out of stock
