1976 Kawasaki KX400-A2 Crankshaft/piston Diagram

← All diagrams

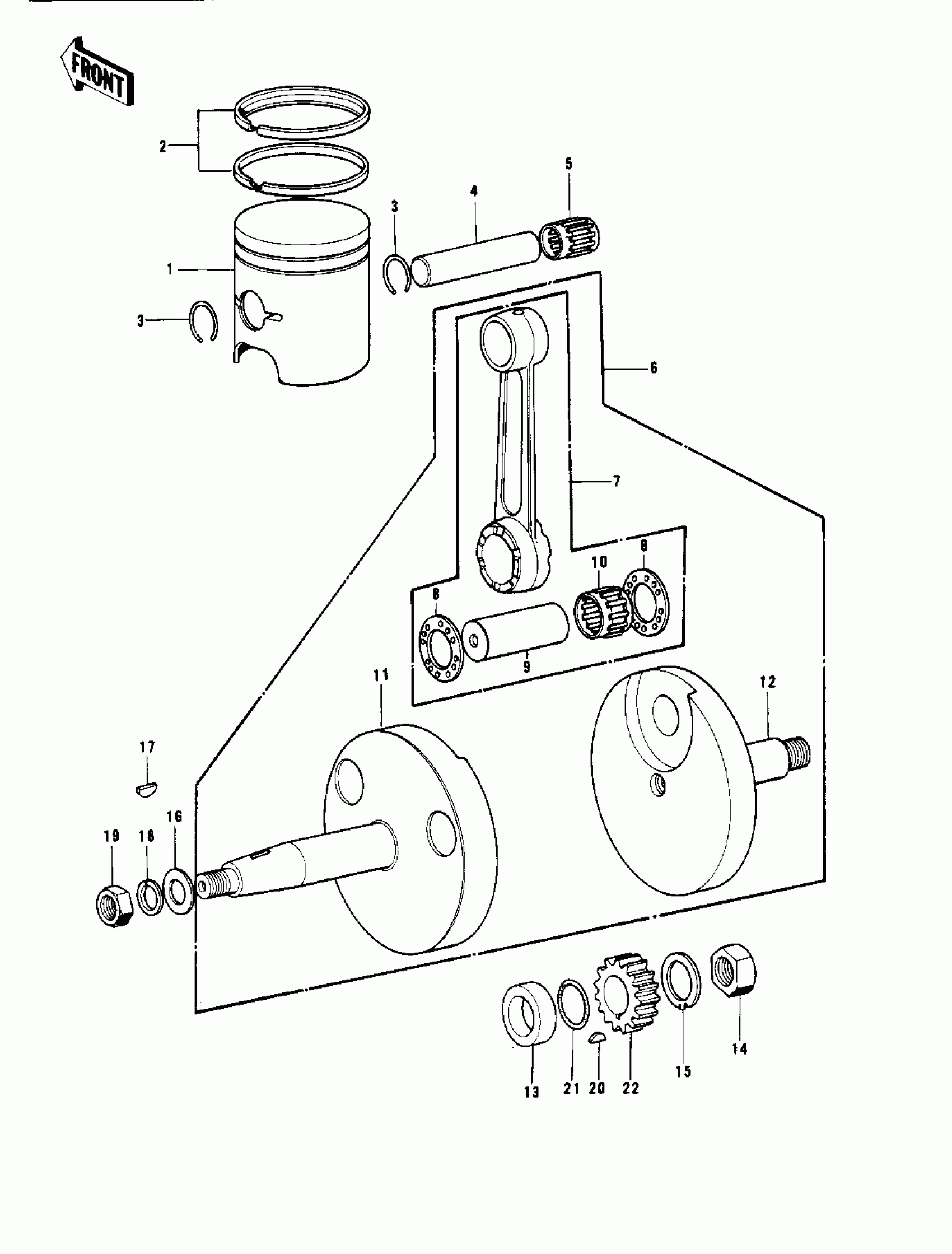

Find the part on the Crankshaft/piston diagram for your 1976 Kawasaki KX400-A2, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1976 Kawasaki KX400-A2 Crankshaft/piston Diagram

#

Description
Price
Status
Order Qty

1

PISTON,STD

13001-076

Out of stock

1

PISTON,0.020" O/S

13029-076

Out of stock

2

RING SET,STD

13008-057

Out of stock

2

RING SET,0.020" O/S

13025-060

Out of stock

3

CIRCRIP,PISTON PIN

92036-024

Out of stock

4

PIN-PISTON

13002-030

Out of stock

5

BEARING-SMALL END,KTV192425

13033-1055

Out of stock

6

CRANKSHAFT ASSY

13036-042

Out of stock

7

CONNECTING ROD SET

13044-027

Out of stock

8

WASHER,CONROD SIDE

92026-093

Out of stock

9

PIN,CRANK

13035-032

Out of stock

10

BEARING,BIG END

13034-035

Out of stock

11

CRANKSHAFT,L.H

13037-054

Out of stock

12

CRANKSHAFT,R.H

13038-050

Out of stock

13

COLLAR,CRANKSHAFT

92027-190

Out of stock

14

NUT,18MM

92015-019

Out of stock

15

WASHER LOCK 18MM

92024-015

Out of stock

16

WASHER-PLAIN,14MM

92022-172

Out of stock

17

KEY,WOODRUFF

92038-001

Out of stock

18

WASHER SPRING 14MM

461F1400

Out of stock

19

NUT 14MM

92015-043

Out of stock

20

WOODRUFF KEY

510A5100

Out of stock

21

"0" RING,22MM

670B3022

Out of stock

22

GEAR,PRIMART

13121-024

Out of stock
