1976 Kawasaki KX400-A2 Engine Covers Diagram

← All diagrams

Find the part on the Engine Covers diagram for your 1976 Kawasaki KX400-A2, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

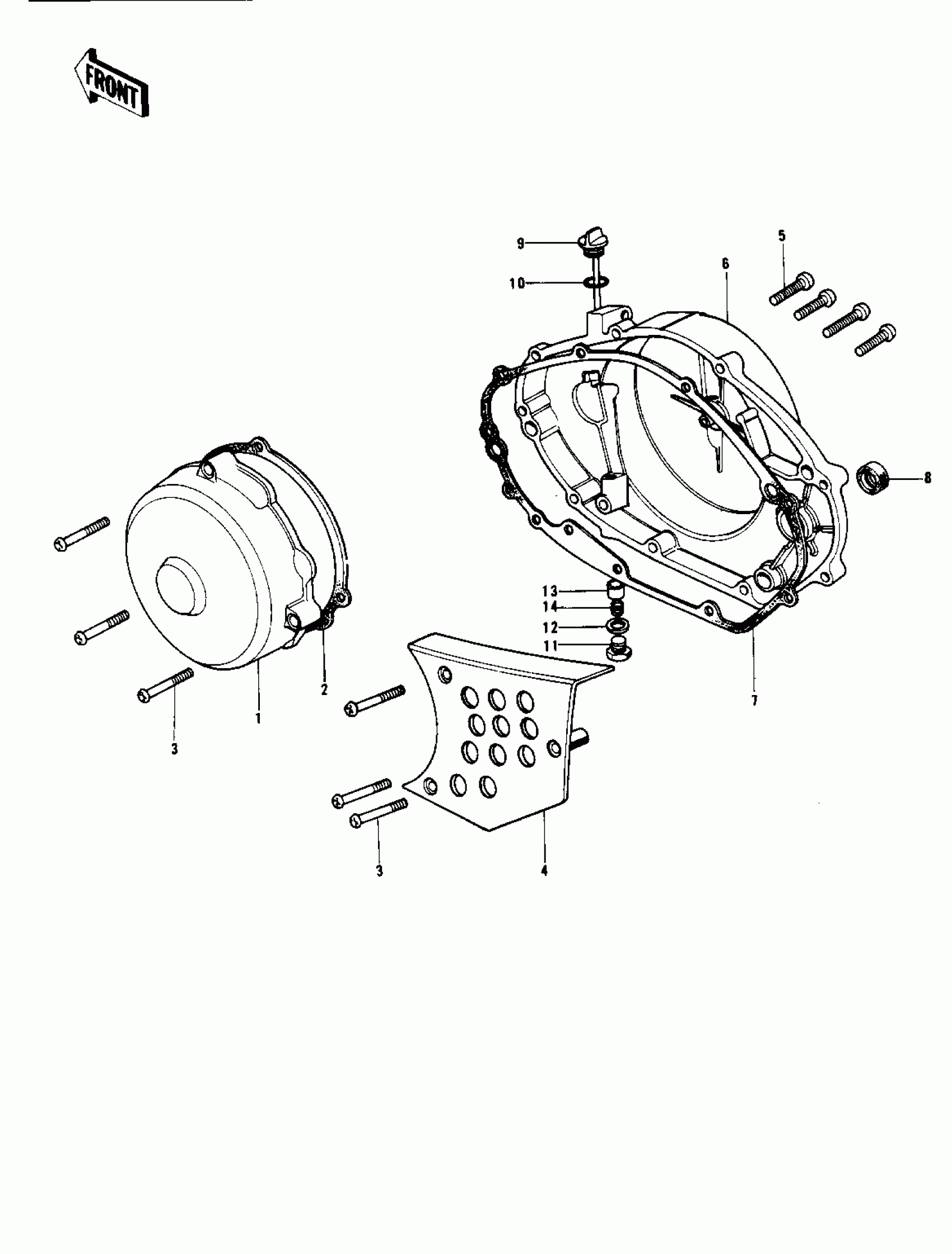

1976 Kawasaki KX400-A2 Engine Covers Diagram

#

Description
Price
Status
Order Qty

1

COVER,L.H ENGINE

14031-065

Out of stock

2

GASKET,L.H ENG COVER

14045-016

Out of stock

3

SCREW PAN HEAD 6X40

220B0640

Out of stock

4

COVER,FRONT CHAIN

14026-017

Out of stock

5

SCREW PAN HEAD 6X30

220B0630

Out of stock

6

COVER,R.H ENGINE

14032-087

Out of stock

7

$15.90

In stock

8

SEAL-OIL,SB20285

92049-012

Out of stock

9

PLUG,OIL FILLER

16115-019

$14.29

In stock

10

O RING,20MM

670B2020

$1.12

In stock

11

PLUG,OIL DRAIN

92067-014

$7.25

In stock

12

GASKET,DRAIN PLUG

92065-088

Out of stock

13

BUSHING

92028-133

$6.44

In stock

14

SPRING

92081-118

$2.41

In stock
